24 ¾"
Thank you for choosing Grain Wood Furniture, it is an honor to be in your home!
If you have any questions, feedback, or need replacement parts please contact us at:
grainwoodfurniture.com/help or
Greenport Collection

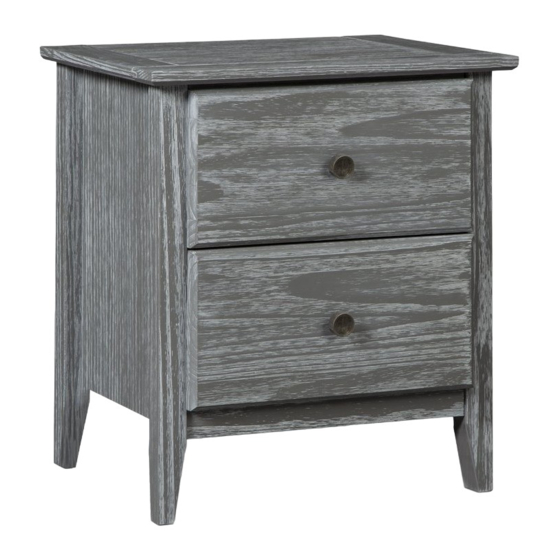

2-Drawer Nightstand
REV - 07/2021
Assembly Instructions
support@grainwoodfurniture.com
Made in Brazil
1-person assembly
Model #
Finish
GP0403
Brushed White
Brushed Driftwood
GP0416
Brushed Grey
GP0440
PH #2
page 1/10
Advertisement
Related Manuals for GrainWood GP0403
Summary of Contents for GrainWood GP0403
- Page 1 Assembly Instructions 1-person assembly 24 ¾" PH #2 Model # Finish GP0403 Brushed White Brushed Driftwood GP0416 Brushed Grey GP0440 Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you have any questions, feedback, or need replacement parts please contact us at: grainwoodfurniture.com/help or...
- Page 2 PLEASE READ BELOW BEFORE BEGINNING ASSEMBLY Enlist help from a friend or family member as most items require two Ÿ people for proper assembly. Choose a spacious, open area near where the piece will be located once Ÿ assembled. It is easier to move parts than to relocate the furniture after it is fully assembled.
-
Page 3: Hardware List
HARDWARE LIST 27 + 2 4,0x30 6 + 1 3,5x14 2 + 1 M4x25 16 + 1 6,0x10 24 + 2 8,0x25 RIGHT Side 330mm - 13" Drawer RIGHT 330mm - 13" LEFT Side 330mm - 13" Drawer LEFT 330mm - 13" 10x10 ATTENTION Before starting assembly... - Page 4 Qty. Description Part # Right side Left side Upper crosspiece Lower crosspiece Rear crosspiece Back panel Drawer front Drawer right side Drawer left side Drawer bottom Drawer back Hardware page 4/10...
- Page 5 Tip : Use a hammer in case dowels are hard to install by hand. 8,0x25 RIGHT LEFT Side 2 E14 Side 330mm - 13" 330mm - 13" 6,0x10 page 5/10...
- Page 6 Attention: There are no predrilled holes for the A1 screws on parts 02 and 03. 4,0x30 Attention: There are no predrilled holes for the A1 screws on part 01. 4,0x30 page 6/10...
- Page 7 Make sure back panels are perfectly aligned with side panels and top and there are NO gaps. û ü ü 10x10 û ü 10x10 page 7/10...
- Page 8 10x10 Attention: There are no predrilled holes for the A4 screws on parts 06 and 07. 3,5x14 page 8/10...
- Page 9 Attention: There are no predrilled holes for the A4 screws on parts 02 and 03. 3,5x14 Attention: There are no predrilled holes for the A1 screws on 4,0x30 part 08. page 9/10...
- Page 10 Flip the assembled drawer upside down to install glides. 6,0x10 Drawer RIGHT 330mm - 13" Drawer LEFT 330mm - 13" M4x25 page 10/10...
