24"
Thank you for choosing Grain Wood Furniture, it is an honor to be in your home!
If you have any questions, feedback, or need replacement parts please contact us at:
grainwoodfurniture.com/help or
Greenport Collection

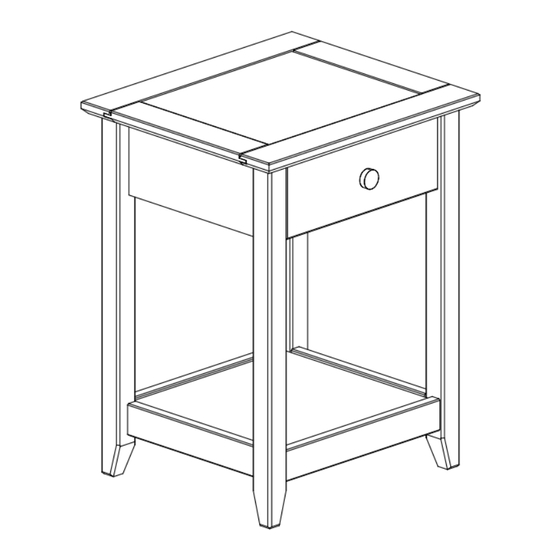

End Table
REV - 05/2024
Assembly Instructions
18"
support@grainwoodfurniture.com
16 ¼"
Made in Brazil
1-person assembly
Model #
Finish
GP2403
Brushed White
Brushed Walnut
GP2405
Brushed Driftwood
GP2416
PH #2
page 1/9
Advertisement
Related Manuals for GrainWood Greenport GP2403
Summary of Contents for GrainWood Greenport GP2403
- Page 1 Assembly Instructions 1-person assembly 16 ¼" 18" PH #2 24" Model # Finish GP2403 Brushed White Brushed Walnut GP2405 Brushed Driftwood GP2416 Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you have any questions, feedback, or need replacement parts please contact us at: grainwoodfurniture.com/help or support@grainwoodfurniture.com Greenport Collection...
- Page 2 PLEASE READ BELOW BEFORE BEGINNING ASSEMBLY Enlist help from a friend or family member as most items require two Ÿ people for proper assembly. Choose a spacious, open area near where the piece will be located once Ÿ assembled. It is easier to move parts than to relocate the furniture after it is fully assembled.
-
Page 3: Hardware List
HARDWARE LIST 24 + 2 4,0x30 3,5x16 M4x25 22 + 2 8,0x25 20x20 ATTENTION Before starting assembly please verify the hardware set is complete. For missing hardware please contact us at grainwoodfurniture.com/help WARNING: CHOKING HAZARD Small parts, not for children. To be assembled by an adult. - Page 4 Qty. Description Part # Right side Left side Base Drawer glide Back panel Drawer front Drawer right side Drawer Left side Drawer bottom Drawer back Hardware page 4/9...
- Page 5 Tip: Use a hammer in case dowels are hard to install by hand. 8,0x25 page 5/9...
- Page 6 3,5x16 Attention: There are no predrilled holes for the A1 screws on part 03. 4,0x30 page 6/9...
- Page 7 Attention: There are no predrilled holes for the A1 screws on part 02. 4,0x30 Attention: There are no predrilled holes for the A1 screws on part 01. 4,0x30 page 7/9...
- Page 8 Attention: There are no predrilled holes for the A1 screws on parts 02 and 03. 4,0x30 A1 A1 Attention: There are no predrilled holes for the A1 screws on part 08. 4,0x30 page 8/9...
- Page 9 M4x25 page 9/9...
