Kozyard Apollo Assembly Manual

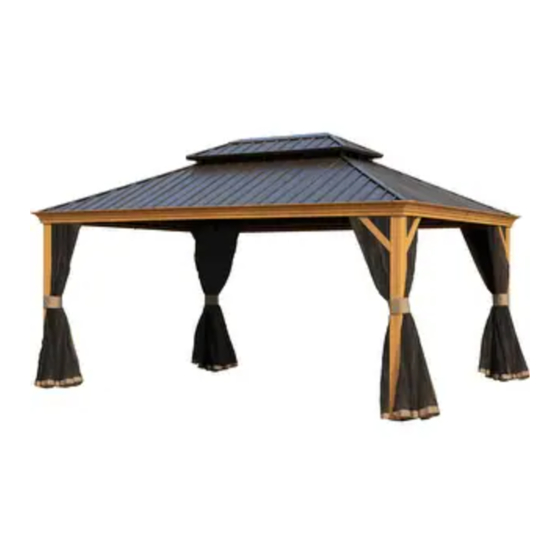

12x14 hardtop gazebo with double roof
Hide thumbs Also See for Apollo:

Advertisement

Quick Links

Download this manual

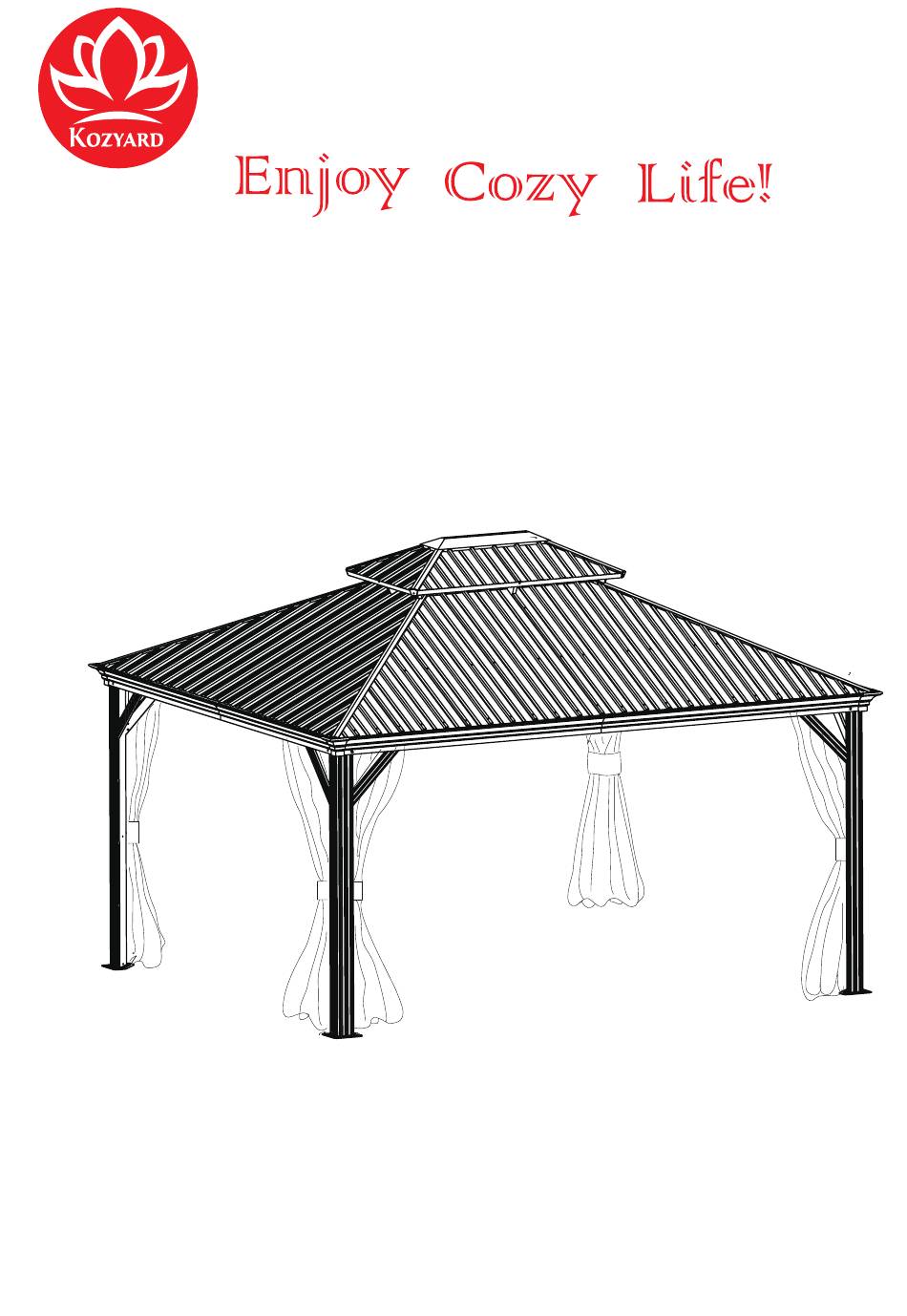

12'x14' Apollo Hardtop Gazebo
With Double Roof
Assembly Manual
Kozyard LLC Products
www.kozyard.com
©
Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved.
Version:20231006

Advertisement

loading
Need help?

Need help?

Do you have a question about the Apollo and is the answer not in the manual?

Questions and answers

Related Manuals for Kozyard Apollo

Summary of Contents for Kozyard Apollo

  • Page 1 12’x14’ Apollo Hardtop Gazebo With Double Roof Assembly Manual Kozyard LLC Products www.kozyard.com © Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved. Version:20231006...

  • Page 2: Warnings And Cautions

    Warnings and Cautions • Please read and follow this assembly and operation guide to reduce the risk of personal injury and damage to your gazebo. • Do not discard any of the packaging until you have checked that you have all the parts in place. The maximum weight capacity of this gazebo roof is 2500 pounds.
  • Page 3 Attn: Prior to assembly, verify all parts and and pieces are included to ensure an efficient installation process. BOX 1 B61 x2 G x4 B62 x2 H1 x4 C61 x2 H2 x1 C62 x2 H3 x1 D71 x2 R x8 D72 x2 S x128+3 E71 x2...
  • Page 4 BOX 2 A x4 ITEM DESCRIPTION R2 x8 Pole Corner bracket #8 x16+2 Screws 16+2 M5x15 BOX 3 B6 x2 7 x36+2 9 x24+2 C6 x2 #10 x4+1 D7 x2 #11 x12+1 E7 x2 #12 x12+2 P12 x2 Q14 x4 Allen key H x4 Wrench...
  • Page 5 BOX 4 K4 x1 Y3 x2 K14 x1 Y4 x2 F x4 ITEM DESCRIPTION Inside Roof Connector Outside Roof Connector P2 x2 Union Bar Finishing Bar Finishing Bar Mosquito Net T2 x2 Mosquito Net BOX 5 ITEM DESCRIPTION Roof Panel Roof Panel Roof Panel Roof Panel...
  • Page 6 BOX 5 , continued from the previous page X47 x1 X48 x1 X41 x1 X42 x1 X43 x1 X44 x1 X45 x1 X46 x1 BOX 6 ITEM DESCRIPTION Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel V11 x1 V12 x1 Roof Panel...

  • Page 7: Parts Required

    Step 1: Set up Poles Parts Required: 1. Set up Poles (Part A) with Bracket (Part R2) and Stand Plates (Part L) using #8 and #1 screws as shown in diagram. 8 x16 1 x12 (Inclined Plane) L x4 A x4 Reference for anchoring gazebo: Only anchor after completing assembly.
  • Page 8 Parts Required: C6 x2 B6 x2 F x4 E7 x2 D7 x2 Step 2: Connect the Beams 1. Connect Beams (Part C6, B6) into one beam using Union Bar (Part F) with #1 screws as shown in diagram. Short Beam Overall: 2.
  • Page 9 Parts Required: B61 x2 C61 x2 B62 x2 C62 x2 E71 x2 D71 x2 D72 x2 E72 x2 STEP 3: Connect Joint Bars and Tracks with Beams 1. Connect Joint Bars (part C61,E71) and Tracks (Part C62 ,E72) to Beams (Part C6 ,E7) using #1 screws as shown in diagram.
  • Page 10 Parts Required: STEP 4: Set up Poles and Beams Use #3 screws, then #2 screws to connect Poles and Beams together as shown in diagram. ① Tip: Place parts on carpet or rug to avoid scratches during assembly. ② ② ①...
  • Page 11 Parts Required: J1 x4 J2 x4 STEP 5: Connect Solidifying Bars with Beams and Poles Affix the frame with Corner Solidifying Bars (Parts J1, J2) using #1 screws as shown in diagram. Tip: Measure (DIAGONALLY) from posts to posts to assure alignment so all materials fit as planned.
  • Page 12 Parts Required: H x4 G x4 STEP 6: Cover the connections 1. Finish connecting beams using Corner 2. Affix middle beams using Joint Covers (Part G) and #9 screws as Covers (Part H) with #9 screws as shown in diagram. shown in diagram.
  • Page 13 Parts Required: H2 x1 STEP 7: Seal seams 1. Seal seams with Silicone Rubber after Step 6 to prevent water leakage. 2. There is no need to seal the cap screws of the roof panel with the silicone rubber if the screws (attached through Spacer part S) are properly fixed on roof panels.
  • Page 14 Parts Required: #4 x60 #1 x4 H1 x4 STEP 8: Install Hooks After finishing Hooks (Part #4) into tracks, then put Joint Cover (Part H1) to lock them. ② ① Note the amount of hooks for each slot as noted below: ①...
  • Page 15 Parts Required: M1 x4 #12 x12 M2 x4 #1 x12 STEP 9: Connect Corner Roof Bar “M3” Connect the Short Corner Roof Bar (Part M1) with the Long Corner Roof Bar (Part M2) using screws #1 and washer #12. Tip: The combination will be called “Part M3”...
  • Page 16 Parts Required: #1 x12 K4 x1 M3 x4 Step 10: Set up Corner Roof Bar Connect the inside Roof Connector (Part K4) Attach Corner Roof Bar (Part M3) to with the Corner Roof Bar (Part M3) Poles (Part A ) using #1 screws as shown using #1 screws.
  • Page 17 Parts Required: #1 x12 N1 x4 Step 11: Set up Roof Bar Connect Roof Bar (Part N1) to Inside Roof Attach Roof Bar (Part N1) to Beams using Connector (Part K4)using #1 screws as #1 screws as shown in diagram. shown in diagram.
  • Page 18 Parts Required: #1 x4 P2 x2 Q4 x2 R x4 Step 12: Set up Finishing Bar Attach Finishing Bar (Part P2, Q4) with Finish End (Part R) using #1 screws to Corner Roof Bar (Part M3) as shown in diagram. Upward View 12’x14’...
  • Page 19 Parts Required: H3 x1 STEP 13: Snap Brackets Snap Bracket (Part Z, Z1, Z2, Z3, Z4) to roof panel edges as shown in diagram. (with snaps facing upwards) Tip: 1. Wearing protective gloves is recommended. 2. In order to avoid Z-Clips (plastic brackets) from sliding off prior to assembly, place double-sided adhesive tape (Part H3) to the down side (bottom) edge of the roof panels where the brackets (Part Z, Z1, Z2, Z3, Z4) are supposed to attach.
  • Page 20 Parts Required: T2 x2 T4 x2 R x4 STEP 14: Assemble Roof Panels 1. Insert Roof Panels (Part v11,v12,v43,v44,v45,v46) to upper roof as shown in diagram. 2. Attach Finishing Bars (Part T2,T4) to upper roof with Finish End (Part R) using #1 screws as shown in diagram.
  • Page 21 Parts Required: K14 x1 #1 x2 STEP 15: Connect Outside Roof Connecto Connect Outside Roof Connector (Part K14) to Inside Roof (Part K4) using #1 screws as shown in diagram. Upward View 12’x14’ assembly manual page 19...
  • Page 22 Parts Required: U1 x4 #1 x24 U6 x4 U4 x4 U3 x4 Step 16: Connect Solidifying Bars Attach Solidifying Bars ( Part U1, U6) to roof bar or corner roof bar using Iron Angle (Part U3, U4) and screws #1 as shown in diagram. ①...
  • Page 23 Parts Required: H3 x1 W11 x2 W12 x2 W13 x2 W14 x2 W15 x2 W16 x2 W17 x2 W18 x2 Step 17: Snap Bracke Snap Bracket (Part Z) to roof panel edges as shown in diagram.(with snaps facing upwards) Tip: 1.
  • Page 24 Parts Required: H3 x1 X47 x2 X48 x2 X41 x2 X42 x2 X43 x2 X44 x2 X45 x2 X46 x2 Step 18: Snap Bracke Snap Bracket (Part Z) to roof panel edges as shown in diagram.(with snaps facing upwards) Tip: 1.
  • Page 25 Overall roof assembly: Please put the panels on the frame and assemble them from the centerline (Part N1) to the left and right. Tip: Wearing protective gloves is Connect roof recommended. as below: Tip: For fastening roof panels (Part W14 and Part X44) easily, please glue Part S onto Panel W14 and Part X44 by adhesive tape in advance to avoid Part S sliding down during assembly..
  • Page 26 Parts Required: #5 x80 #6 x8 #7 x36 #10 x4 S x128 M6x28 M6x45 M6x50 M6x25 Step 19: Affix roof panels using screws and Spacers (Part S) as shown in diagram. ATTENTION – VERY IMPORTANT! Align all roof panels and screws LOOSELY (DO NOT TIGHTEN ANY SCREWS) until all the roof panels are aligned accordingly, THEN TIGHTEN all screws to lock the...
  • Page 27 Parts Required: P12 x2 #1 x4 Q14 x4 STEP 20: Assemble Net Frame Attach Net Frames (Part P12,Q14) to Finishing Bars (Part P2, Q4) using #1 & #11 screws as shown in diagram. Q 14 Upward View Perspective: Q 14 Q 14 Tips: The perspective drawing is for demonstrating how to better...
  • Page 28 Solid Sidewalls on outer rails as shown in diagram. Y3 or Y4 10 11 The privacy curtain is not included, but available for separate purchase. Visit kozyard.com and search for KZAHG1214SW to buy it. 15th 15th S3 x2 S4 x2 12’X14’...

  • Page 29: Care And Warranty

    Parts Required: Step 22: When closing the Mosquito Net, refer to steps below to align with poles as shown in diagram. ① Y3,Y4 ④ ③ ② Y3,Y4 Y3,Y4 Y3,Y4 Care and Warranty • Clean the frame components and fabric with a mild soap solution, then rinse thoroughly. Avoid using bleach, acid, or any other solvents on either the fabric or frame components.
  • Page 30 Don't hesitate to contact us directly if you are missing parts or need a replacement. Kozyard LLC © Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved.
