Kozyard Alexander Assembly Manual

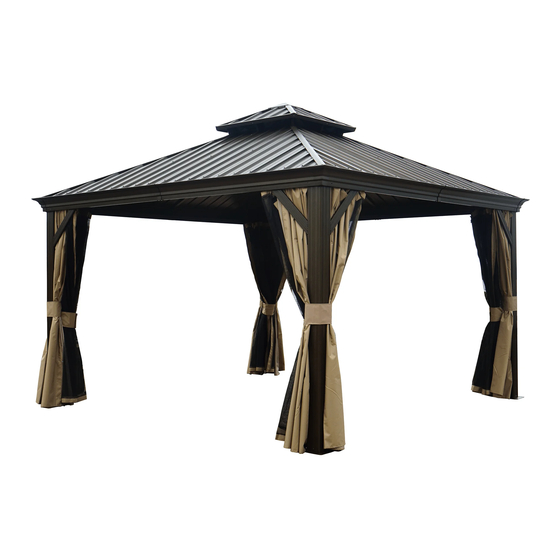

12'x16' hardtop gazebo with double roof
Hide thumbs Also See for Alexander:

Advertisement

Quick Links

Download this manual
12'x16' Alexander hardtop gazebo
with double roof
Assembly Manual
Kozyard LLC Products
©
Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Alexander and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kozyard Alexander

Summary of Contents for Kozyard Alexander

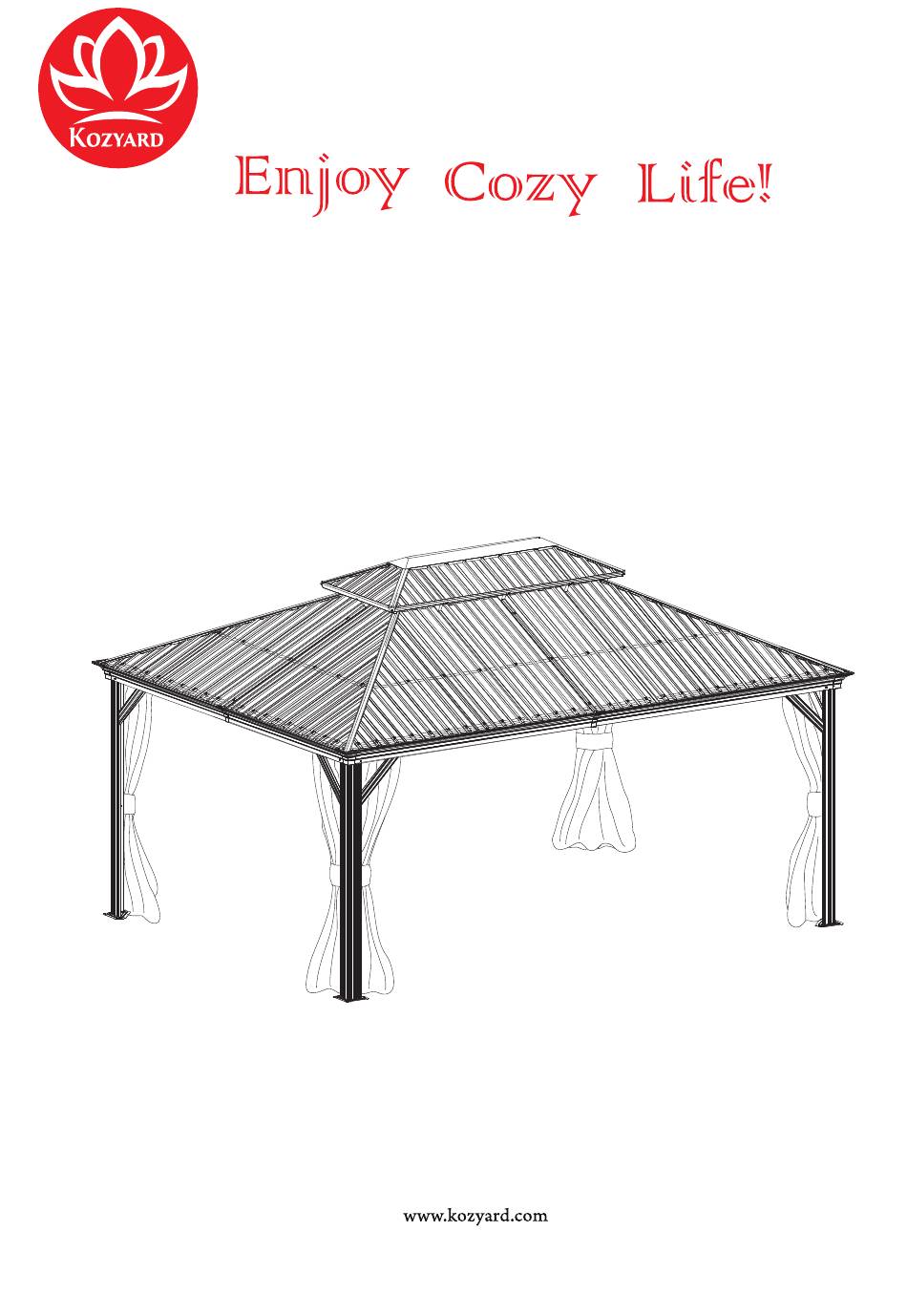

  • Page 1 12’x16’ Alexander hardtop gazebo with double roof Assembly Manual Kozyard LLC Products © Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
  • Page 2 1.Three or more people are required 5.Use the hex keys in the box. for assembly. 6.Please use a Phillips screwdriver. 2.You will need one or more stepladders. 7.Do not fully tighten screws prior to 3. Wearing protective gloves is complete assembly. recommended.
  • Page 3 J1 x4 A x4 J2 x4 B x2 K x1 B1 x2 B2 x2 K1 x1 C x2 L x4 C1 x2 M x4 C2 x2 N x4 D x2 N1 x4 D1a x2 ITEM DESCRIPTION Pole D1 x2 Beam Joint Bar Sidewall Track D2 x2...
  • Page 4 P1 x2 P x2 W1 x2 W8 x2 Q x2 W4 x2 Q2 x2 W5 x2 Q1 x2 R x8 S x136 W2 x2 W3 x2 W6 x2 W7 x2 T1 x2 T2 x2 X5 x2 X6 x2 U1 x4 U2 x4 ITEM DESCRIPTION...

  • Page 5: Description Qty

    5# x84+2 6# x8+1 X1 x2 X9 x2 X10 x2 X2 x2 7# x40+2 8# x4+1 9# x24+2 10# x4+1 X7 x2 X8 x2 11# x12+1 X4 x2 X3 x2 Allen key Y x4 Wrench Y1 x4 ITEM DESCRIPTION Roof Panel Roof Panel Z x72 Roof Panel...
  • Page 6 Step 1: Parts Required: Set up poles (Part A) with stand plates (Part L) using screws 1# as shown in diagram. L x4 A x4 page 4...

  • Page 7: Parts Required

    Parts Required： F x4 C x2 B x2 E x2 D x2 Step 2： Connect (Part C) and (Part B) into one beam using union bar (Part F) with screws 1# as shown in diagram. ③ Connect Part E and Part D into one beam using union bar (Part F) with screws 1# as shown in diagram.
  • Page 8 Parts Required: D1 x2 D2 x2 x104 B1 x2 E1 x2 B2 x2 E2 x2 C1 x2 D1a x2 E1a x2 C2 x2 Step 3 ： B1 B 2 C1 C2 D1 D2 E1 E2 Connect parts (E2&D2) to the finished beam (part E& part D) using screws 1# as shown in diagram.
  • Page 9 Parts Required： Step 4 ： Use screws (2# & 3#) to connect poles and beams together as shown in diagram. ① ① ② ② page 7...
  • Page 10 Parts Required: J1 x4 J2 x4 Step 5: Affix the frame with corner solidifying bars (Parts J1 & J2) using screws 1# as shown in diagram. page 8...
  • Page 11 Parts Required: H x4 G x4 ① ② Affix middle beams using joint cover Step 6: ① (Part H) and screws 9# and 8# Finish connecting beams using as shown in diagram. corner covers (Part G) and screws 9# as shown in diagram.
  • Page 12 Parts Required: x128 H1 x4 ① ② ② ① After finish hooks into tracks, then put H1 to lock them. ① Put 7 hooks to each slot of sidewall track (part C2&Part B2) ② Put 9 hooks to each slot of sidewall track (part E2&Part D2) page 10...
  • Page 13 Parts Required: M x4 K x1 P x2 R x4 Q x2 Step 8: Set up roof frame ② Connect the inside roof connect(Part K) with the corner roof bar (Part M)using screws 1# ② Attach finishing bar (Part P&Q)with finish end (Part R) using screws 1# to corner roof bar (Part M) as shown in diagram.
  • Page 14 Parts Required: N x4 N1 x4 Step 9： ② ① Attach roof bar (Part N&N1)to main frame using screw 1#. ① ② ① ② ② ① ② ① page 12...
  • Page 15 Parts Required: Q2 x2 Q1 x2 Step 10： Attach net frames (Part P1,Q1&Q2) to finishing bars（Part P &Q） using screws 1#&11# as shown in diagram. page 13...
  • Page 16 Parts Required: K1 x1 Step 11 ：Connect outside roof connctor (Part K1)to inside roof (Part K)using screw 1# as shown in diagram. page 14...
  • Page 17 Parts Required: Step 12: Cover metal bracket (Part Z,Z1,Z2) to roof panels as shown in diagram. page 15...
  • Page 18 Parts Required: T1 x2 R x4 V5 V6 Step 13 ： Push the roof panels (Partv, v1,v2,v3,v4,v5,v6)to upper roof as shown in diagram. Attach finishing bar (Part T1&T2)to upper roof with finish end (Part R) using screws 1#as shown in diagram. page 16...
  • Page 19 Parts Required: U2 x4 U3 x4 U4 x6 U1 x4 U5 x2 ② ② ③ ② ① ② ① ③ ② ② ① Attach solidifying bars (Part U1，U2&Part U5) to roof bar or corner roof bar using iron angle (Part U4) and screws 1# as shown in diagram.
  • Page 20 Parts Required: Z x32 W1 x2 W2 x2 W3 x2 W4 x2 W5 x2 W6 x2 W7 x2 W8 x2 Step 15 ： Cover metal bracket (Part Z) to roof panels as shown in diagram. page 18...
  • Page 21 Parts Required: Z x28 Z3 x4 Z4 x4 X1 x2 X2 x2 X3 x2 X4 x2 X5 x2 X6 x2 X7 x2 X8 x2 X9 x2 X10 x2 Step 16 ： Cover metal bracket (Part Z,Z3,Z4) to roof panels as shown in diagram.
  • Page 22 Overall roof assembly: Please put the panels on the frame anti-clockwisely X 1 0 X 9 X 1 0 Connect roof as below: page 20...
  • Page 23 Parts Required: S x136 Step 17: Affix roof panels using screws and 1 0 # spacers (Part S) as shown in diagram. Attention: Put on one roof panel and fasten it accordingly before attaching second roof panel. ② ② ① ①...
  • Page 24 Parts Required: Step 18 ： Hang up mosquito sidewalls and solid sidewalls as shown in diagram. page 22...
  • Page 25 Parts Required: Step 19: When you close the curtain,please tie fabric strape to fix with poles as shown in diagram. In the end,Check all screws are fixed tightly before using. page 23...
