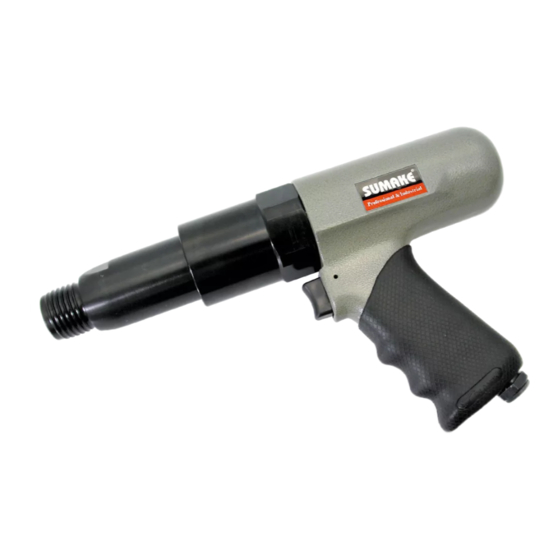

250mm vibration-reduction air hammer

Advertisement

Quick Links

SUMAKE
250mm Vibration-Reduction Air Hammer

Specification:

Blow Per Minute
Bore Diameter
Piston Stroke
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
ST-2232/R(H)
2,100 b.p.m.
3/4" (19 mm)
3-7/10" (96 mm)
14 CFM (396 L/min)
11" (280 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
5.7 lbs (2.6 kg)
Noise and Vibration:
Vibration
EN ISO 28927-9
Sound Pressure Level
Load:
8.2 m/s²
Sound power level
Uncertainty
²
K= 1.5 m/s
Noise
EN ISO 15744
Please always
load: 102 dB(A)
protector at
environment
load: 113 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-2232/R(H)-S-1308C-JIF
Remark
wear ear
hearing!
