Page 1: Table Of Contents
Contents GENERAL NOTICE ................... 1 INTRODUCTION ....................2 ................... 3 IRELESS OMMUNICATION USB C ....................3 ONNECTIVITY ....................3 OWER OURCE FUNCTIONAL DESCRIPTION ................4 ..................... 5 TATUS ................... 6 EHICLE ONNECTOR USB P ......................6 ................... 6 ECHNICAL PECIFICATIONS ....................... -
Page 2: General Notice
In addition, the computer control systems or sensors on any given vehicle may be malfunctioning. While Autel’s testing and the experiences of the users have shown the unit to be safe and reliable, there is an inherent risk in using any product that may potentially affect the operation or drive-ability of your vehicle. -
Page 3: Introduction

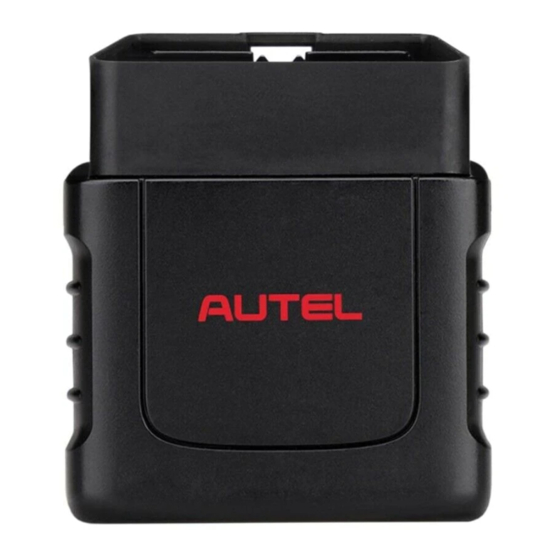

Introduction The wireless diagnostic interface MaxiVCI Mini is a small interface box used to connect to a vehicle’s diagnostic connector (DLC) and connect wirelessly with some Autel Diagnostic Tools including MaxiCheck MX808TS and MaxiTPMS TS608, as well as standalone PC, as a vehicle communication interface (VCI) for vehicle data transmission. -
Page 4: Wireless Communication
BT communication is about 33 feet (about 10 m). A signal lost due to moving out of range automatically restores itself when the display unit is brought closer to the MaxiVCI Mini unit. USB Connectivity... -
Page 5: Functional Description
Functional Description The MaxiVCI Mini device package includes the unit, user manual, and a CD with driver program and update agent. Figure 3-1 Product View Vehicle Data Connector (16-Pin) Power LED：The power LED illuminates solid green when the device is power up and operates normally, it will illuminate solid red if the device is not operating normally;... -
Page 6: Status Leds
Status LEDs There are 2 status LEDs on the front panel of the MaxiVCI Mini, which indicates its working status as well as the hardware conditions, and are very useful for troubleshooting the device’s communication or connection to the vehicle, display tablet and/or the PC. See table 3-1 for detailed description of the status LEDs. -
Page 7: Vehicle Data Connector
Vehicle Data Connector The vehicle connector connects the MaxiVCI Mini to the vehicle’s 16-pin DLC directly. USB Port The USB port provides the easiest connection between the device and the display tablet or the PC via a USB cable, and is used to control the device from the software application running on the PC. -
Page 8: Capabilities
Capabilities When used in conjunction with the display table or the OEM softwares from the PC, the MaxiVCI Mini is able to perform the following functions: Auto diagnostics to read and clear the error memory, to display system parameters and the status of the ECU;... -
Page 9: Product Troubleshooting
This part describes problems that you may encounter while using the MaxiVCI Mini. Vehicle Linking Error A communication error occurs if the MaxiVCI Mini fails to communicate with the vehicle’s control module when performing diagnostic procedures. You need to do the following check-ups: ... -
Page 10: Driver Setup
Windows 8 (32 or 64 bit), or Windows 10 (32 or 64 bit). IMPORTANT Do not plug the MaxiVCI Mini onto the PC until you have installed the driver program. The following steps may vary depending on the operating system or components that are installed on your computer, but in general this is the standard installation process. - Page 11 Figure 5-1 Sample Installation Step 1 Click on “Install” and the driver program will be installed onto your Figure 5-2 Sample Installation Step 2 NOTE During this part of the process a MS-DOS style window may pop up and may remain on your screen for a short while, which is perfectly normal. Do not attempt to close the MS-DOS style window manually as this will prevent the device driver being installed successfully.
- Page 12 When the driver is successfully installed, a confirm window will appear. Click on “Finish” to complete the whole installation procedure. Figure 5-3 Sample Installation Step 3...
-
Page 13: Firmware Update
PC. Make sure the PC is connected to the Internet before using this function. Connect the MaxiVCI Mini to the PC via the USB cable. Verify the Power and Connection LEDs on the front panel are illuminated green. - Page 14 Figure 6-1 Sample Online Update Window...
-
Page 15: Compliance Information
Compliance Information FCC COMPLIANCE FCC ID: WQ8-MXVCIMINI This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. - Page 16 FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. RoHS COMPLIANCE This device is declared to be in compliance with the European RoHS Directive 2011/65/EU. CE COMPLIANCE This product is declared to conform to the essential requirements of the following Directives and carries the CE mark accordingly: EMC Directive 2014/30/EU RED Directive 2014/53/EU...
-
Page 17: Warranty And Service
Warranty and Service Limited One Year Warranty Autel warrants to its customers that this product will be free from all defects in materials and workmanship for a period of one (1) year from the date of the original purchase, subject to the following terms and...
