Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Surge Protection
This product features built-in surge protection circuitry in compliance
with applicable standards.
For comprehensive protection of a luminaire installation against lightning
and electrical surges, it is essential to cover mains supply and data input
lines at the distribution board level, by using respective primary (Type 1)
and secondary (Type 2) surge arrestors in compliance with EN61643-11/
IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and
activated prior to luminaire installation. Also, disconnect luminaires
before operating high-power devices such as, for example, electrical
arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Projector

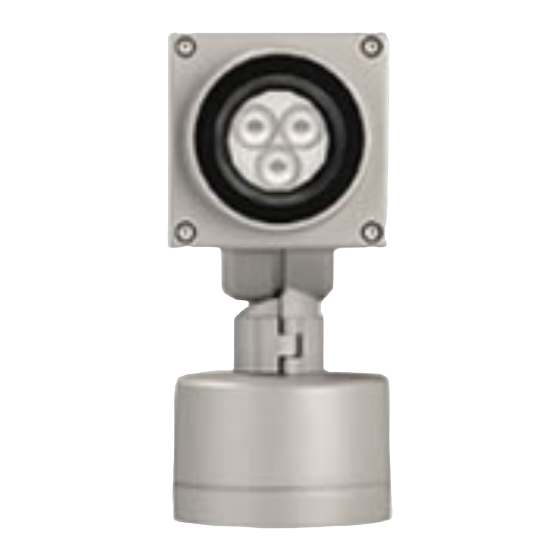

FLD111 #3 LED
Advertisement
Related Manuals for WE-EF FLD111
Summary of Contents for WE-EF FLD111
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Projector FLD111 #3 LED Do not open during installation Surge Protection This product is factory-sealed. This product features built-in surge protection circuitry in compliance Refer to the instructions contained in this with applicable standards.
- Page 2 Projector FLD111 #3 IP66, Class I, ta = 40°C...
-
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried Warning: Do not open luminaire while mains supply is switched on. -
Page 4: Installation Procedure
– DO NOT INSTALL ON WET CONCRETE! Handling: handled with care, scratches and damage to the coated surface can result in galvanic corrosion. A WE-EF warranty does not cover any adverse reaction or damage, due to improper installation and requests that our recommendations are followed. - Page 6 Fig. I...
- Page 7 WE-EF SWITZERLAND WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9218W0823 © WE-EF 2023 subject to change.
- Page 8 WE-EF LEUCHTEN Installation and Maintenance Instructions Accessory Short post...
- Page 9 Accessories Suitability 1. FLB100 Surface mounted 2. FLC300 Surface mounted 3. FLD100 Surface mounted Short post...
- Page 10 Installation Installation Procedure The product must be installed and maintained by a 1) Ensure mounting surface A is clean and free of debris. latest building/construction and/or electrical 2) Ensure anchor bolts C suit hole pattern in short regulations and relevant legislation. E and feature appropriate, levelled protrusion from surface A.
