Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Projector
RAIL66 version
FLD121 #6 LED
FLD131 #6 LED
Space frame version
FLD121 #7 LED
FLD131 #7 LED
Advertisement
Related Manuals for WE-EF FLD121
Summary of Contents for WE-EF FLD121

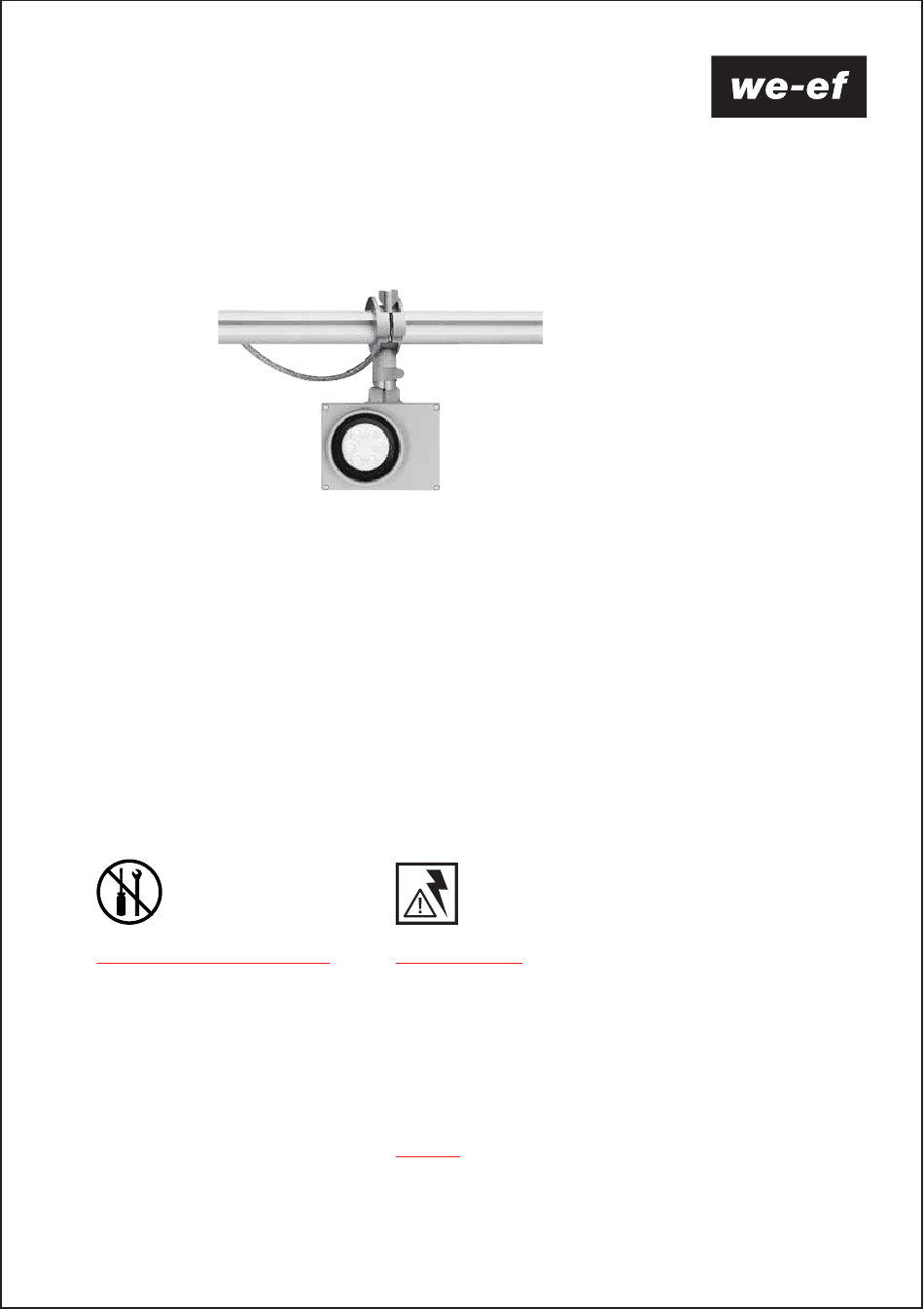

- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Projector RAIL66 version FLD121 #6 LED FLD131 #6 LED Space frame version FLD121 #7 LED FLD131 #7 LED Do not open during installation Surge Protection This product is factory-sealed. This product features built-in surge protection circuitry in compliance with Refer to the instructions contained in this applicable standards.
- Page 2 Projector FLD121 RAIL66 Space frame version version FLD131 RAIL66 Space frame version version IP66, Class I, ta = 40°C...
-
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out by a suitably quali ed and trained professional. -
Page 4: Installation
Installation The product must be installed and maintained by a suitably quali ed professional in compliance with latest building/construction and/or electrical regulations and relevant legislation. Warning: Switch off mains electrical supply prior to installing and connecting the luminaire. Notice: If the luminaire is modi ed by anybody other than the original manufacturer, then the warranty will no longer be valid and shall become the full respon- sibility of the modifying person/organisation. -
Page 5: Installation Procedure
Installation Procedure Installation – RAIL66 version Installation – Space frame version Prior to installing the luminaire, mount and connect Suitable for space frame diameter 48-60 mm. the selected RAIL66 mounting system in accordance 1) Switch off mains electrical supply. with relevant installation instructions 2) Determine desired position of luminaire A on space 1) Switch off mains electrical supply. - Page 6 RAIL66 version...
- Page 7 Space frame version Fig. I. Feed mains supply cable through cable gland...
- Page 8 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com WE-EF LIGHTING United Kingdom Tel +44 844 880 5346 Fax +44 844 880 5347 info.uk@we-ef.com TO9212W0918 © WE-EF 2018 Technical speci cations are subject to change.
