Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions

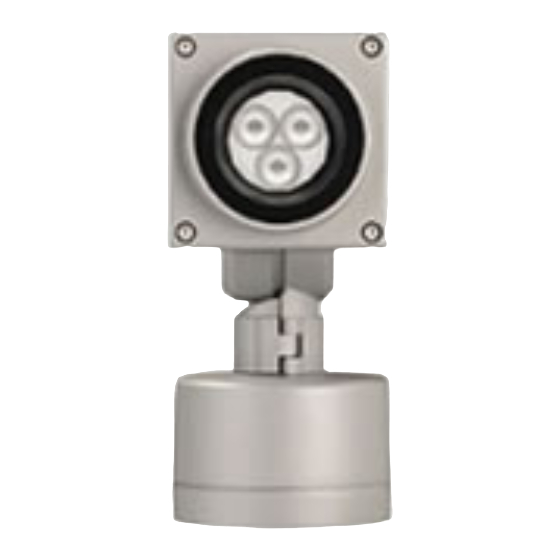

Projector
FLD111 #1 LED
Advertisement
Table of Contents
Related Manuals for WE-EF FLD111
Summary of Contents for WE-EF FLD111
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Projector FLD111 #1 LED Do not open during installation Surge Protection This product is factory-sealed. This product features built-in surge protection circuitry in compliance with Refer to the instructions contained in this applicable standards.
-
Page 2: Mounting Accessories
Projector FLD111 #1 IP66, Class I, ta = 40°C Mounting Accessories SF-FLD1 for FLD121/131 #1 145-9535 CF-FLD1 for FLD121/131 #1 145-9536 SF-FLD1 CF-FLD1... -
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on. -
Page 4: Installation
Installation The product must be installed and maintained by a building/construction and/or electrical regulations and relevant legislation. Warning: Switch off mains electrical supply prior to installing and connecting the luminaire. Notice: than the original manufacturer, then the warranty will no longer be valid and shall become the full respon- sibility of the modifying person/organisation. -
Page 5: Installation Procedure
Installation Procedure 1) Switch off mains electrical supply. 2) Feed cable C from luminaire A through pivot I and hole L 4) Loosen screw M H (do not turn out) Drill relevant holes Q and insert nylon plugs R. Insert and tighten screws D. H over Warning: Ensure not to damage any electric pivot I, while pulling luminaire cable C through... - Page 6 Feed luminaire cable C through cable gland U conforms with mains electrical supply. and connect leads to terminal block V: The red 04/19 IP66 to '+', the black to '–'. Tighten cable gland U. FLD111-LED 220-240V50-60/Hz 145-XXXX SOE XXXXXXX LED 3000K 6W item no.
- Page 7 Installation Procedure 1) Switch off mains electrical supply. D and cable entry hole F. Drill relevant holes E (thread type M6) and F on column X. Ensure cable entry hole F from luminaire. B in position. Insert 4) Feed cable C from luminaire A through pivot I and tighten screws D.
- Page 8 Feed luminaire cable C through cable gland U conforms with mains electrical supply. and connect leads to terminal block V: Red to 04/19 IP66 '+', Black to '–'. Tighten cable gland U. FLD111-LED 220-240V50-60/Hz 145-XXXX SOE XXXXXXX LED 3000K 6W item no.
- Page 9 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com WE-EF LIGHTING United Kingdom Tel +44 844 880 5346 Fax +44 844 880 5347 info.uk@we-ef.com TO9217W0419 © WE-EF 2019 subject to change.
