Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Bracket Mounted Projector
FLD121 #4 LED
FLD131 #4 LED
Advertisement
Related Manuals for WE-EF FLD121
Summary of Contents for WE-EF FLD121

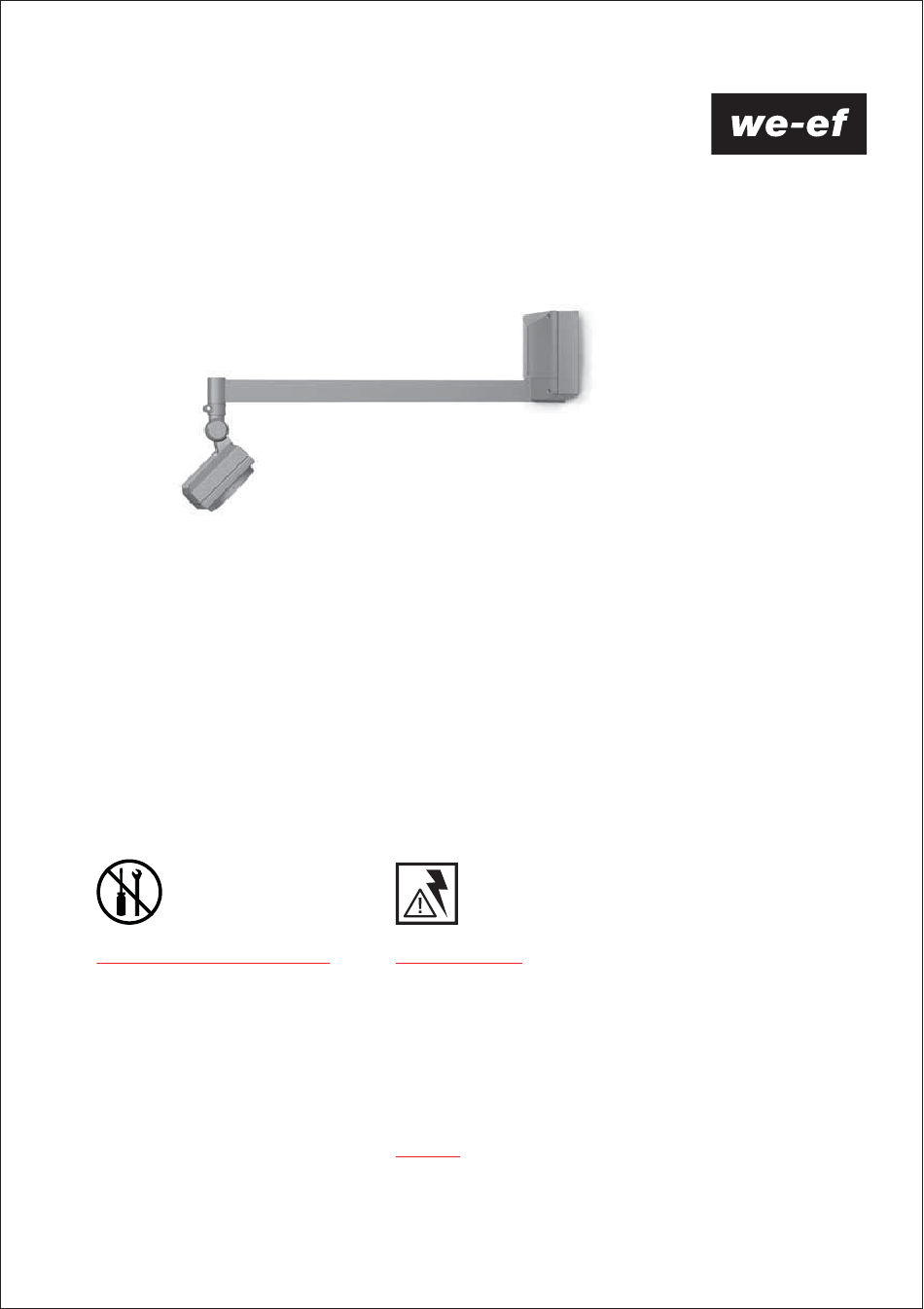

- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Bracket Mounted Projector FLD121 #4 LED FLD131 #4 LED Do not open during installation Surge Protection This product is factory-sealed. This product features built-in surge protection circuitry in compliance with Refer to the instructions contained in this applicable standards.
- Page 2 Projector FLD121 #4 FLD131 #4 IP66, Class I, ta = 40°C Weight for FLD121 #4 for FLD131 #4...
-
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on. -
Page 4: Installation Procedure
Installation Installation Procedure The product must be installed and maintained by a 1) Switch off mains electrical supply. A by loosening screws B. building/construction and/or electrical regulations and Detach terminal connector C. relevant legislation. Drill relevant holes E and insert nylon plugs F. Warning: Switch off mains electrical supply prior to Warning: Ensure not to damage any electrical cable, installing and connecting the luminaire. - Page 6 Individual wiring Through wiring Individual wiring Through wiring...
- Page 7 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com WE-EF LIGHTING United Kingdom Tel +44 844 880 5346 Fax +44 844 880 5347 info.uk@we-ef.com TO9215W0617 © WE-EF 2017 subject to change.
