Simple Pinout - Arduino Portenta Mid Carrier Product Reference Manual

Item Feature
Screw terminal block for power supply and
J4
CAN bus interface
J8 Mini PCIe connector
J11 DVP interface connector
USB-A 2.0 female connector for data logging
J13
operations
J16 Mini PCIe breakout header connector
J18 RJ45 connector for Ethernet
SIM1 Nano SIM card connector
SW2 CAN bus interface enable/disable switch

4.2 Simple Pinout

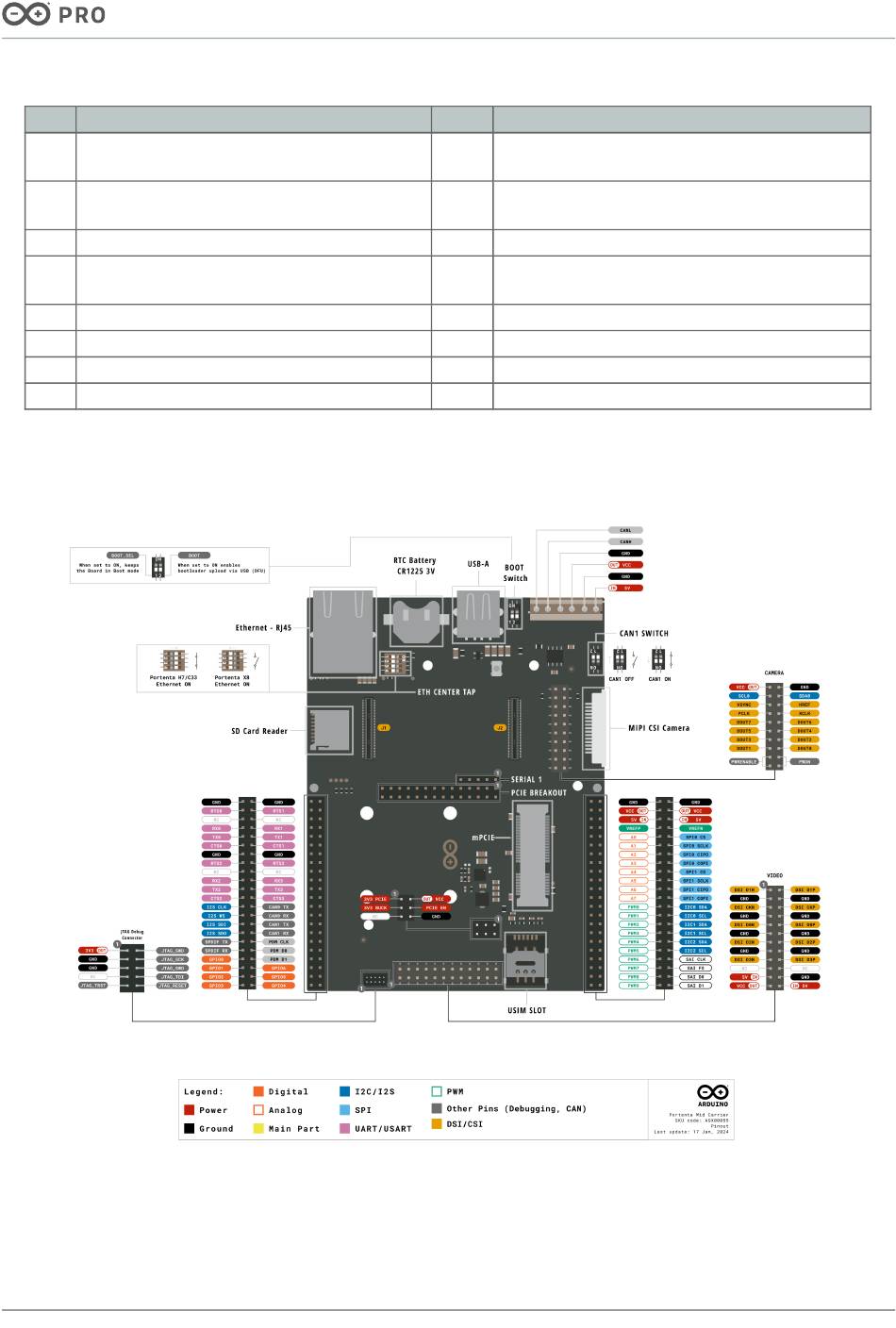

The Portenta Mid Carrier simple pinout is shown in the figure below.
10 / 30
Item Feature
J5 Battery socket
MIPI camera connector (only compatible with
J10
Portenta X8 boards)
J12 microSD card slot
J14,
2.54 mm breakout header connectors
J15
J17 2.54 mm breakout header connectors
J19 GIGA Display Shield Connector
SW1 Boot select switch
SW3 Ethernet enable/disable switch
Arduino® Portenta Mid Carrier
Arduino® Portenta Mid Carrier
Modified: 09/04/2024
