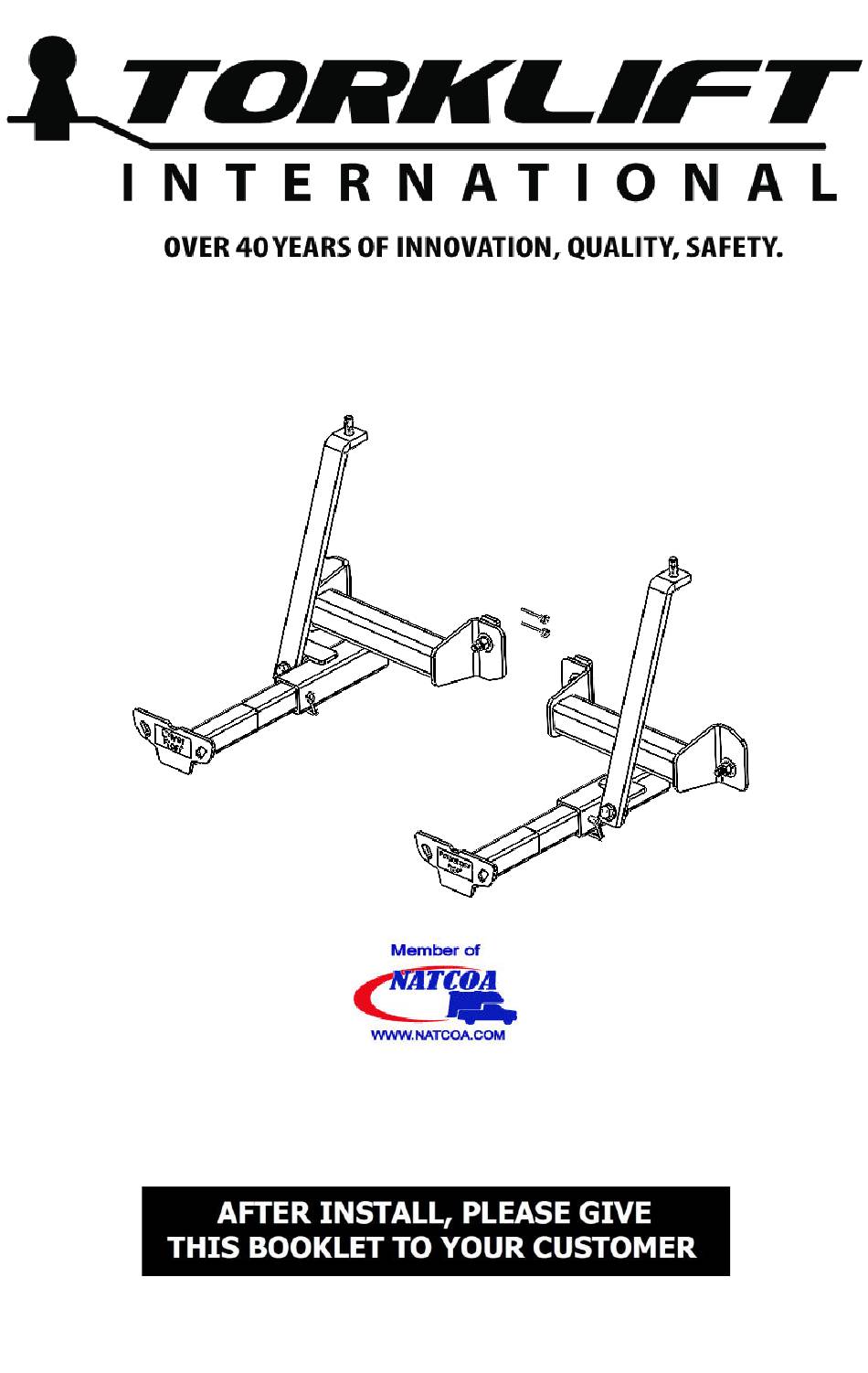

- Page 1 IMPORTANT OWNER-OPERATOR INSTALLATION INSTRUCTIONS C2226 Version Number: 4, Date: 7/15/2022 By: CW TECH SUPPORT (800) 246-8132 pg. 1 COPYRIGHT© 2021, By Torklift International, Inc. All rights reserved.
- Page 2 Warnings Truck Bed and Camper Protection Torklift does not recommend installing your camper on top of a plastic bed liner (or other compressible material such as foam). These materials can act as a spring, causing increased vertical truck camper movement independent of the vehicle.
- Page 3 Tie Down Insert 7/16”-14 x 1-3/4” 10317 Grade 8 Hex Bolt 7/16” Star Washer 11998 7/16” USS Flat 3536 Washer 7/16” Split Lock 3311 Washer 7/16”-14 Grade 8 9962 Hex Nut pg. 3 COPYRIGHT© 2021, By Torklift International, Inc. All rights reserved.
- Page 4 Grade 8 Hex Bolt 1/2”-13 Grade 8 1751 Hex Nut 1/4” x 1-1/4” Bail 1452 Driver Front 3844 Insert Sticker Passenger Front 3845 Insert Sticker 7/16” Bolt Fisher 12031 pg. 4 COPYRIGHT© 2021, By Torklift International, Inc. All rights reserved.
-
Page 5: Installation Notes
Leave the bolt fisher attached. pg. 5 COPYRIGHT© 2021, By Torklift International, Inc. All rights reserved. - Page 6 • Gently pull on the straight end of the bolt fisher until the threads of the bolt protrude out of the oval hole in the frame. Leave the bolt fisher attached. pg. 6 COPYRIGHT© 2021, By Torklift International, Inc. All rights reserved.
- Page 7 7/16” USS flat washer, one 7/16” split lock washer, and one 7/16”-14 grade 8 hex nut. • Once the first bolt is secure, repeat the process on the second bolt. Leave the hardware loosely installed. See Figure 3.2 pg. 7 COPYRIGHT© 2021, By Torklift International, Inc. All rights reserved.
- Page 8 8 hex nut Step 4: • Remove the factory bolt at the top of the bed support bracket. Discard this factory bolt. See Figure 4.1. Factory Bolt Figure 4.1 pg. 8 COPYRIGHT© 2021, By Torklift International, Inc. All rights reserved.
- Page 9 • Secure the bolt with a 1/2” split lock washer and a 1/2”-13 grade 8 hex nut. 1/2” SAE Flat Washer 1/2”-13 x 1-1/2” Grade 8 Hex Bolt 1/2” Split Lock Washer Figure 5.1 1/2”-13 Grade 8 Hex Nut pg. 9 COPYRIGHT© 2021, By Torklift International, Inc. All rights reserved.
- Page 10 This is to account for road debris, as well as aid in installation and removal. Some rattle may be expected if the inserts are left installed while not under load from the camper. Installation is complete. pg. 10 COPYRIGHT© 2021, By Torklift International, Inc. All rights reserved.
- Page 11 Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Any damage to Torklift products as a result of misuse, abuse, neglect, accident, improper installation or any use violation of instructions furnished by Torklift or WHEN USED IN ANY COMMERCIAL APPLICATION WILL VOID THE WARRANTY.
- Page 12 To Fax: Send copies of the questionnaire, warranty card and receipt to 253-854-8003 To E-mail: Send copies of the questionnaire, warranty card and receipt to warranty@torklift.com To Mail: Send to Torklift International 322 Railroad Ave North, Kent, WA 98032 pg. 12 COPYRIGHT© 2021, By Torklift International, Inc. All rights reserved.
- Page 13 OFFICIAL WARRANTY REGISTATION CARD 322 Railroad Ave North, Kent, Wa 98032 Please fill out this form completely and return to Torklift within 30 days of purchase accompanied by a copy of your original receipt pg. 13 COPYRIGHT© 2021, By Torklift International, Inc. All rights reserved.
