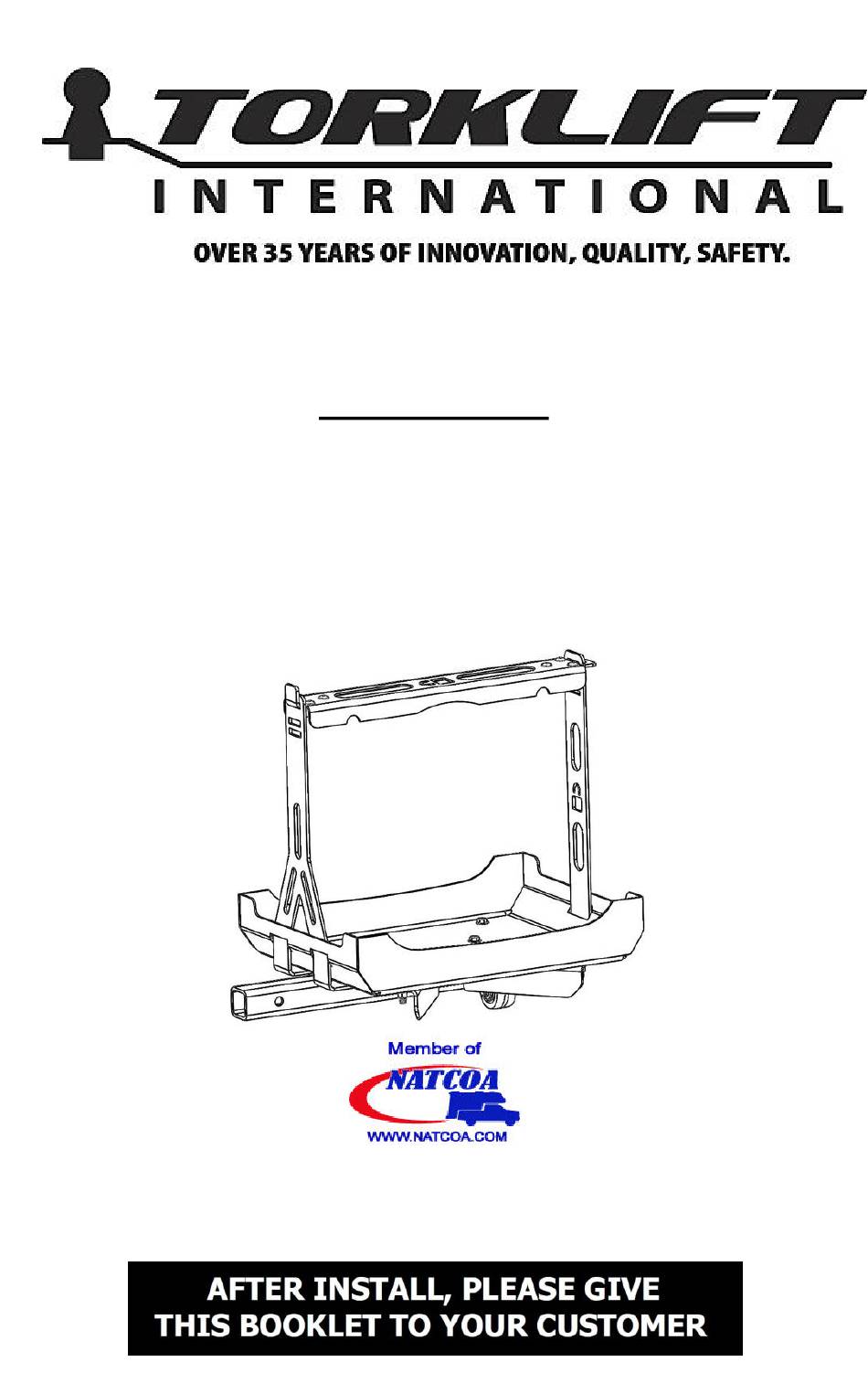

IMPORTANT OWNER-OPERATOR INSTALLATION
INSTRUCTIONS
Part # A7901
Lock and Load: Side Kick
Fits:
Yamaha EF2400
Yamaha EF2000
Honda EU2000
Version: 4
BY: DK 6/4/15
TECH SUPPORT (800) 246-8132

Advertisement

loading
Need help?

Need help?

Do you have a question about the A7901 and is the answer not in the manual?

Questions and answers

Summary of Contents for Torklift A7901

  • Page 1 IMPORTANT OWNER-OPERATOR INSTALLATION INSTRUCTIONS Part # A7901 Lock and Load: Side Kick Fits: Yamaha EF2400 Yamaha EF2000 Honda EU2000 Version: 4 BY: DK 6/4/15 TECH SUPPORT (800) 246-8132...
  • Page 2: Included Parts

    Included Parts Qty. Description 3/8”-16 x 1.25” SS Hex Bolt 3/8” x 1.5” Grade 5 Hex Bolt 3/8” x 2” Grade 8 Tap Bolt 3/8” x 2.5” Grade 5 Hex Bolt 3/8” x 3” Grade 5 Hex Bolt 3/8”-16 x 1.25” SS Snake Eye Bolt 3/8”...
  • Page 3 Qty. Description Hidden Shackle Lock Mounting Bracket Generator Tray Y-Strap Tension Strap Security U-Channel Outer Wheel Bracket Inner Wheel Bracket...
  • Page 4 Instructions The #A7901 Lock and Load Side Kick can be installed into either a standard 2” trailer hitch, or into an #A7900 Space Dock For Installation in a trailer hitch, proceed to step 1 For installation in a Space Dock, proceed to step 2...
  • Page 5 Step 1 Align the outer holes in the Mounting Bracket with the holes in the Generator Tray. For this installation, the tube on the Mounting Bracket should be facing toward one of the longer sides of the generator tray. From the top of the tray, install one 3/8”-16 x 1-1/4” SS Hex Bolt with one 3/8”...
  • Page 6 Step 2 Place a 3/8” SS SAE Flat Washer onto the 3/8”-16 x 2.5” Grade 5 Hex Bolt. Slide the bolt through the Inner Wheel Bracket and 2.5” Nylon Wheel as shown in figure 2.1. Secure the bolt with one 3/8” SS SAE Flat Washer and one 3/8”-16 Grade 8 Nylock Nut.
  • Page 7 Step 3 Align the outer holes in the Mounting Bracket with the holes in the Generator Tray. For this installation, the tube on the Mounting Bracket should be facing toward the side of the Generator Tray with two rectangular slots. From the top of the tray, install one 3/8”-16 x 1-1/4”...
  • Page 8 3/8”-16 x 1-1/4” SS Hex Bolt Figure 3.1 3/8”-16 x 1-1/4” 3/8”-16 x 1.25” SS Hex Bolt SS Snake Eye Bolt 3/8” SS SAE Flat Washer 3/8”-16 x 1-1/4” 3/8”-16 x 1.25” SS Hex Bolt SS Snake Eye Bolt 3/8” SS SAE Flat Washer 3/8”-16 Grade 8 Nylock Nut...
  • Page 9 Step 4 Align the Y-Strap as shown in figure 4.1, and slide the legs of the Y-strap through the two rectangular slots in the Generator Tray. Once the legs of the Y-Strap are through the slots, Rotate the Y- strap until the long side of the strap is vertical. Once the Y-Strap is vertical, Place one 3/8”-16 x 1-1/4”...
  • Page 10 Figure 4.3 2X - 3/8” SS SAE Flat Washer 1X - 3/8” SS SAE Flat Washer 1X 3/8”-16 Grade 8 Nylock Nut Step 5 Insert the Side Kick into a 2” hitch receiver or A7900 Space Dock and pin it in place with the 5/8” Pin and Clip.
  • Page 11 Figure 5.1 Yamaha EF2400 Yamaha EF2000 Honda EU2000 Step 6 Insert a 3/8”-16 x 1.5” Grade 5 Hex Bolt into the 2-1/4” Nylon Knob. Thread one 3/8”-16 SS Hex Nut onto the bolt, and then thread the bolt into the bottom of the Tension Strap as shown in figure 6.1.
  • Page 12 Step 7 Slide the Tension Strap up through the rectangular slot in the Generator Tray as shown in figure 7.1. Place the appropriate slot in the Tension Strap over the locking tab on the Security Channel. Lock the Tension Strap to the Security Channel using the Hidden Shackle Lock.
  • Page 13 Tension on the Y-Strap can be adjusted by varying the number of washers installed between the Y-Strap and the Generator Tray (extra washers are provided in the kit). If you are installing the Sidekick into a 2” hitch, your installation is complete. If you are installing the Sidekick into an A7900 Space Dock, continue on to step Torque all 3/8”...
  • Page 14: Lock Maintenance

    WARNING! When using the Sidekick or any accessory with the A7900 Space Dock, the accessory MUST be supported by the bumper and latched in the stored position when the vehicle is in motion! Failure to do so will void your warranty and may result in damage to camper, bumper, space dock, and accessories! Lock maintenance...
  • Page 15 Warranty Information 1901 Fryar Ave Sumner, WA 98390 Torklift will require proof of purchase to register, with pictures of any defective product before issuing a replacement. Torklift will not register any product without proof of purchase, which can be faxed, scanned, emailed, or mailed to the information provided below.
  • Page 16 Or visit our website: www.TorkLift.com Dear Valued Customer, Thank you for making TorkLift your choice for truck, camper packages and accessories for your vehicle. By choosing TorkLift products, you have chosen a company that has been serving the RV industry for nearly 40 years and whose name has become synonymous with strength, quality and advanced design and installation.
  • Page 17 To Mail: Send to Torklift International 1901 Fryar Ave Sumner, Wa 98390 OFFICIAL WARRANTY REGISTRATION CARD PLEASE FILL OUT THIS FORM COMPLETELY AND RETURN TO TORKLIFT WITHIN...
  • Page 18 30 DAYS OF PURCHASE ACCOMPANIED BY A COPY OF YOUR ORIGINAL RECEIPT...
