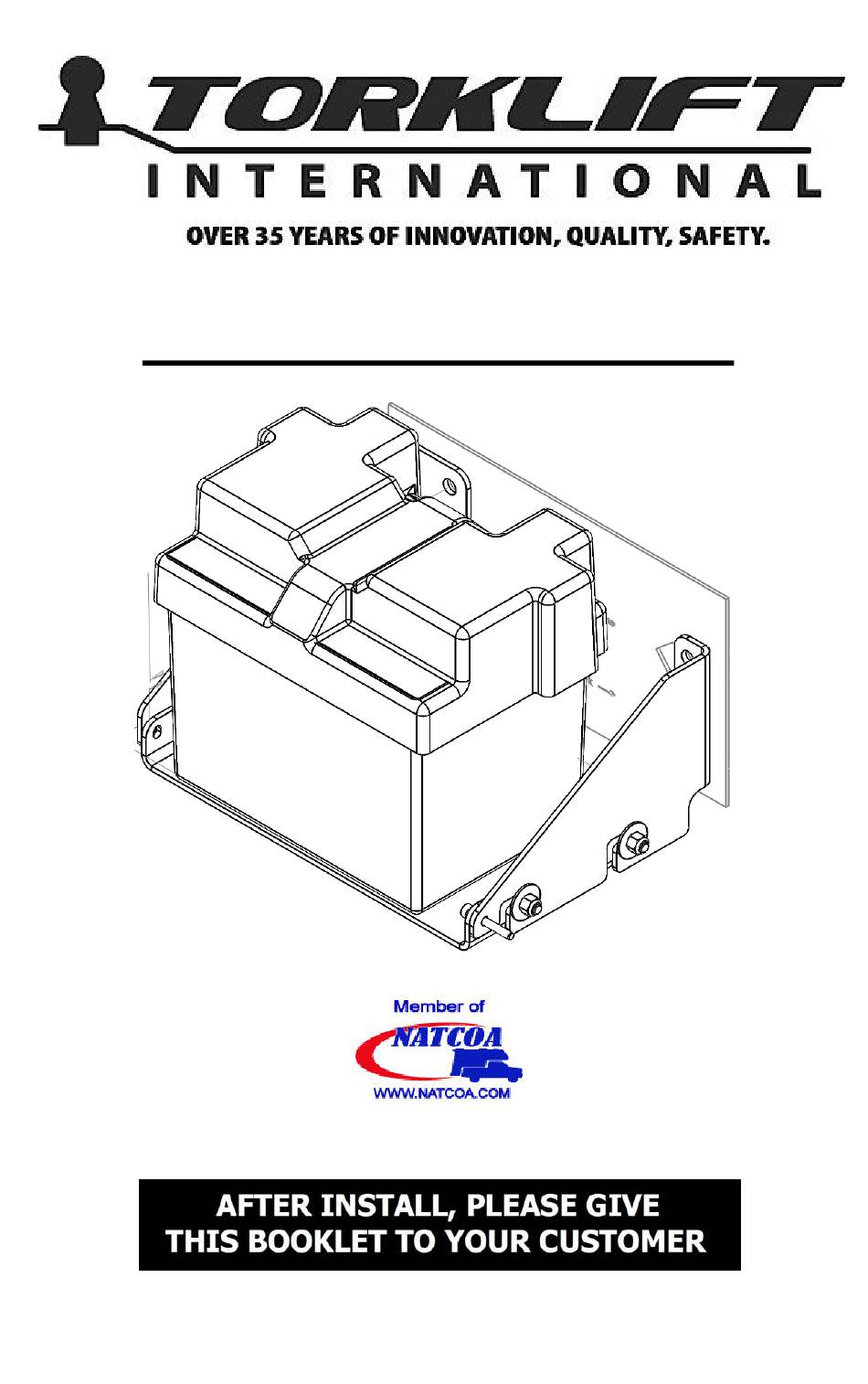

- Page 1 IMPORTANT OWNER-OPERATOR INSTALLATION INSTRUCTIONS A7726 - Hidden Power Version 2 BY: DSK (11/23/2015) TECH SUPPORT (800) 246-8132...
- Page 2 Warnings Truck Bed and Camper Protection Torklift does not recommend installing your camper on top of a plastic bed liner (or other compressible material such as foam). These materials can act as a spring, causing increased vertical truck camper movement independent of the vehicle. Plastic bed liners can slide on the truck bed surface, and the truck camper can slide on top of the bed liner.
- Page 3 Parts Inventory Image Item Description Quantity A7726 Battery Tray A7726 Rear Side Plate A7726 Front Side Plate Group 24 Battery Box (with strap) 50 AMP Wire Connectors 1/2”-13 x 1-1/4” Grade 5 Hex Bolt 1/2”-13 Grade 5 Hex Nut 1/2” Lock Washer 1/2”...
-
Page 4: Clevis Pin And Clip
1/4” Flat Washer 1/4” x 1-1/4” Fender Washer 1/4”-20 Hex Nut 1/4” Clevis pin and clip 1/2” Bolt fisher... - Page 5 Step 1: Locate the area of install directly above the forward most leaf spring hanger on the passenger side of the vehicle. Begin by using the two supplied bolt fishers to fish one 1/2”-13 x 1-1/4” Grade 5 Bolt with one 1/2” Star washer through holes 1 and 2 as shown.
-
Page 6: Lock Washer
Step 2: With the threads of the two 1/2”-13 x 1-1/4” Grade 5 bolts sticking out of the frame, place the Rear Side Plate over the bolts by pulling the bolt fishers through each hole in the Rear Side Plate. The key holes in the plate should be facing the ground. -
Page 7: Star Washer
Step 3: Reuse the two supplied bolt fishers to fish one 1/2”-13 x 1- 1/4” Grade 5 Bolt with one 1/2” Star washer through holes 3 and 4 in the vehicle frame. Place the Front Side Plate over the bolts by pulling the bolt fishers through each hole in the Front Side Plate. - Page 8 Step 5: With all three parts properly aligned, tighten the four 1/2” hex nuts securing the side plates to the vehicle frame. Remove the battery tray from the keyhole slots once the side plates are secure. This can be done by removing the clamp or loosening the two 3/8”...
- Page 9 Figure 6.1 Step 7: Place your battery inside the Battery Box and connect the battery cables (not included) to the appropriate battery terminals. Two 50amp quick disconnect terminals are included in the kit to make installation and removal of the battery tray easier.
- Page 10 Step 8: With you Battery Box bolted onto your Battery Tray and the battery installed, lift the assembly up between the side plates and lock the tray into the keyhole slots. Secure the battery tray in place with two 1/4” Pin and clips. Install one 3/8”...
- Page 11 Battery Charging Wire Diagrams To test if you have a factory battery separator, use a voltmeter or a 12V test light to test for key on/ key off positive power at the RV Plug. See RV Plug Diagram on next page.
-
Page 15: Warranty Information
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Any damage to Torklift products as a result of misuse, abuse, neglect, accident, improper installation or any use violative of instructions furnished by Torklift or WHEN USED IN ANY COMMERCIAL APPLICATION WILL VOID THE WARRANTY. - Page 16 Torklift International gift. To Fax: Send copies of the questionnaire, warranty card and receipt to 253-854-8003 To E-mail: Send copies of the questionnaire, warranty card and receipt to warranty@torklift.com To Mail: Send to Torklift International 322 N Railroad Ave. Kent, WA 98032...
- Page 17 OFFICIAL WARRANTY REGISTRATION CARD PLEASE FILL OUT THIS FORM COMPLETELY AND RETURN TO TORKLIFT WITHIN 30 DAYS OF PURCHASE ACCOMPANIED BY A COPY OF YOUR ORIGINAL RECEIPT...
