IMPORTANT OWNER-OPERATOR INSTALLATION INSTRUCTIONS

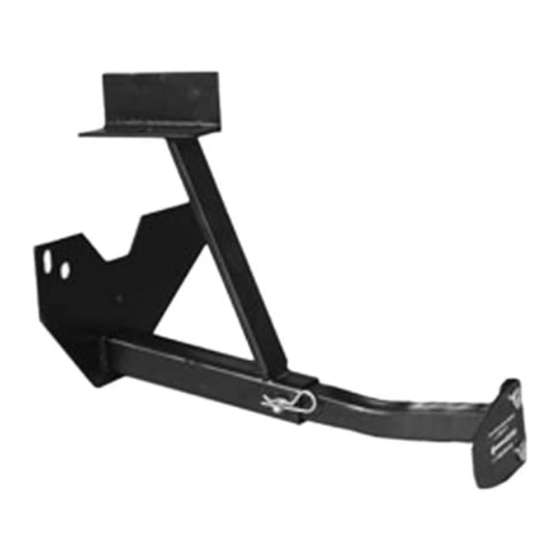

D3102/D3108/FMTDGHDRO
REAR TIE DOWNS W/ FACTORY INSTALLED RECEIVER
04-08 DODGE 1500 SHORT & LONG BED
03-09 DODGE 2500/3500 HD SHORT & LONG BED
10-12 DODGE 2500/3500 HD SHORT & LONG BED -
ADDENDUM
APPLICATION FITS
CHAIN AND CLEVIS REMOVED 07.28.2011
Minor movement (or settling) can occur in some incidental harsh driving conditions
(on or off road).
A rubber bed mat is not a requirement to maintain the lifetime warranty on a Torklift sys-
tem, but a strong recommendation, simply as a safety precaution to protect the truck bed,
the bottom of the camper and to give the camper additional support.
Warning!!
TORKLIFT DOES NOT RECOMMEND: Installing your truck camper in your truck on top of
a drop in plastic bed liner!!! THIS WILL VOID YOUR WARRANTY!
The drop in plastic bed liners can slide on top of the truck bed surface, and the camper can
slide on top of the slick surface of the bed liner. The liner can also act as a spring causing a
trampoline effect increasing vertical truck camper movement, independent of the vehicle,
possibly resulting in truck bed damage and/or camper damage!
REVISED vers1 BY: MWP 07/19/2012
TECH SUPPORT (800) 246-8132
AFTER INSTALL, PLEASE GIVE
THIS BOOKLET TO YOUR CUSTOMER
Page 1
Advertisement
Related Manuals for Torklift D3102
Summary of Contents for Torklift D3102
- Page 1 Minor movement (or settling) can occur in some incidental harsh driving conditions (on or off road). A rubber bed mat is not a requirement to maintain the lifetime warranty on a Torklift sys- tem, but a strong recommendation, simply as a safety precaution to protect the truck bed, the bottom of the camper and to give the camper additional support.
- Page 2 INSTALLATION INSTRUCTIONS FOR 2010-2011 TRUCKS DRIVERS SIDE REMOVE THESE TWO BOLTS PASSENGERS SIDE TIE-DOWN PLATES GOES OVER THE FRAME. RE- INSERT FACTORY BOLTS THROUGH HOLES PASSENGER SIDE WHERE THE OVAL HOLE AND THE TIE-DOWN PLATE MEET, A 1” X 2” PLATE WASHER IS NEEDED.
- Page 3 5. Install the Torklift supplied 1/2” x 2” hex bolt with two 1/2” flat washers into the factory slotted hole (as seen in photo B). Install ONE 1” x 2” plate washer ,1/2” lock washer and a 1/2” nut on the hex bolt DO NOT TIGHTEN.
- Page 4 ILLUSTRATION DIAGRAM LOOSEN THIS LARGE FACTORY BOLT. Photo A DO NOT REMOVE REAR CORNER BUMPER SUPPORT BRACKET A 1/2” x 2” hex bolt will need to be installed in this hole. Photo B REMOVE THESE FASTENERS Photo C Tiedown receiver plate to be installed between frame and bumper support brack- (SUPPLIED 2”...
- Page 5 They are designed for each make and mod- el to fit tight to the frame so as not to compromise ground clearance. TorkLift tie downs are not universal ‘one size fits all’ therefore all the problems with correct fit for each particular application have been eliminated.
- Page 6 TORKLIFT’S BOLT FISHING GUIDE Your guide to understanding the installation of our frame mounted tie downs. Note: The hardware may vary as to what is being fished along Coiled End of Bolt Fisher with the bolt. In this instance a 1” X 2” plate washer is being fished along with the hex bolt.
- Page 7 INSTRUCTIONS On one end of each of your tiedown inserts is a triangular plate referred to by Torklift as a bullet plate. Your tiedown inserts should be installed with the shorter side of the bullet plate facing away from each other, i.e..
- Page 8 TURNBUCKLE SPRINGLOAD OPTIONS CONTACT YOUR LOCAL DEALER FOR MORE DETAILS Torklift requires all 4 tiedown points to be spring loaded in order to qualify for our manufacturer’s Industry Exclusive Camper Anchor and Truck Frame Warranty BASIC SPRINGLOAD KIT - S9000 Includes 2 External Springload Units &...
- Page 9 Minor movement (or settling) can occur in some incidental harsh driving conditions (on or off road). A rubber bed mat is not a requirement to maintain the lifetime warranty on a Torklift system, but a strong reccommendation simply as a safety precaution to protect the truck bed, the bottom of the camper and to give the camper additional support.
- Page 10 Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limita- tion or exclusion may not apply to you. Any damage to Torklift products as a result of misuse, abuse, neglect, accident, im- proper installation or any use violative of instructions furnished by Torklift WILL VOID THE WARRANTY.
- Page 11 To Fax: Send copies of the questionnaire, warranty card and receipt to 253- 854-8003 To E-mail: Send copies of the questionnaire, warranty card and receipt to warranty@torklift.com To Mail: Send to Torklift International 322 Railroad Ave., Kent, WA 98032 Page 11...
- Page 12 OFFICIAL WARRANTY REGISTRATION CARD PLEASE FILL OUT THIS FORM COMPLETELY AND RETURN TO TORKLIFT WITHIN 30 DAYS OF PURCHASE ACCOMPANIED BY A COPY OF YOUR ORIGINAL RECEIPT TODAY’S DATE: _________________________ 1. PART(S) PURCHASED PART#: ___________________ PART#: _______________________ PART#: ___________________ PART#: _______________________ 2.
