- Page 1 IMPORTANT OWNER-OPERATOR INSTALLATION INSTRUCTIONS D2100 REVISED vers6 BY: JL 8/6/15 TECH SUPPORT (800) 246-8132 AFTER INSTALL, PLEASE GIVE THIS BOOKLET TO YOUR CUSTOMER...
- Page 2 Warnings Truck Bed and Camper Protection Torklift does not recommend installing your camper on top of a plastic bed liner (or other compressible material such as foam). These materials can act as a spring, causing increased vertical truck camper movement independent of the vehicle. Plastic bed liners can slide on the truck bed surface, and the truck camper can slide on top of the bed liner.
- Page 3 ADDENDUM Depending on the year of your vehicle, the emergency brake line will be positioned either above or below the tie down receiver. To prevent any possible emergency brake line damage, we have provided you with a 3/8” piece of tubing to wrap around the line and four tie straps to secure the tubing.
-
Page 4: Installation Instructions

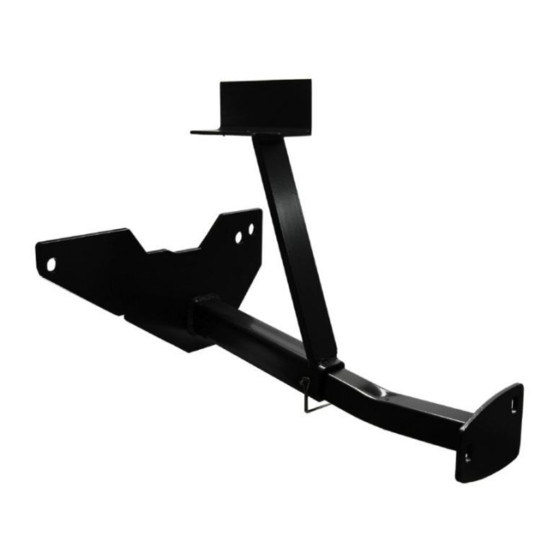

D2100 PARTS INVENTORY 4- 1/2” NUTS 2- TIEDOWN RECEIVERS 2- TIEDOWN BENT INSERTS 2- M10 x 1.5 x 40 HEX BOLT 4- 1/2” X 2” HEX BOLTS 8- 1/2” STAR WASHERS 12- 1/2” FLAT WASHERS 2- 1/4” PINS 6- 1/2” LOCK WASHERS 1- 1/2”... - Page 5 ILLUSTRATED DIAGRAM *NOTE: The included tie down inserts come with 2 predrilled pinholes. When hooking up your camper, either hole may be used providing there is a MINIMUM of 2” clearance between the chain/turnbuckle attaching assembly and the truck bed wall. THERE ARE ALSO 2 PRE-PUNCHED HOLES LOCATED ON THE TRIANGULAR BULLET PLATE ON THE END OF EACH TIEDOWN INSERT AND WHILE EITHER OF THE TWO HOLES CAN BE USED, THE HOLE THAT PROVIDES THE GREATEST ANGLE IS PREFERRED.
- Page 6 INSTRUCTIONS FOR MAINTENANCE OF POLISHED STAINLESS STEEL PRODUCTS Torklift utilizes quality grade 304 stainless steel in this product. 304 stainless steel is well known for its anti corrosive properties, however in some environments such as coastal regions or when in contact with some road chemicals, corrosion may occur.
- Page 7 TORKLIFT’S BOLT FISHING GUIDE Your guide to understanding the installation of our frame mounted tie downs. Note: The hardware may vary as to -Coiled End of Bolt Fisher- what is being fished along with the bolt. In this instance a 1” X 2” plate washer is being fished along with the hex bolt.
- Page 8 On one end of each of your tie down inserts is a triangular plate referred to by Torklift as a bullet plate. Your tie down inserts should be installed with the shorter side of the bullet plate facing away from each other, i.e.. The shorter side of the front insert should point to the front of the truck and the shorter side of the rear insert should point towards the rear of the truck.
- Page 9 If your camper does not come with Rubber Bumpers on the front lower portion of the camper, installing Rubber Bumpers (Torklift has Rubber Bumpers available Part A7001) or using a block of wood such as a 2 x 4 in the bed, will prevent the camper from damaging the front bulk head of the truck bed.
-
Page 10: Warranty Information
Warranty Information 322 Railroad Ave North, Kent, WA 98032 Torklift will require proof of purchase to register, with pictures of any defective product before issuing a replacement. Torklift will not register any product without proof of purchase, which can be faxed, scanned, emailed, or mailed to the information provided below. - Page 11 Thank you for making TorkLift your choice for truck, camper packages and accessories for your vehicle. By choosing TorkLift products, you have chosen a company that has been serving the RV industry for nearly 40 years and whose name has become synonymous with strength, quality and advanced design and installation.
- Page 12 They are designed for each make and model to fit tight to the frame so as not to compromise ground clearance. TorkLift tie downs are not universal ‘one size fits all’ therefore all the problems with correct fit for each particular application have been eliminated.
- Page 13 OFFICIAL WARRANTY REGISTRATION CARD PLEASE FILL OUT THIS FORM COMPLETELY AND RETURN TO TORKLIFT WITHIN 30 DAYS OF PURCHASE ACCOMPANIED BY A COPY OF YOUR ORIGINAL RECEIPT TODAY’S DATE: _________________________ 1. PART(S) PURCHASED PART#: ___________________ PART#: _______________________ PART#: ___________________ PART#: _______________________ 2.
