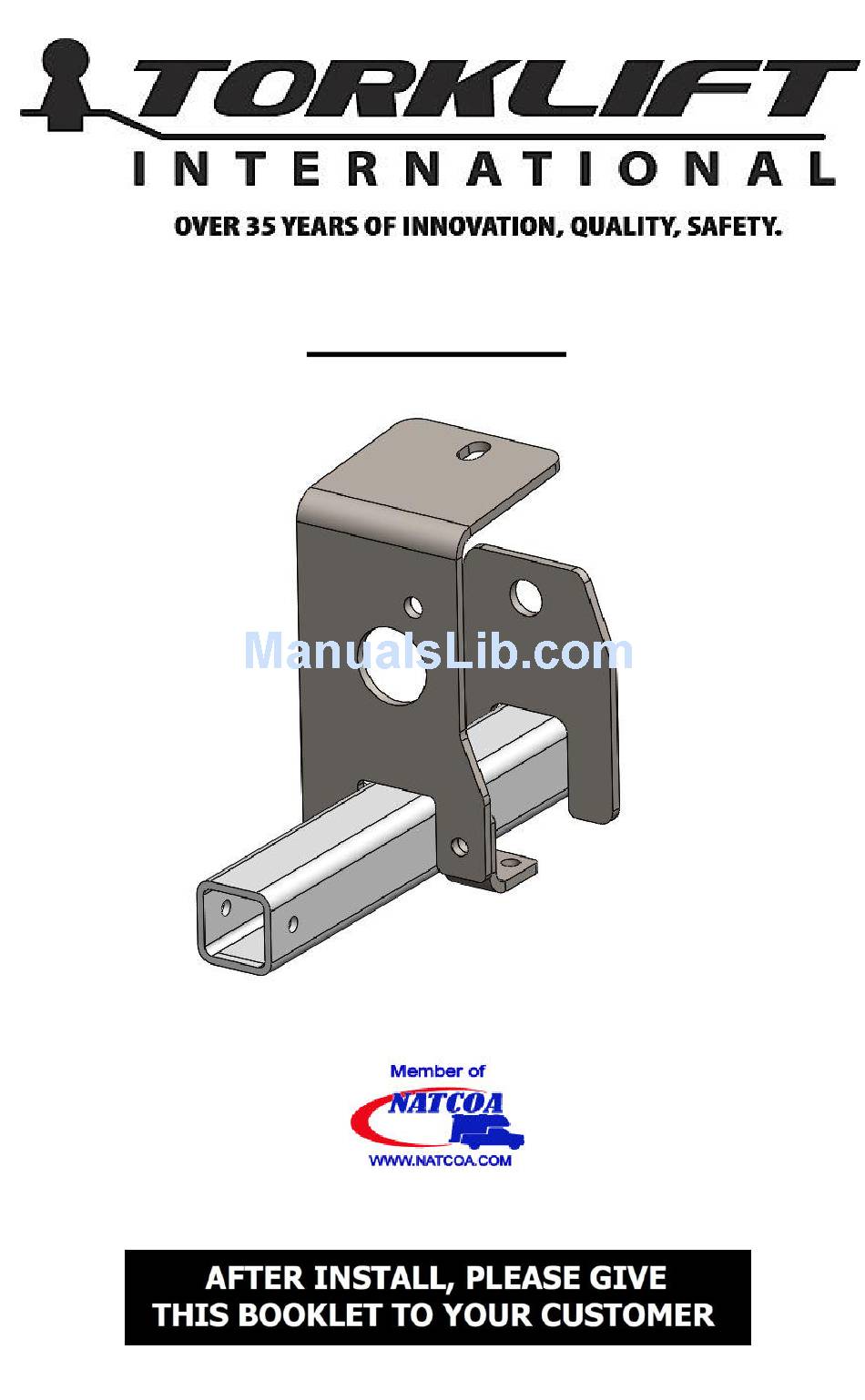

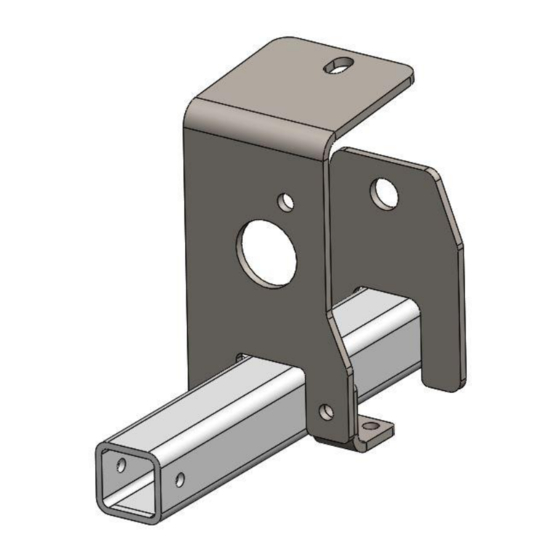

- Page 1 IMPORTANT OWNER-OPERATOR INSTALLATION INSTRUCTIONS Part F2012 Version 8 (8/7/2015) BY: JL TECH SUPPORT (800) 246-8132...
- Page 2 Warnings Truck Bed and Camper Protection Torklift does not recommend installing your camper on top of a plastic bed liner (or other compressible material such as foam). These materials can act as a spring, causing increased vertical truck camper movement independent of the vehicle. Plastic bed liners can slide on the truck bed surface, and the truck camper can slide on top of the bed liner.
- Page 3 Parts Inventory Item Image Item Description Quantity Top Plate (not mirrored) F2012 Receiver 17.875” Straight Insert 1/2”-13 x 1-1/2” Grade 8 Hex Bolt 1/2” USS Flat Washer 1/2” Lock Washer 1/2”-13 Grade 8 Hex Nut 7/16”-14 x 1-3/4” Thin Head...
- Page 4 7/16” SAE Flat Washer 7/16” Lock Washer 7/16”-14 Grade 8 Hex Nut 3/8”-16 x 1-1/4” Grade 5 Hex Bolt 3/8” USS Flat Washer 3/8” Grade 5 Lock Washer 3/8”-16 Grade 5 Hex Nut 3/4” ID x 2” OD Flat Washer M20 x 2.5 Locking Thin Hex Nut 2.25”...
- Page 5 Step One: Begin on the driver side of the vehicle by locating the forward most leaf spring perch, just to the rear of the cab. Identify whether or not your vehicle has a parking brake cable bracket installed as shown in photo 1.1 below. Parking Brake Cable Bracket Photo 1.1 If a parking brake bracket IS installed, remove the bolt...
- Page 6 Step Two: Slide the top plate from the top down between the parking brake cables and leaf spring hanger, and then place the top plate over the head of the leaf spring bolt as shown in figure 2.1. Figure 2.1 Install one 1/2”-13 x 1-1/2”...
- Page 7 Figure 2.2 Page 3...
- Page 8 Step 3: Note: For Model Year 2008-2010 trucks, use the small hole in the Top Plate as a template to drill a 7/16” hole through the leaf spring hanger bracket just above and to the right of the leaf spring bolt. For 2011 and newer model trucks, the 7/16”...
- Page 9 Step 4: Place a 3/4” Flat Washer on the protruding threads of the leaf spring bolt. Install one of the F2012 Receivers over the washer and secure with one M20 x 2.5 Thin Locking Hex Nut. Reference figure 4.1 below for the correct hardware assembly and leave the nut loose at this time.
- Page 10 Step 5: Connect the F2012 Receiver to the Top Plate using two 3/8”-16 x 1-1/4” Hex Bolts, four 3/8” Flat Washers, two 3/8” Lock Washers, and two 3/8”-16 Hex Nuts. Reference Figure 5.1 below and leave the hardware hand tight as this time.
- Page 11 Step 6: a) First, torque the 1/2”-13 x 1-1/2” Grade 8 Hex Bolt to 75 ft-lbs (101 N m). b) Next, torque the 7/16”-14 x 1-1/2” Grade 8 Hex Bolt to 40ft-lbs (54 N m) c) Next, torque the M20 x 2.5mm Thin Hex Nut to approximately 70 ft-lbs (95 N m).
- Page 12 Step 7: (DRIVER SIDE ONLY) Connect the parking brake bracket to the F2012 Receiver using one 3/8”-16 x 1-1/4” Hex Bolt, two 3/8” Flat Washers, one 3/8” Lock Washer, and one 3/8” Hex Nut. Make sure the cable is routed over the top of the receiver tube and torque to 20 ft-lbs.
- Page 13 On one end of each of your tie down inserts is a triangular plate referred to by Torklift as a bullet plate. In most cases, the tie down inserts should be installed with the shorter side of the bullet plate facing away from each other, i.e..
-
Page 14: Warranty Information
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Any damage to Torklift products as a result of misuse, abuse, neglect, accident, improper installation or any use violative of instructions furnished by Torklift or WHEN USED IN ANY COMMERCIAL APPLICATION WILL VOID THE WARRANTY. - Page 15 To Fax: Send copies of the questionnaire, warranty card and receipt to 253-854-8003 To E-mail: Send copies of the questionnaire, warranty card and receipt to warranty@torklift.com To Mail: Send to Torklift International 322 Railroad Ave N, Kent, WA 98032 Page...
- Page 16 OFFICIAL WARRANTY REGISTRATION CARD PLEASE FILL OUT THIS FORM COMPLETELY AND RETURN TO TORKLIFT WITHIN 30 DAYS OF PURCHASE ACCOMPANIED BY A COPY OF YOUR ORIGINAL RECEIPT Page...
