Page 2

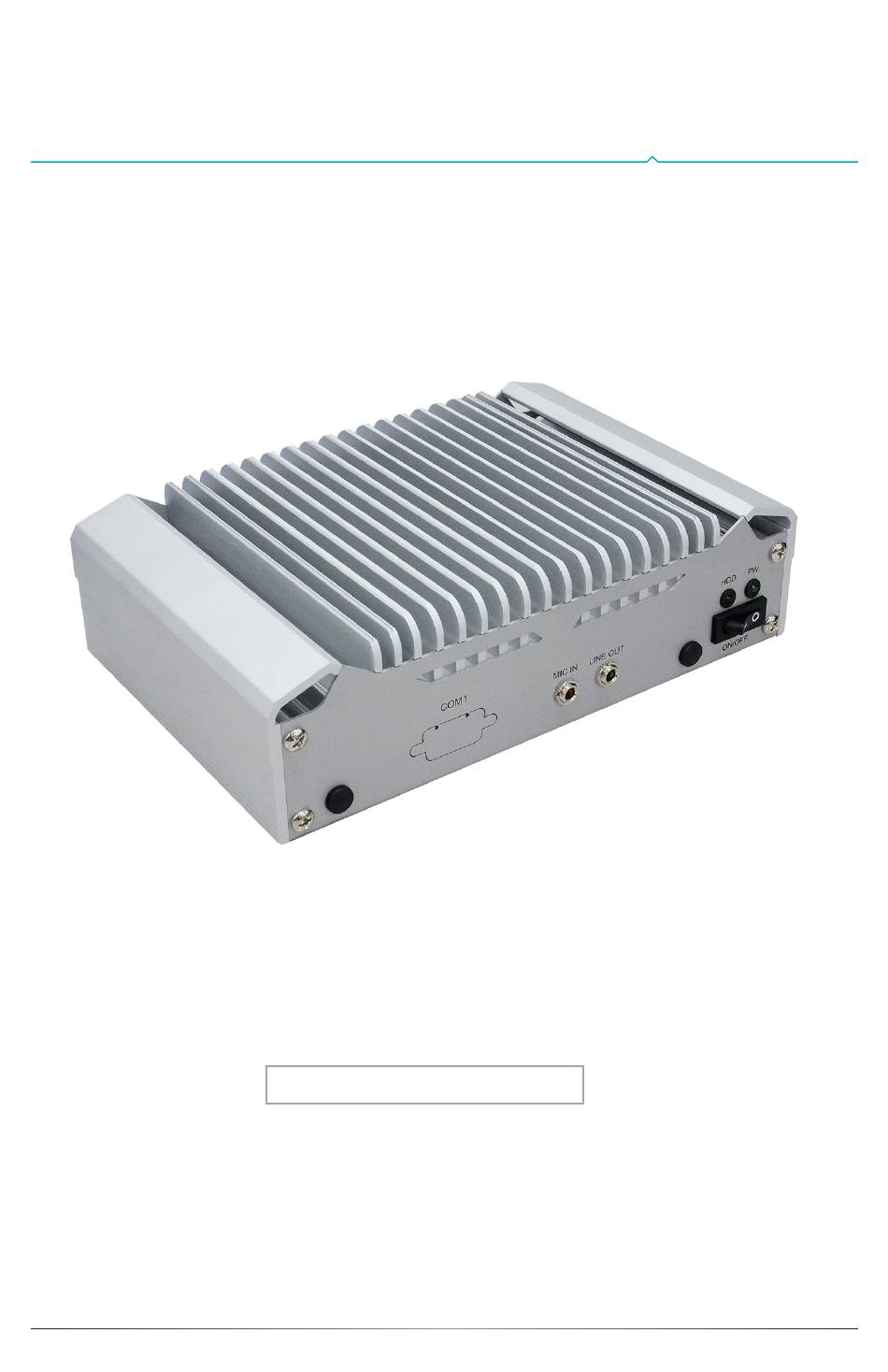

Product Overview Front View Mic-In HDD LED Line-Out Power LED Antenna Hole Power Button COM1 Quick Installation Guide | EC70A-ADN...
Page 3
Rear View LAN1~3 HDMI Type-C DP Alt. Mode Grounding Hole DC Jack USB 2.0 USB 3.2 Quick Installation Guide | EC70A-ADN...
Page 4
Remove the screws and put them in a safe place for later use. Lift the bottom cover upward to open the system. Step 2: The heat shield and the board can be easily accessed after the chassis cover is removed. Quick Installation Guide | EC70A-ADN...
Page 5
Remove the 3 screws of the heat shield and put them in a safe place for later use. Remove the heat shield and the SO-DIMM socket is readily accessible. Retention Notch Notch DDR5 SO-DIMM Retention Clip Socket Top View 4 5 ° Quick Installation Guide | EC70A-ADN Step 1...
Page 6
Inspect that the clip sits in the notch. If not, please pull the clips outward, release and remove the card, and mount it again. Step 3 Quick Installation Guide | EC70A-ADN...
Page 7
Cable Antenna Connector Washer DFI reserves the right to change the specifications at any time prior to the product's release. This QR may be based on the product’s revision. For more documentation and drivers, please visit the download page at www.dfi.com/...
