Soundoff Signal GHOST EGHSTE5 B Series Quick Start Manual

GHOST® SINGLE RECESS MOUNT LIGHT
ECE CERTIFIED
SINGLE LIGHT
EGHSTE5(x)B - Black
EGHSTE5(x)W - White
EGHSTE5(x)C - Chrome
GHOST® SINGLE RECESS MOUNT LIGHT
XYLEX LENS - ECE CERTIFIED
SINGLE LIGHT
EGHSTE5(x)B-EU - Black
EGHSTE5(x)W-EU - White
EGHSTE5(x)C-EU - Chrome
Please see reverse for
Technical Specifications
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat
build-up and fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle
Owner's Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring
configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal
or local chassis ground (-) must be sized to supply at least 125% of max. current and properly fused at
power source.
•Install protective grommets when routing wire through firewall or metal.
1.800.338.7337 / www.soundoffsignal.com
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage. To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at
www.soundoffsignal.com/support/. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. or after hours 5 p.m. to 8 p.m. EST
at 1.800338.7337 (press #4 to skip the automated message). Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsigal.com.
S U P E R I O R C U S TO M E R R E L AT I O N S H I P S . S M A RT LY D E S I G N E D L I G H T I N G & E L E C T R O N I C S O L U T I O N S .

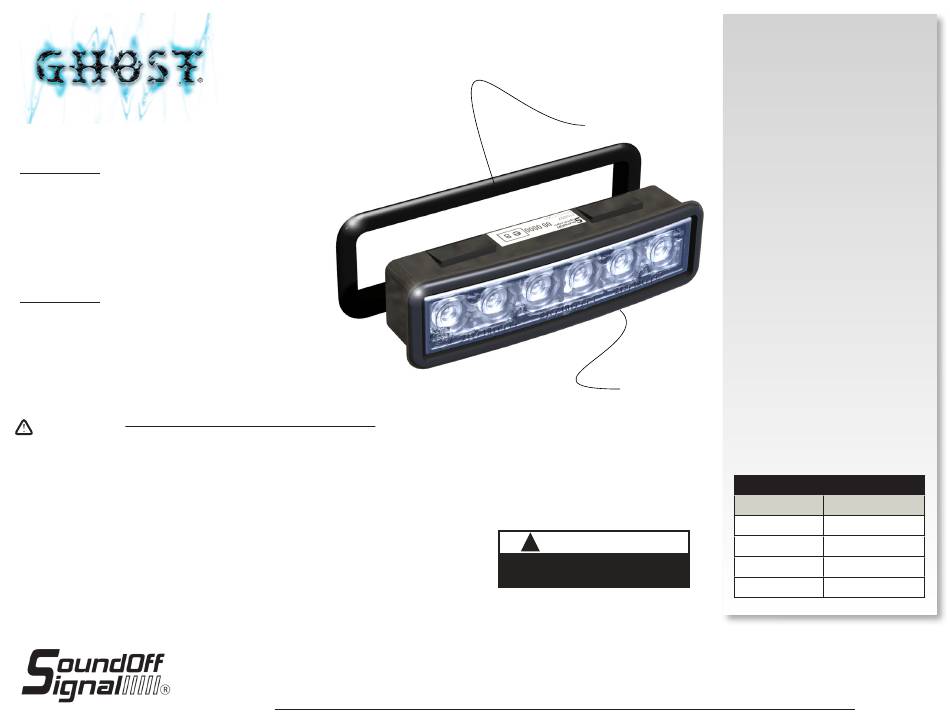

GASKET
Note: Lens shown is
LIGHT
representative only.
ASSEMBLY
WARNING
!
This product contains high intensity LED devices. To
prevent eye damage, DO NOT stare into the light
beam at close range.
NOTICE:
INSTALLATION:
1. Determine a clean, flat location on the
vehicle to mount the GHOST light.
2. Using template on reverse side, mark and
drill holes in 4 corners. Holes to be Ø0.46"
(approx. Ø15/32").
3. Carefully cut sheet metal and ensure there
are no sharp edges.
4. Press gasket into opening.
5. Make electrical connections.
6. Test light.
7. Press light into gasket.
OPERATION:
WIRE CONNECTIONS
See setup procedure on second page.
The single GHOST comes equipped with
an internal flasher with 3 user selectable
patterns that can be synchronized either
alternating or simultaneous with up to three
other lights.
1. Connect the GHOST BLACK wire to a
good, convenient ground.
2. Connect the GHOST RED wire to one side
of a user supplied on/off switch. Connect the
other side of the switch, through a 5Amp
fuse, to a source of +10-30Vdc.
3. Cruise mode is activated by applying
power to BROWN wire while RED wire is
powered. NOTE: Cruise mode is STEADY-ON
at 20% light output.
4. To sync lights and make pattern
selections see reverse side.
WIRE HOOK-UP TABLE
WIRE COLOR: CONNECT TO:
RED +10-30Vdc
BLACK Ground (-)
WHITE ID/Pattern Select
BROWN WIRE +10-30Vdc
EGHSTE5(xx) 07.17
