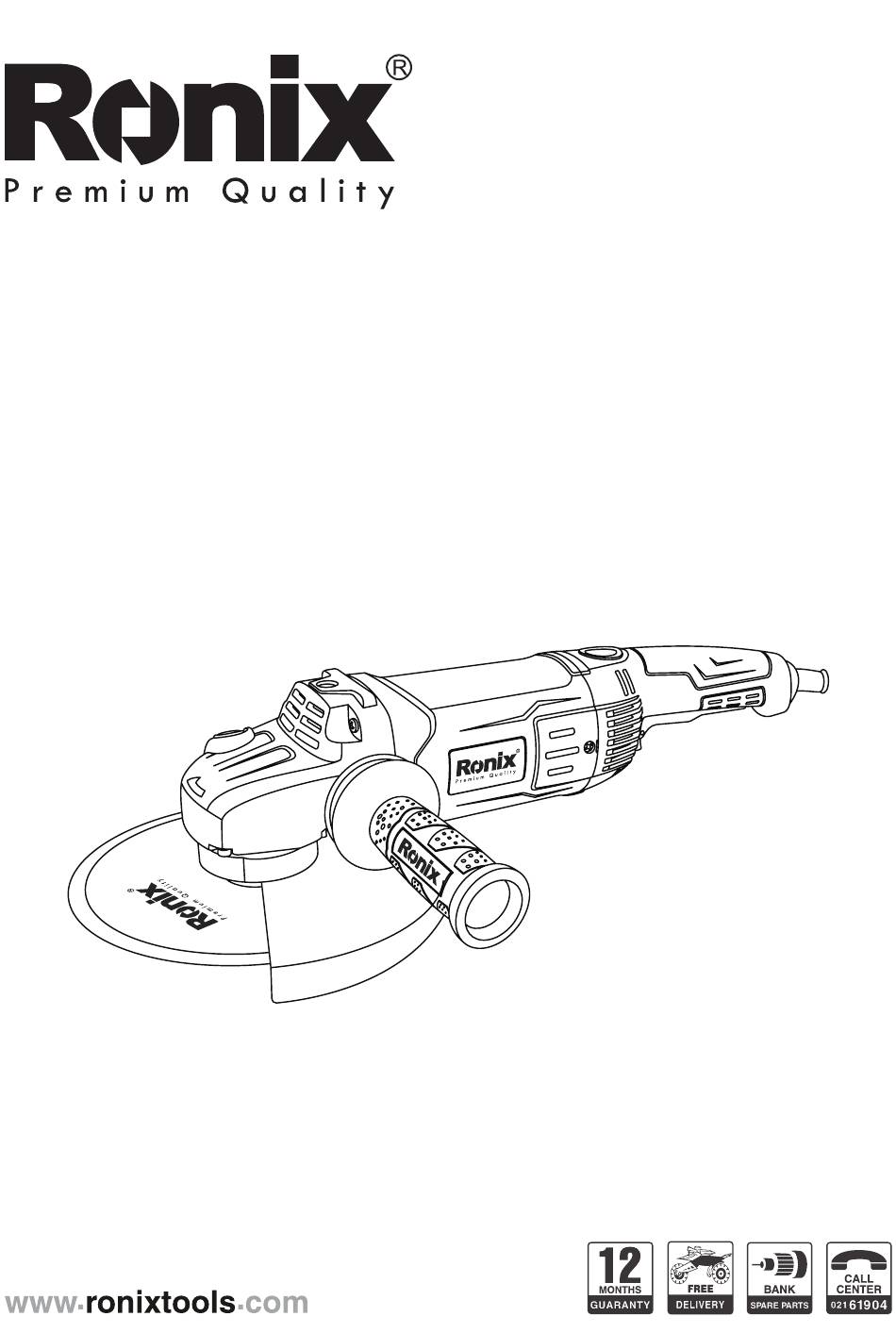

- Page 1 ANGLE GRINDER 3241V...
-
Page 2: Specification
SPECIFICATION Model 3241V Power 2400W Voltage 220V Frequency 60Hz No load speed 6000RPM Disc Diameter 230mm Net weight 5.3Kg Side handle,wheel Accessories guard 230mm, 1pair carbon brush PARTS LIST USER MANUAL... -
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and or serious injury. - Save all warnings and instructions for future reference. - The term “power tool”... -
Page 4: Personal Safety
or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increased the risk of electric shock. - When operating a power tool outdoors, use an extension cord suitable for outdoor use. Using a cord suitable for outdoor use will reduce the risk of electric shock. - Page 5 enables better control of the power tool in unexpected situations. - Dress properly. Don’t wear loose clothing or jewelry. Keep your hair, clothing, and gloves away from moving parts. Loose cloths, jewelry or long hair can be caught in moving parts. - If devices are provided for connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 6: Specific Safety Rules
tools with sharp cutting edges are less likely to bind and are easier to control. - Use the power tool, accessories and tool bits etc. in accordance with the instruction, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. - Page 7 Replace cracked or damaged wheel immediately. Run the tool (with guard) at no load for about a minute, holding tool away from others. If wheel is flawed, it will likely separate during this test. - Use only flanges specified for this tool. - Be careful not to damage the spindle, the flange (especially installing surface) and the lock nut.
-
Page 8: Functional Description
wood could expose user to dust containing hazardous substances. Use appropriate respiratory protection. WARNING! MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. - Page 9 ASSEMBLY CAUTION: Always be sure that the tool is switched off and unplugged before carrying out any work on the tool. INSTALLING SIDE GRIP (HANDLE) CAUTION: - Always be sure that the side grip is installed securely before operation. - Screw the side grip securely on the position of the tool as shown in the figure.
-
Page 10: Operation
- To remove wheel guard, follow the installation procedure in reverse. INSTALLING OR REMOVING DEPRESSED CENTER GRINDING WHEEL/MULTI-DISC WARNING! - Always use supplied guard when depressed center grinding wheel/Multi-disc is on tool. Wheel can shatter during use and guard helps to reduce chances of personal injury. - Mount the inner flange onto the spindle. - Page 11 of the tool applies adequate pressure. Forcing and excessive pressure could cause dangerous wheel breakage. - ALWAYS replace wheel if tool is dropped while grinding. - NEVER bang or hit grinding disc or wheel onto work. - Avoid bouncing and snagging the wheel, especially when working corners, sharp edges etc.
-
Page 12: Maintenance
or it will cut into the work piece. Once the edge of the wheel has been rounded off by use, the wheel may be worked in both A and B direction. MAINTENANCE CAUTION: Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance.
