Summary of Contents for Kaadas KWFV01

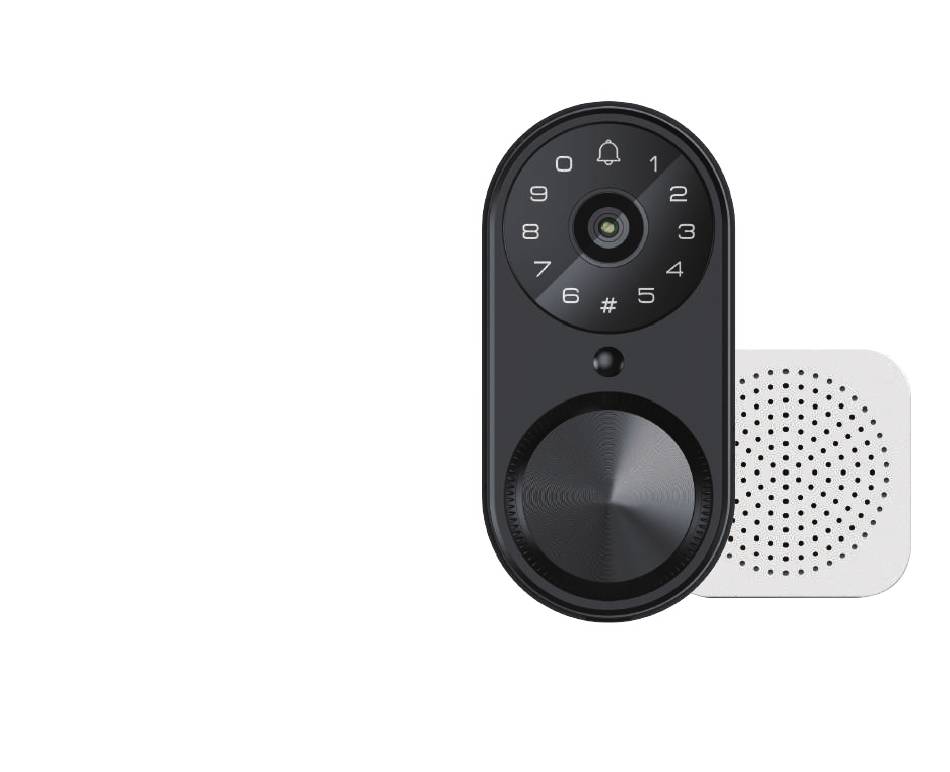

- Page 1 KWFV01 Video Smart Lock Installation Guide / Quick Start Guide Thank you for purchasing our products. Please review this manual thoroughly before operating your device. All pictures in this manual are for illustration purpose only. Actual product may vary due to product upgrade.
- Page 3 QUICK START GUIDE Following the Download KK installation instruction Home App. to install the smart lock. Calibrate the smart lock Register and Log in KK and Complete Bluetooth Home App, add device & Wi-Fi settings in the by scanning QR code on App.
-
Page 4: Interior Assembly
AT A GLANCE Exterior Assembly Interior Assembly Battery Cover Touchscreen Keypad Battery Cover Button PIR Sensor Keyhole Cover Reset Keyhole Button Privacy Button Thumb Turn Type-C Charge Port... - Page 5 DEFINITIONS • Wrong Entry Limit • Battery Indicator (#) After 5 unsuccessful attempts at entering an invalid PIN code, the The Battery Indicator will turn Red if the battery is running lower than unit will shut down for 3 minutes. 20%.
- Page 6 HOW TO LOCK / UNLOCK UNLOCK the door from outside UNLOCK the door from inside Key Unlock Rotate the thumb turn to Unlock position. LOCK the door from outside LOCK the door from inside Auto Lock Mode One touch Lock Key Lock Auto Lock Mode Rotate the thumb turn...
-
Page 7: Installation Overview
INSTALLATION OVERVIEW Battery Cover (G-1) Interior Assembly (G) Mounting Exterior Assembly plate (E) Screw (F) Exterior Assembly Mounting Latch (C) plate Screws (J) Interior Assembly Screws (K) Strike (D) Backup key (A) Reinforcement plate (D-1) Latch Screws Door Sensor Door Strike Screws Screws (L) Sensor(M) -
Page 8: Parts List
Parts List Exterior Assembly x1 Strike x1 Backup Key x2 Latch x1 ⅜ ¾ 2 Drive-In Collar (Optional) Reinforcement Plate x1 (optional) Interior Battery Mounting Plate x1 Exterior Assembly Strike Screws x4 Assembly x1 Cover x1 Screw (Optional) Latch Screws x2 Interior Assembly Door Sensor x1 Mounting plate Screws x4... - Page 9 STEP Prepare the door and check dimensions 2-3/8" or 2-3/4" (60 or 70mm) Measure to Measure to confirm confirm that the that the backset is hole in the door is either 2-3/8" or 1-1/2" or 2-1/8" 1-1/2’’ or 2-1/8" 2-3/4" (60 or 70mm) (38mm or 54mm) 1"...
- Page 10 STEP Install the latch and strike Determine backset and adjust the latch No adjustment is required. Proceed to next step. Slotted hole is NOT centered. Hold the latch in front of the door hole, Rotate and pull the with the latch face flush against the latch as shown to door edge.
- Page 11 STEP Install the latch and strike Use a screwdriver to test if deadbolt works smoothly. Install strike on the door frame. IMPORTANT: Make sure the hole in door frame is (Optional) drilled a minimum of 1" (25mm) deep.
-
Page 12: Install Exterior Assembly
STEP Install exterior assembly Measure the diameter of the hole in the door. IMPORTANT: 1-1/2" (38mm) Before installation, make sure the latch is fully retracted (in the unlocked position) 1-1/2" or 2-1/8" Remove the spacer (38 or 54mm) Unlocked Locked 2-1/8"... -
Page 13: Install Interior Assembly
STEP Install interior assembly Press the battery cover button on the top and remove from right and left sides. Keep the thumb turn in Vertical position Firstly insert the cable connector to the socket. Push the connector in firmly and completely. Then connect RF cable with each other. - Page 14 Keep the thumb turn in vertical position, push the cable Secure the interior assembly with 3 screws. and RF cable back to the hole of the mounting plate and install the interior assembly. Interior Assembly Screws (K) Load the Li-battery into the battery compartment. Note: Do not install the battery cover, until you have scanned the QR code via KK Home App to add it to the device list.
- Page 15 STEP Door sensor should be mounted within 1’’ Install Door Sensor IMPORTANT: (25mm) from the edge of your door, within 1”(25mm) from the top of the interior assembly. Method 1 Method 2 <1” (25mm) <1” (25mm)
- Page 16 STEP Add Chime ( Optional ) A. In KK Home App, Go to the device to add Chime, B. Press and hold the button on the Chime for 5 seconds “Settings” “Accessory” “Add Accessories” or “+”. to enter pairing mode. Settings Accessory C.
- Page 17 Download KK Home App from the App store or Google Play. Quick Set Up Tips • Register an account in KK Home App • Scan QR code on the inside panel to add KWFV01 to the device list • Follow the setup steps to get started. IMPORTANT: The Auto Lock is disabled by default, please complete the •...
-
Page 18: Fcc Statement
FCC Statement ISED Statement This equipment has been tested and found to comply with the limits for English:This device contains licence-exempt transmitter(s)/receiver(s) that a Class B digital device, pursuant to part 15 of the FCC Rules. These comply with Innovation, Science and Economic Development Canada’s limits are designed to provide reasonable protection against harmful licence-exempt RSS(s). - Page 19 Warnings Failure to follow the below instructions could result in damage to the Do not install batteries until the lock is completely installed on door. product and void the factory warranty. • User Pin Codes: Can be 4-10 digits and can be set up in KK Home App. This manufacturer advises that no lock can provide complete security by •...
