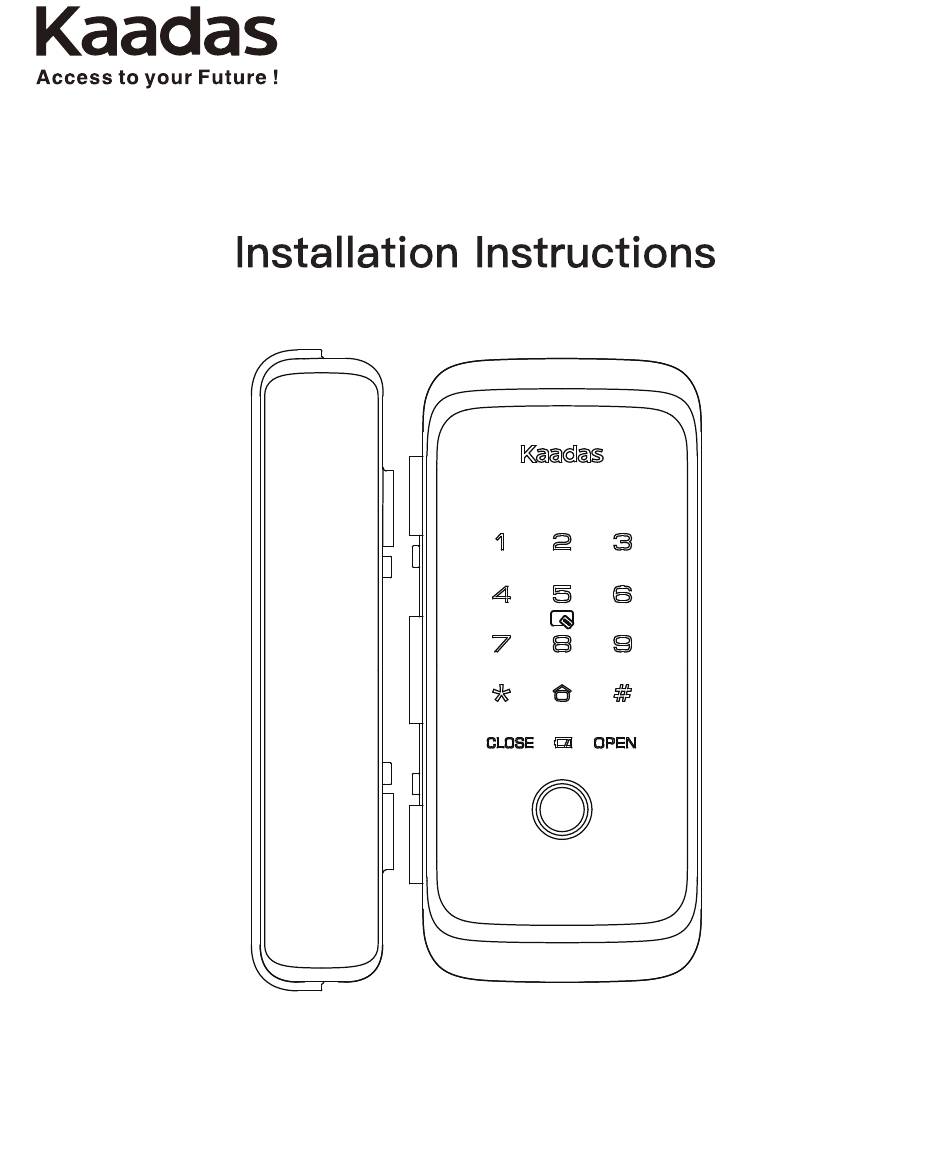

- Page 1 R8-5GL...
-
Page 3: Table Of Contents
CONTENT Installation overview ............................01 What’s Included ..............................Preparing for Installation ..........................Installation ..............................04-06 Reverse lock direction on the glass door (Optional) ................. Information ................................ How to use ..............................09-10 Definitions................................Menu Table ................................ Lock Operation ............................12-15... -
Page 4: Installation Overview
Installation overview Exploded-view Drawing Inside panel Hole-free Glass Door Clamp Shim Outside panel Inside Outside Back strike cover Strike shim Strike clamp Front strike cover... -
Page 5: What's Included
What’s Included Outside panel Inside panel Clamp Shim Front strike Strike Strike Back strike cover clamp shim cover Mounting Screws Mounting Screws M3*10 mm M4*6 mm... -
Page 6: Preparing For Installation
Preparing for Installation 1. Confirm the installation position and clean the glass surface. 2. Check whether the door is left handed or right handed before installation. 3. The lock can be installed right or left handed, upward or downward through the door opening direction (Batteries need to be reinstall to activate the built-in gravity sensor). -
Page 7: Installation
Installation 4. Remove the protective film of the double-sided tape from the two shims. Align the shims to the edge of glass door and stick it on the inside. Remove the double-sided tape, Align the door stick it on the inner side of the edge with two door panel shimes. - Page 8 Installation 6. Get the inside panel on the clamp and fix screws. Mounting 4 pcs M4*6 screws...
- Page 9 Installation 7. Install the strike cover Push Mounting 4 pcs M3*10 screws Install back Mounting 4 pcs strike cover M4*6 screws...
-
Page 10: Reverse Lock Direction On The Glass Door (Optional)
Reverse lock direction on the glass door (Optional) Note: Reversing lock requires to disassemble outside panel assembly, the outside panel will also need to be changed to the opposite direction. After the clamp assembly was disassembled from the door, separate the outside panel assembly from the clamp. Rotate the outside panel 180°... -
Page 11: Information
Information Multi-function button Touch screen keypad Card reader area Battery cover Fingerprint sensor Type C USB emergency power supply Inside panel Outside panel 1. You can operate following the voice guide by multi-language 4. Temporary user PIN code (6-12 digit): there is only (Chinese/English/Spanish/Portuguese/ Russian). -
Page 12: How To Use
How to use Open from outdoor PIN code Card 1. Touch key pad by palm Place the enrolled card to lighten keypad properly on the card icon area 2. Enter the enrolled PIN code until one beep sound. with the end of “#”. Fingerprint Place the enrolled fingerprint properly on the fingerprint sensor... - Page 13 How to use Fake PIN code 8361813719214710 The random numbers can be added before and after the real PIN code, this prevents the user PIN code from being password exposed. The maximum length is 32 digits. Random digits Type C USB emergency power supply Type C USB emergency Power bank (Type C USB) power supply...
-
Page 14: Definitions
Definitions Master Mode: The Master Mode could be entered by entering “#+Master PIN Code+#” to programming the lock. Master PIN code: The Master PIN Code is used for unlock, programming and setting feature. The default Master PIN code [12345678] is required to be changed immediately after entering the menu at the first time. Auto locking: After unlocking successful by PIN Code/Card/Fingerprint/APP, it will automatically lock in auto locking mode once the door is closed. -
Page 15: Menu Table
Menu Table Press [1] Modify Master PIN code 1. Add User PIN Code 2. Add Temporary PIN Card 1. Delete a Single User PIN Code Press [2] 3. Add Fingerprint 2. Delete Codes 4. Add User Card 1. Delete a Single User Fingerprint 1.Modify Master PIN code 2. - Page 16 -Add Temporary User PIN Code Temporary user PIN code can be programmed through the master PIN code. 1. Touch the screen with your hand to activate. 2. Enter “#" and Master PIN Code with end of “#". 3. Enter “2" for user setting. Lock Response: Voice guide. 4.
-
Page 17: Language Setting
-Delete Temporary User PIN Code Temporary user PIN codes can be programmed through the Master PIN Code. 1. Touch the screen with your hand to activate. 2. Enter “#” and Master PIN Code with end of “#”. 3. Enter “3”to delete user. Lock Response: Voice guide. 4. -
Page 18: Volume Setting
-Volume Setting Volume setting can be programmed through the Master PIN code. 1. Touch the screen with your hand to activate. 2. Enter “#”and Master PIN Code with end of “#”. 3. Enter “4” for system setting. 4. Enter “2” for volume setting. 4.
