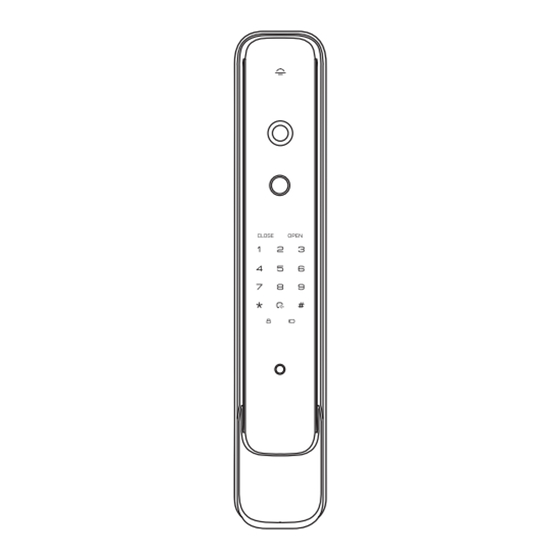

- Page 1 Unified Hotline: 400-800-5919 Model: K20 Pro Smart Lock with Camera and Display Screen User Manual www.kaadas.com...
- Page 2 Note: Dear customers, thank you for using our smart lock,Please check the package content and read the installation instruction carefully before you install this lock, and then install the product according to the instruction. Our company will not assume any responsibility for direct or indirect product problems, other hazards and losses if you don't follow the instruction to install.
-
Page 3: Table Of Contents
Table of content 1. Important Information 4. Set your smart lock 5. Use the smart lock Unlock from outside Safety Before set up Unlock by mechanical key Warning Enter master mode Unlock by back panel sensing handle Disposal of used battery and lock User set Turn on/off... -
Page 4: Important Information
Making sure replacement or maintenance are done by Do not forcibly disassemble the product to avoid alarm or professional person authorized by Kaadas damage to the product. Do not scratch the fingerprint sensor with sharp objects, it Your warranty may invalidate if you used accessories could cause permanent damage. -
Page 5: Install The Smart Lock
Install the smart lock Package list This Package list is for reference only, and all contents are subject to the actual packaging contents. Front panel Back panel Drilling Mortise strike plate Mechanical key (with rubber gasket) (with rubber gasket) template Screw pack Mounting plate... -
Page 6: Explosive View
Explosive view The explosive view helps you understand better the construction the lock. 1、Inside display screen 2、Lithium battery 3、M6 screw (2pcs) 4、Back panel components 5、M5 screw (2pcs) 6、mounting plate 7、Mortise 8、tailpiece 9、M6 connecting screw post (2pcs) 10、M5 connecting screw post (2pcs) 11、Front panel components 12、rubber plug 13、Mortise screw（4pcs）... -
Page 7: Before Installation
Before installation Latch bolt reversing 2. Take out latch bolt, turn it Check the door opening direction before 1. Use hex key to loosen the installation screws counterclockwise 180° to change latch bolt and remove the face plate. direction and put it back. Right Outward Right Inword opening... -
Page 8: Installation Steps
Installation steps Front WiFi connection Front cable WiFi connection cable connecting Tailpiece screw Front post Mortise panel connecting connection connection Front screw cable cable panel post connection (2pcs) cable connecting screw break-off post screw Note: Cut proper length tailpiece Note: Cut the proper length of break-off screw according to door thickness. - Page 9 Front Back panel WiFi connection connection cable cable interface Mortise connection cable interface Note: Cut the proper length of break-off screw for the thickness of the door Insert front panel connection cable Put back surplus length connection cables Check front panel and back and mortise connection cable to into the hole on the door and insert tailpiece panel after installation and...
-
Page 10: Overview
3 Overview Front panel Back panel Doorbell Video intercom camera Fingerprint sensor Open/Closed indicator Touchscreen keypad Awaken button Privacy mode Low battery indicator Reset button Close button indicator Inside display screen Open button Emergency thumb turn Awaken sensor Unlocking sensor Sensing handle Mechanical keyhole Type-C port... -
Page 11: Set Your Smart Lock
4 Set your smart lock Before you set up The lock system can enable/disable dual-verification. When dual-verification is enabled, it is required to verify two type of credentials at same time to unlock, while it only need to verify one type of credential to unlock when dual-verification is disabled. -
Page 12: Enter Master Mode
Enter Master mode Add One-time PIN code In Master mode 1. Touch the keypad with the palm to wake up the keypad, the keyboard light will light up; 2. Double press the * key, then enter the master Press 1 to enter user settings, then press 2 to enter adding PIN code, press the # key to confirm one-time PIN code, enter a new PIN code, press # to confirm, 3. -
Page 13: Turn On/Off Dual-Verification
In power saving mode, the video intercom function is Press 1 to enter user settings, then press 5 to enter deleting stopped. When the battery power of the door lock reaches user, and press 2 to delete all user PIN code, voice prompt: a certain low level, the door lock will automatically start Deletion successful, PIN code database is empty. -
Page 14: Camera Settings
迪仕智能”APP on your phone. If QR code on the battery cover can not be scanned, please select" manual add"，then Select Note: the searched device or enter K20 Pro at the top to go to the Wandering alarm function is turned off by default. To use corresponding add boot page. -
Page 15: Use The Smart Lock
5 Use the smart lock Unlock from outside(normal mode) Unlock by PIN code Unlock by fingerprint Fingerprint sensor Enter PIN code Touch the pad screen by palm to lighten keypad; Place the registered finger properly on the fingerprint sensor area. voice prompt“Verification successful, then entering the registered PIN code with end of [#]. -
Page 16: Unlock By Mechanical Key
Unlock by mechanical key Unlock/lock from inside You can unlock by mechanical key if you forget PIN code, the battery run out or system error occurs. 1. CLOSE button Insert the mechanical key and then rotate 180° to unlock. Press CLOSE button once to lock. Long press CLOSE button for 3 seconds to enable privacy mode. -
Page 17: Emergency Thumb Turn
Volume adjustment Emergency thumb turn When system is in voice mode, you When system functions is in abnormal, can long press button to enable you can rotate emergency thumb turn to mute mode after keypad is waked unlocking position to unlock from inside. up. -
Page 18: Inside Display Screen
6 Other functions Inside display screen 1. Press awaken button once to wake up display screen to see outside situation, press awaken button again can close Factory reset display screen and awaken button light. If you forget master PIN code, 2. -
Page 19: System Reboot
System reboot If you need to reboot the system, you can use a 5V power bank as an emergency power supply and power the door lock through the Type-C port. Type-C port Replace battery When voice prompt “low battery , please change battery in time”. please follow the prompt to change battery in time.
