Kaadas KS307 Installation Manual

Bluetooth fingerprint touchpad deadbolt smart lock

Advertisement

Quick Links

KS307
Bluetooth Fingerprint
Touchpad Deadbolt
Smart Lock
Installation Guide / Quick Start Guide
Thank you for purchasing our products. Please review this manual thoroughly before operating your device.
All pictures in this manual are for illustration purpose only. Actual product may vary due to product upgrade.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS307 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kaadas KS307

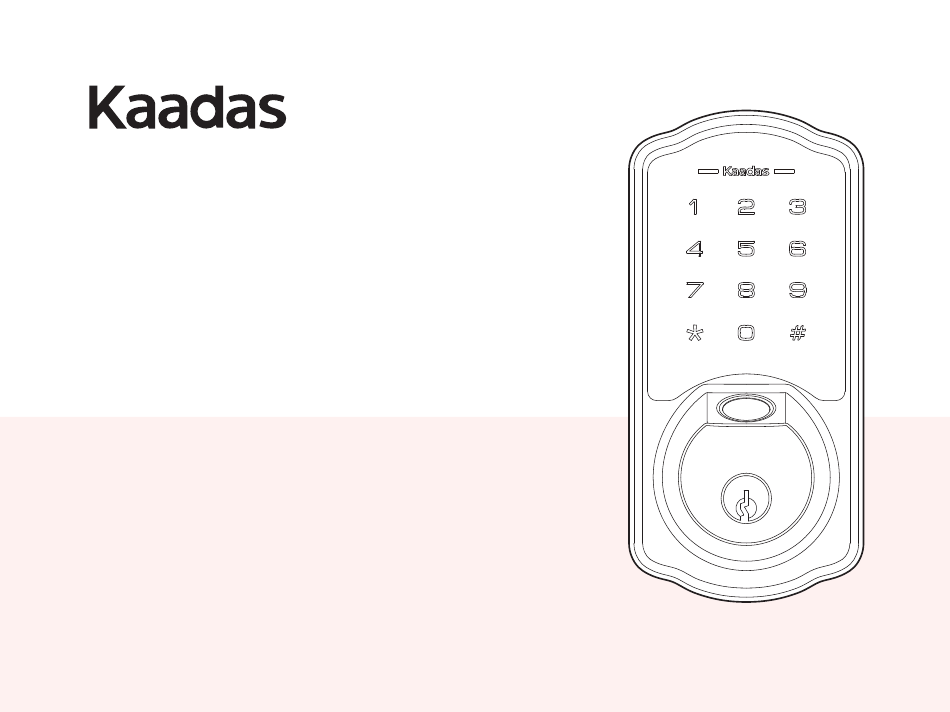

  • Page 1 KS307 Bluetooth Fingerprint Touchpad Deadbolt Smart Lock Installation Guide / Quick Start Guide Thank you for purchasing our products. Please review this manual thoroughly before operating your device. All pictures in this manual are for illustration purpose only. Actual product may vary due to product upgrade.
  • Page 3 Scan the QR Code to instructions to install download the Kaadas the smart lock. Home App. Register and login to the Kaadas Home App. Add Calibrate the smart lock the device to your and complete the Bluetooth setup in the account by scanning the QR Code found on the app.
  • Page 4 STEP 4: Install interior assembly Code Format STEP 5: Door Handing P 13 Quick Set Up Factory Default Settings Download Kaadas Home App Troubleshooting FCC Statement & Warnings IMPORTANT: Do not use an electronic scewdriver or drill during Do not load batteries until the lock installation.
  • Page 5 INSTALLATION GUIDE Battery Interior Cover (L) Assembly (G) Mounting Exterior Assembly Plate (E) Screw (F) (Optional) Exterior Assembly Mounting Plate Latch (C) Screws (J) Strike Plate (D) Interior Assembly Screws (K) Backup Key (A) Reinforcement Plate (D-1) (Optional) Latch Screws Strike Plate Screws (H)
  • Page 6: Parts List

    Parts List Exterior Assembly x1 Latch x1 Strike Plate x1 Backup Key x2 ⅜ ¾ 2 Drive-In Collar (Optional) Reinforcement Plate x1 (optional) Mounting Plate x1 Exterior Assembly Interior Assembly x1 Strike Plate Screws x2 Screw (Optional) Latch Screws x2 Interior Assembly Battery Cover x1 Reset Tool...
  • Page 7 STEP Prepare the door and check dimensions 2-3/8" or 2-3/4" (60 or 70mm) Measure to Measure to confirm confirm that the that the backset is bore hole is  either 2-3/8" or 1-1/2’’ or 2-1/8" 1-1/2" or 2-1/8" 2-3/4" (60 or 70mm) (38mm or 54mm).
  • Page 8 STEP Install the latch and strike Determine backset and adjust the latch. No adjustment is required. Proceed to next step. Slotted hole is NOT centered. Hold the latch in front of the bore hole, Rotate and pull the with the latch face flush against the latch as shown to door edge.
  • Page 9 Use a screwdriver to test if deadbolt works smoothly. IMPORTANT: Install strike on the door frame. Make sure the hole in door frame is drilled a minimum of 1" (25mm) deep. (Optional)
  • Page 10: Install Exterior Assembly

    STEP Install exterior assembly Measure the diameter of the hole in the door. IMPORTANT: 1-1/2" (38mm) Before installation, make sure the latch is fully retracted (in the unlocked position). 1-1/2" or 2-1/8" Remove the spacer (38 or 54mm) Unlocked Locked 2-1/8"...
  • Page 11: Install Interior Assembly

    STEP Install interior assembly Push the battery Insert the cable Keep the thumb turn in the vertical position cover up in the into the connector. and install the interior assembly. direction as Push the illustrated. connector in firmly until it is Horizontal completely attached.
  • Page 12: Door Handing

    STEP Door Handing IMPORTANT: This step is required and crucial for the lock after installation. While keeping your lock Use the Reset Tool to press and If the reset is successful, the unlocked, insert 4 AA alkaline hold the Reset Button for more latch bolt will extend on its own batteries into the battery pack.
  • Page 13: Interior Assembly

    QUICK START GUIDE At a Glance Exterior Assembly Interior Assembly Status Indicator Battery Cover Touchscreen Keypad Reset Button Fingerprint Sensor Thumb Turn Keyhole...
  • Page 14 Manually Auto Lock Mode Press any button In Auto Lock Mode, Rotate the thumb In Auto Lock Kaadas Home App on the keypad for the latch bolt is turn to the lock mode, the device 1 second to lock automatically position.
  • Page 15 Codes. Privacy Mode will be disabled automatically after the lock is can set the time delay for 30s, 60s, 120s and 180s in both Master unlocked using the thumb turn or Master PIN Code. Mode and the Kaadas Home App. Low Battery Alarm Wrong Entry PIN Code Limit If the battery indicator keeps flashing, the batteries are getting low.
  • Page 16: Code Format

    Code Format Programming Basics 1. Master PIN Code (4 to 10 digits): The default Master PIN Code is 12345678. Change the default Master PIN Code before programming other codes. 2. User PIN Code (4 to 10 digits): A total of 20 User PIN Codes (including One-Time PIN Code) can be programmed and stored in the lock.
  • Page 17: Quick Setup

    12345678 The default Master Code is IMPORTANT: Quick Set Up It is required that you change it to a code of your own before programming. Change Master New Master New Master Press Master PIN Code PIN Code PIN Code Code Wait for green light to flash Wait for green light to flash Wait for green light to flash...
  • Page 18 Silent Mode disabled Master Press when green light flashes PIN Code Silent Mode Silent Mode enabled Wait for green light to flash Wait for green light to flash when green light flashes Silent Mode enabled when green light flashes Master Press PIN Code Auto...
  • Page 19: Factory Default Settings

    Factory Default Settings How to Reset? Resetting the device will delete all User PIN Codes and Master PIN Code stored in the lock. Step 1. Keep the door open and the lock unlocked (thumb turn will be horizontal). Step 2. Using the Reset Tool, press and hold the Reset Button for 5 seconds until you hear the "BEEP"...
  • Page 20 Download Kaadas Home App Download the Kaadas Home App from the Apple Store or Google Quick Set Up Tips Play Store. • Create an account in the Kaadas Home App. • Scan the QR Code found on the inside panel of the Battery Cover to add your KS307 to the device list.
  • Page 21: Troubleshooting

    Troubleshooting Problem Solution Make sure the backset on the latch is set to the proper length.Refer to Installation Guide. The latch does not operate Make sure prior to installation the latch bolt is retracted. Refer to Installation Guide. correctly after installation. Please restore to factory default setting and enter the default Master PIN code to set up the lock.
  • Page 22: Fcc Statement

    FCC Statement ISED Statement This equipment has been tested and found to comply with the limits for a English:This device contains licence-exempt transmitter(s)/receiver(s) that Class B digital device, pursuant to part 15 of the FCC Rules. These limits comply with Innovation, Science and Economic Development Canada’s are designed to provide reasonable protection against harmful licence-exempt RSS(s).
  • Page 23 Do not install batteries until the lock is completely installed on door. product and void the factory warranty. • User PIN Codes: Can be 4-10 digits and can be set up in the Kaadas This manufacturer advises that no lock can provide complete security by Home App.
