Operation
Device overview
The Emulation Adapter can be used in conjunction with iSYSTEM iC5000, iC5500 and iC5700
debug and test tool or any other third party tool supporting ST SPC58 4B Line Nexus trace port.
The tool connects to 38-pin Mictor connector (P1) providing debug and Nexus trace interface
connection.
Emulation Adapter offers the following adaption setup:
·
Fixed Adaptation
IEA-SPC582B Emulation Adapter
Introduction to Emulation Adapter (video)
isystem.com/ea-intro

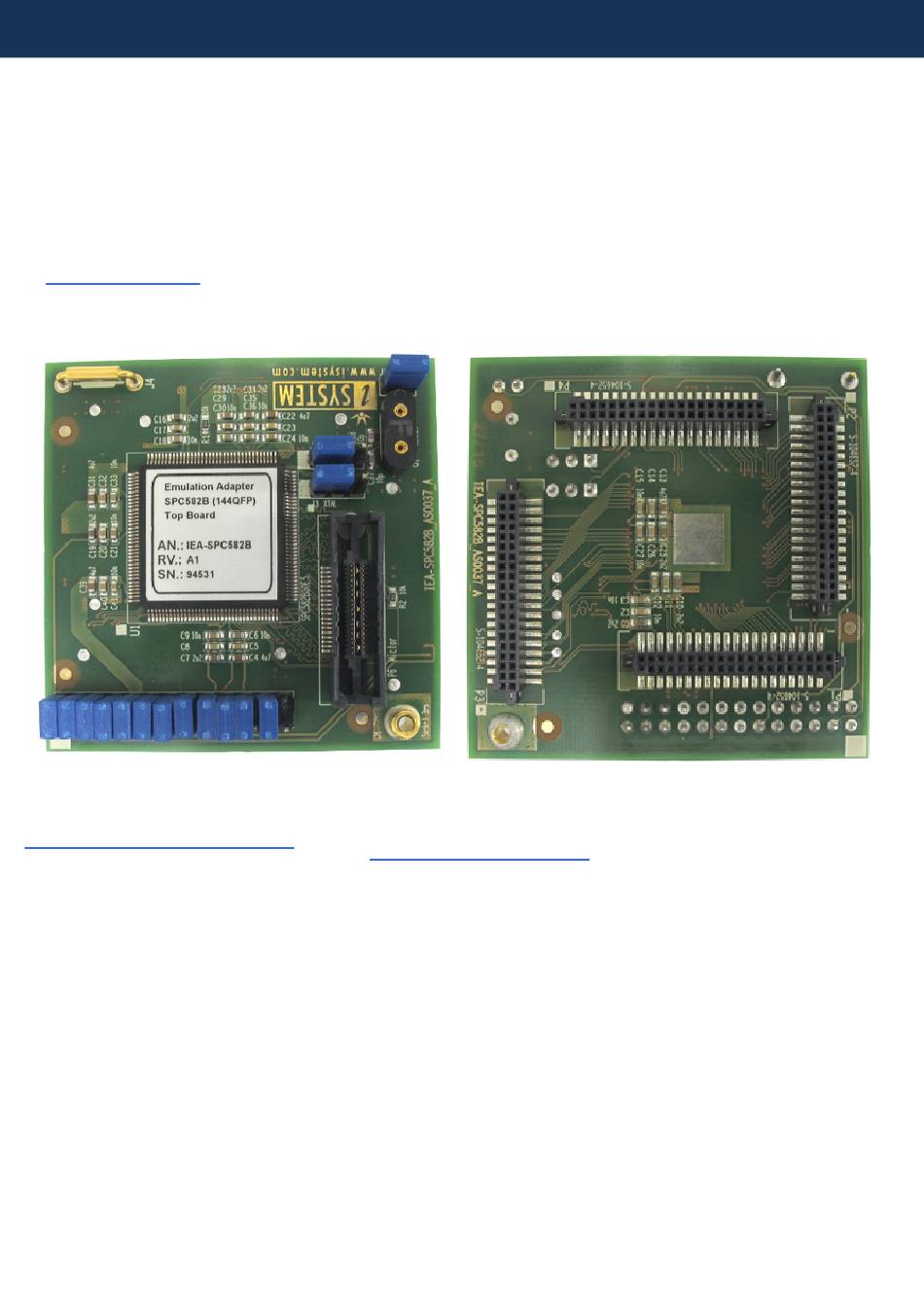

Top/bottom side of the Emulation Adapter
How to connect Hardware (video)
isystem.com/connect-hardware
