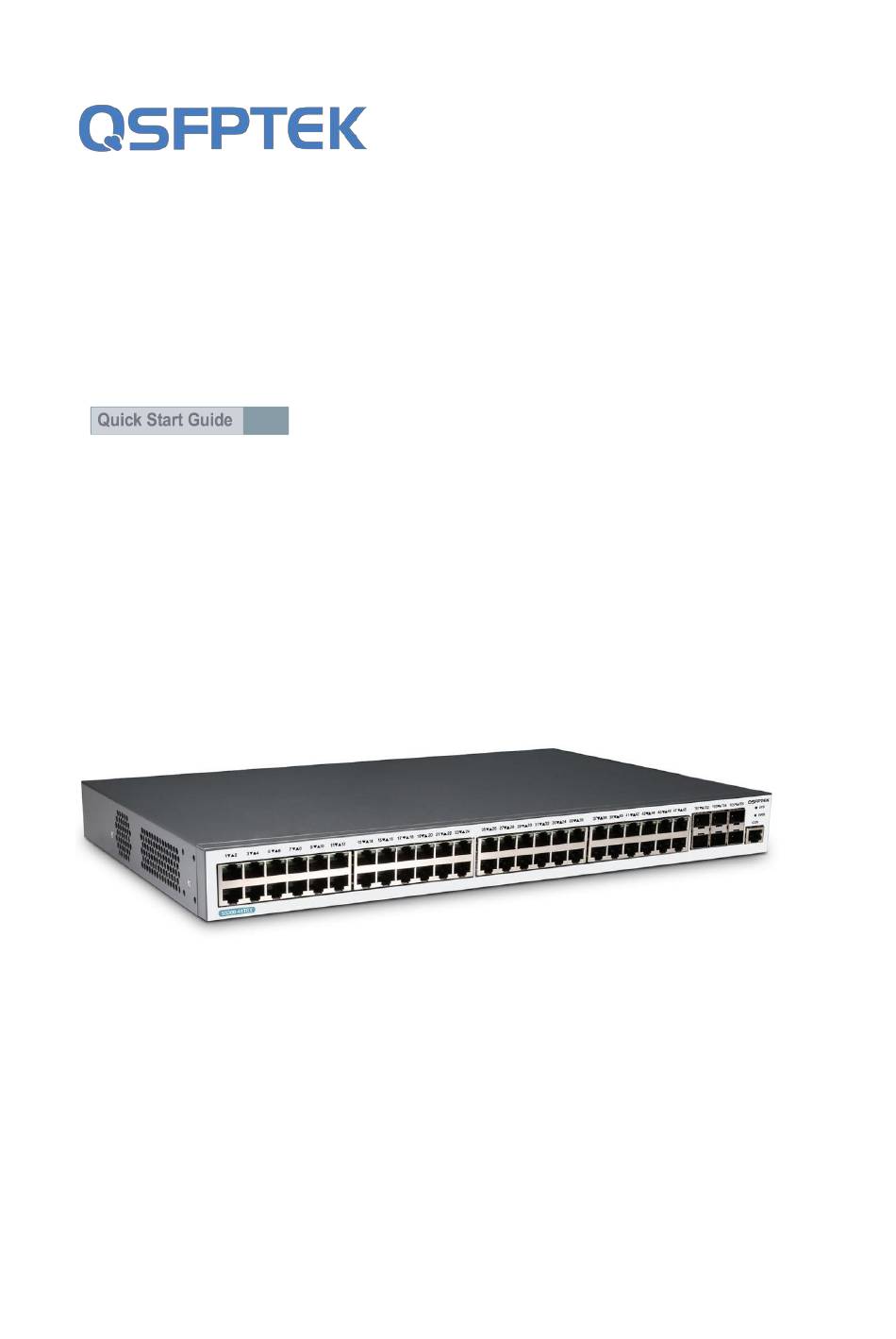

- Page 1 S5300-48T6X Quick Start Guide 48-Port Gigabit Ethernet L3 Switch 48x GE RJ45 with 6x 10GE SFP, Support Stacking V1.0 www.qsfptek.com v1.0 1 / 11...
- Page 2 S5300 series switches, making them logically regarded as one switch for interconnection and management. We appreciate your decision to select S5300-48T6X. This manual is intended to help you become acquainted with the switch design a nd provide instructions for implementing the switches into your network.
-
Page 3: Hardware Overview
A baud rate of 9600bps, RJ45 interface Front Panel LEDs LEDS Description SYS LED If the SYS indicator flickers, the system works normally. PWR LED If the PWR indicator is always on, the device is powered on. Back Panel www.qsfptek.com v1.0 3 / 11... -
Page 4: Installation Requirements
Site Environment Make sure that the workshop is well-ventilated, the heat of electrical devices is well-discharged . Avoid to damage devices by following the electrostatic discharge prevention procedure. S5300-48T6X Hardware Installation Manual. Put the machine box at the place where cool air can blow off the heat inside the machine box. Make sure the machine box is ... -
Page 5: Mounting The Switch
Connecting the Power 1. Plug the AC power cord to the switch power port on the back rear. 2. Connect the other end of the power cord to a AC power source equipment. Connecting the RJ45 Ports www.qsfptek.com v1.0 5 / 11... - Page 6 1. Insert the SFP+ module into the SFP+ port. 2. Plug a fiber patch cable to the SFP+ transceiver. 3. Connect the other end of the fiber to the device that you want to realize data communication. www.qsfptek.com v1.0 6 / 11...
-
Page 7: Connecting The Management Ports
2. Insert the RJ45 connector of the console cable into the console port on the switch. 3. Connect the D89 female connector on the other end of the console cable to the serial port on the computer host. www.qsfptek.com v1.0... -
Page 8: Configuring The Switch
Step 2: Set the IP address of the computer to 192.168.0.x (where "x" is any number from 2 to 254) and the subnet mask to 255.255.255.0. Step 3: Open a web browser and type http://192.168.0.2 in the address bar. Enter the default username and password (admin/admin).Step 4: Click sign-in to access the web-based configuration page. www.qsfptek.com v1.0 8 / 11... - Page 9 Step 3: Configure the parameters of the terminal emulation software as follows: 9600 bits per second, 8 data bits, no parity, 1 stop bit, and no flow control. Step 4: Enter the default username and password (admin/admin). www.qsfptek.com v1.0 9 / 11...
-
Page 10: Troubleshooting
3. If the CLI port does not work after the system is started up, check whether the CLI port is set to a baud rate of 9600 bps, eight data bits, no sum check bit, one stop bit and no traffic control. www.qsfptek.com v1.0... -
Page 11: Support And Other Resources
Product Warranty S5600 series switches are backed by a 5-year limited warranty supported by QSFPTEK. And you are eligible to apply for a return or e xchange of your items within 14 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com for support.
