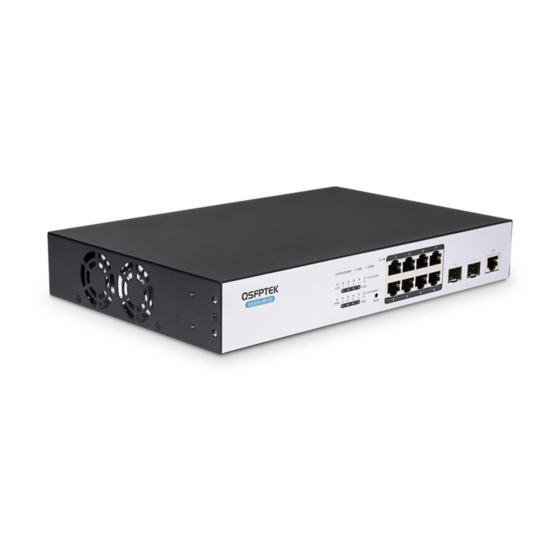

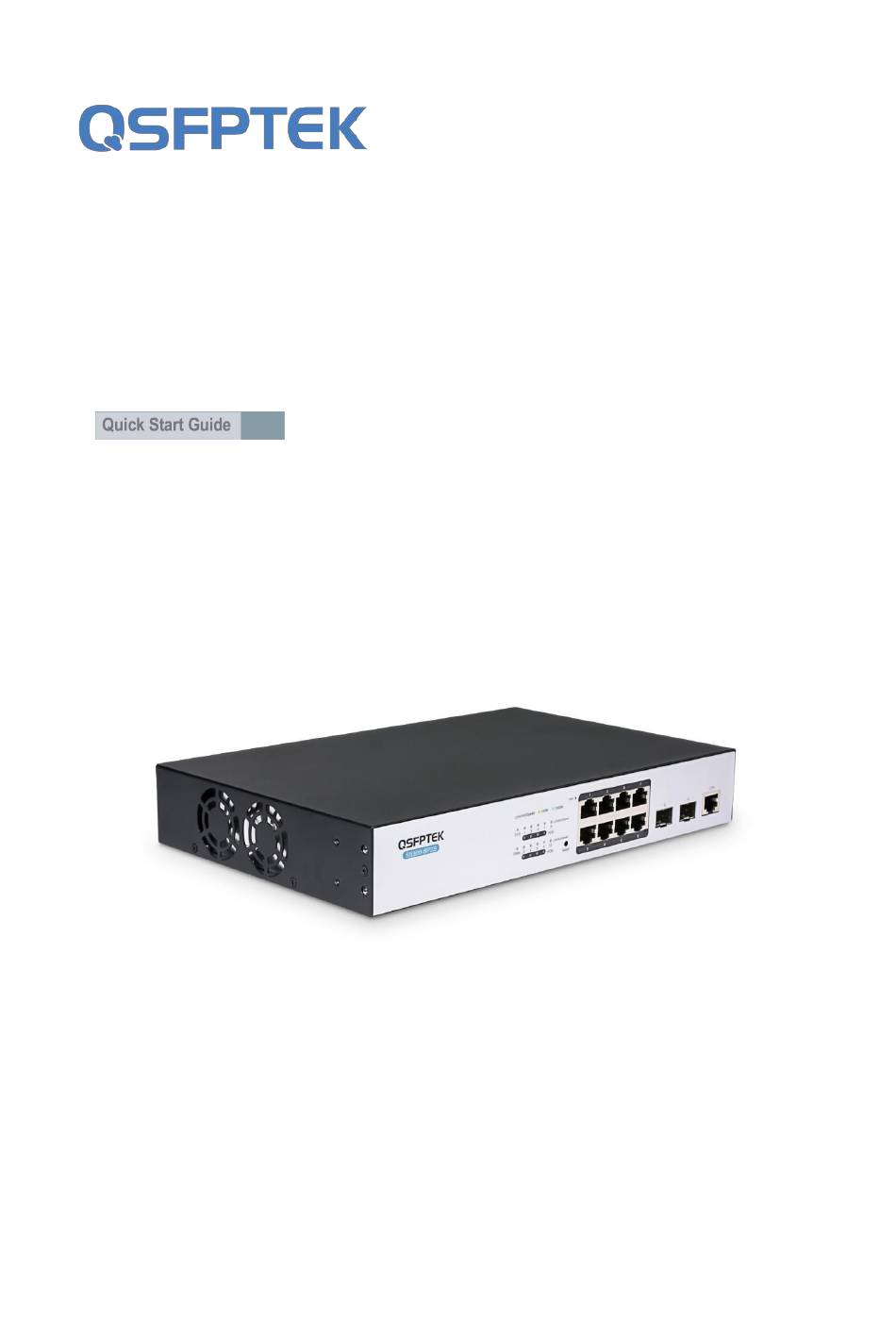

- Page 1 S5300-8P2S Quick Start Guide 8-Port Gigabit Ethernet L2+ Access Switch 8x PoE+ Ports @130W, 2x 1Gb SFP Uplinks, Fanless V1.0 www.qsfptek.com v1.0 1 / 9...
- Page 2 Introduction The QSFPTEK S5300-8P2S 8-Port gigabit Ethernet switch comes with 8x GE RJ45 ports and 2x 1Gb SFP uplink ports. 8x RJ45 ports support IEEE 802.3af POE at (max 30w per port) for powering attached wireless access points, IP cameras, or other POE and POE+ standard terminal devices.
-
Page 3: Hardware Overview
SYS LED If the switch is started, the system indicator flickers. Always on in orange: 10/100M Always on in green: 1000M Off: no signal transmission Always on in green: 1000M 9-10 Off: no signal transmission www.qsfptek.com v1.0 3 / 9... -
Page 4: Installation Requirements
Put the machine box at the place where cool air can blow off the heat inside the machine box. Make sure the machine box is sealed because the opened machine box will reverse the cool air flow. www.qsfptek.com v1.0 4 / 9... - Page 5 1. Connect one end of the Ethernet cable to the RJ45 port on networking equipment, such as PC, printer, server, storage, etc. 2. Connect the other end of the Ethernet cable to the switch RJ45 port. www.qsfptek.com v1.0 5 / 9...
-
Page 6: Connecting The Management Ports
2. Insert the RJ45 connector of the console cable into the console port on the switch. 3. Connect the D89 female connector on the other end of the console cable to the serial port on the computer host. www.qsfptek.com v1.0... -
Page 7: Configuring The Switch
Step 2: Set the IP address of the computer to 192.168.0.x (where "x" is any number from 2 to 254) and the subnet mask to 255.255.255.0. Step 3: Open a web browser and type http://192.168.0.1 in the address bar. Enter the default username and password (admin/admin) .Step 4: Click sign-in to access the web-based configuration page. www.qsfptek.com v1.0 7 / 9... -
Page 8: Troubleshooting
If the CLI port does not work after the system is started up, check whether the CLI port is set to a baud rate of 9600 bps, eight data bits, no sum check bit, one stop bit and no traffic control. www.qsfptek.com v1.0... -
Page 9: Support And Other Resources
Product Warranty S5300 series switches are backed by a 5-year limited warranty supported by QSFPTEK. And you are eligible to apply for a return or e -xchange of your items within 14 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
