F010-P
Normally, the display is updated depending on the refresh rate selected in the configuration settings.
By pressing any key, the display switches to refreshing the information 8 times per second. After 30
seconds of key inactivity, the display returns to the configured refresh rate.
4.2.2

BACKLIGHT (TYPE ZB)

The F010-P with Type ZB is equipped with a backlight to illuminate the display for improved
readability. The backlight can be turned on or off, and its intensity can be set in the SETUP- menu.
4.3

DISPLAYED INFORMATION

4.3.1

FLOW RATE

The main display shows the actual flow rate. The configured unit and time unit are indicated on the
bottom line of the display. When the flow rate is too high to display, "- - - - - -" is shown.
After selecting any other information, the F010 will always return to this display automatically.
Pie graph
A pie graph view of the actual process value can be shown at the bottom left of the display. It
contains 10 segments, ranging from 0 to 100% of the set measurement range.
4.4

OPERATOR ALARMS

4.4.1

LOW BATTERY

When the battery voltage drops, it must be replaced. To warn in time, "BATTERY LOW" will flash on
the bottom line of the display. The product will continue to function correctly for several days up to
some weeks, but as soon as the warning stop flashing and is displayed continuously the battery
must be replaced shortly after, or it will run out.
See
Section 8.3: Battery replacement [»44]
4.4.2

INTERNAL ERROR

When an internal error occurs, "ALARM" will be displayed. Press the SELECT key several times to
display the 4-digit error code. Consult
FW_F010-P_M_v0501-03_EN
RUN

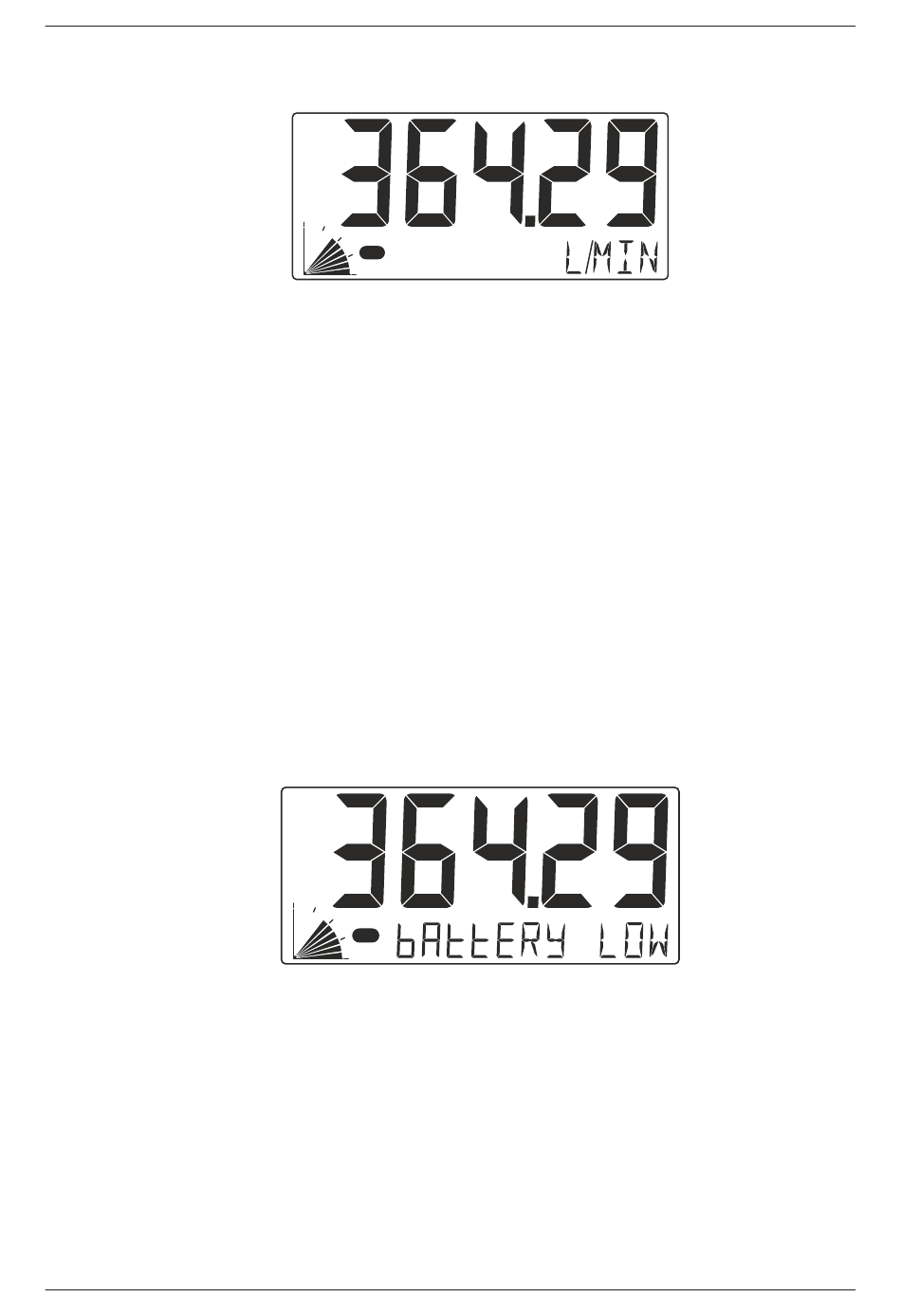

Fig. 4:
Example of display information during process
for further information.
RUN
Fig. 5:
Example of low-battery alarm
Section B: Troubleshooting [»49]
User Manual
for more information.
