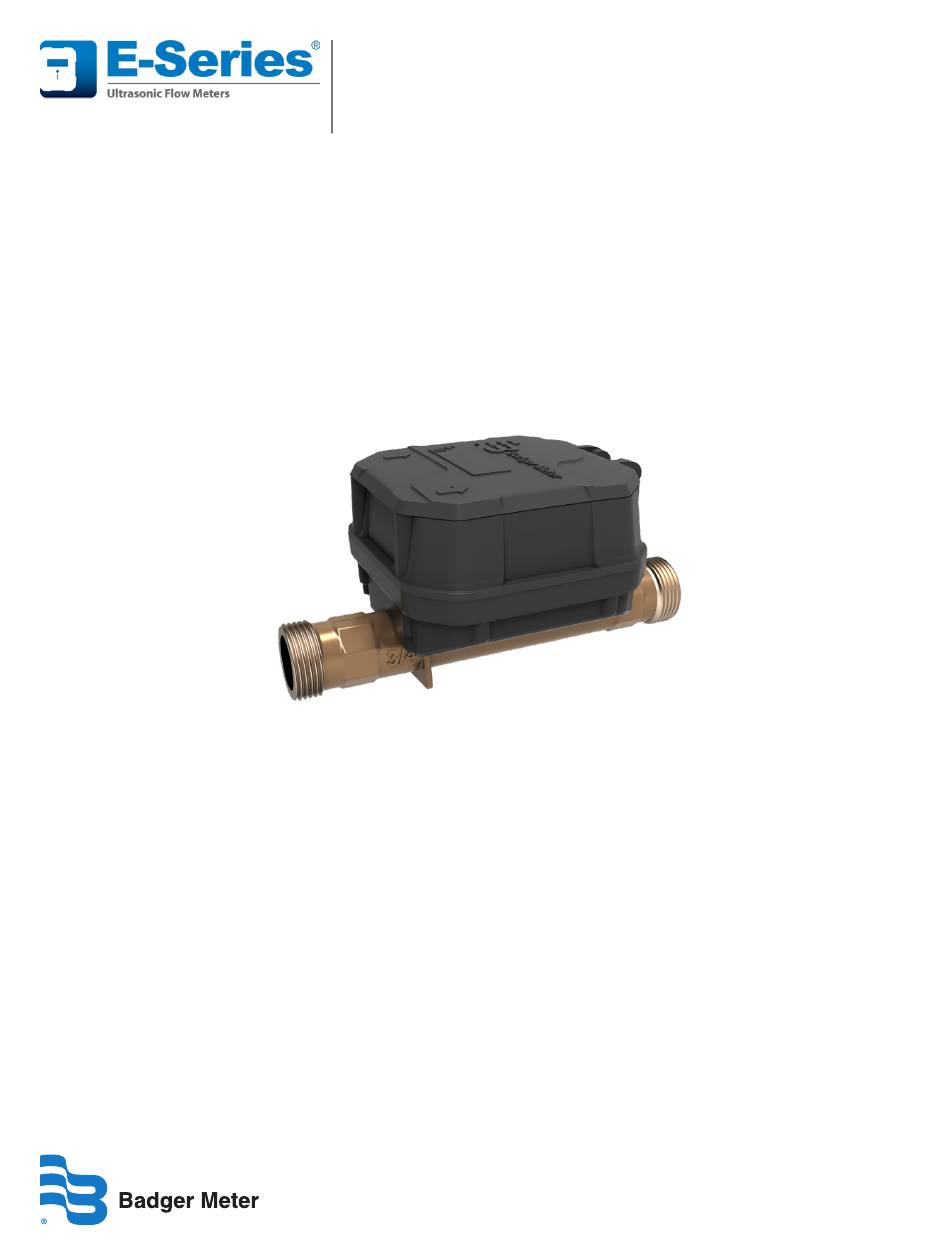

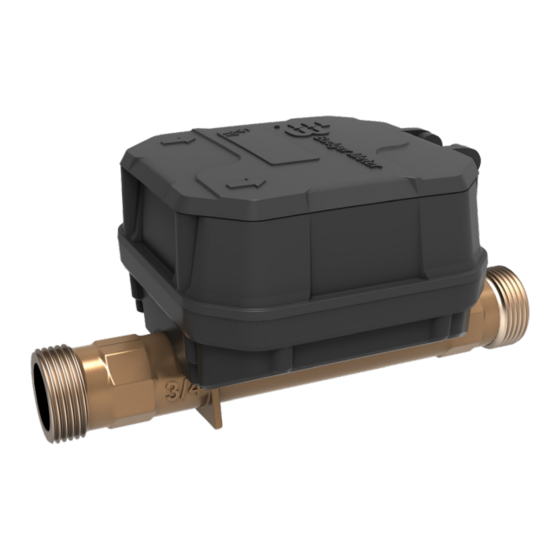

- Page 1 E-Series G2® Ultrasonic Meter Lead-Free Bronze Alloy, 5/8 x 3/4 inch User Manual ESM-UM-03099-EN-02 (May 2021)
-
Page 2: Table Of Contents
E-Series G2® Ultrasonic Meter, Lead-Free Bronze Alloy, 5/8 x 3/4 inch CONTENTS Scope of this Manual About the E-Series Ultrasonic Meter Operation Applications Construction Requirements Safety Information Product Unpacking and Inspection Special Fittings and Accessories Removing a Meter Meter Operating Modes Installation Outdoor Installations Indoor Installations... -
Page 3: Scope Of This Manual
Scope of this Manual SCOPE OF THIS MANUAL This manual contains installation and operation procedures for the Badger Meter® next generation E-Series G2® 5/8 x 3/4 inch Ultrasonic meters Proper performance and reliability of the product depend upon installation in accordance with... - Page 4 Requirements BEACON FIRST TIME SETUP For meters connected to ORION Cellular LTE-M, LTE-MS or LTE endpoints, perform these steps to make sure the E-Series Ultrasonic meter sensor information is accessible in BEACON In BEACON, select the Assets tab Then select Utility Settings from the menu on the left Figure 1: BEACON Assets On the Utility Settings page, scroll down to the Monitor Page Filters section and find the Sensors section...
-
Page 5: Safety Information
Safety Information SAFETY INFORMATION The installation of the E-Series Ultrasonic meter must comply with all applicable federal, state and local rules, regulations and codes Failure to read and follow these instructions can lead to misapplication or misuse of the meter, resulting in personal injury and damage to equipment PRODUCT UNPACKING AND INSPECTION To avoid damage in transit, E-Series Ultrasonic meters are shipped to the customer in special shipping containers Upon... -
Page 6: Meter Operating Modes
Meter Operating Modes METER OPERATING MODES The E-Series Ultrasonic meter automatically moves through storage and transition mode into active mode based on water flow: • Storage Mode E-Series Ultrasonic meters are delivered in storage mode so that a meter alarm is not triggered In storage mode, the meter LCD displays the empty pipe icon on the consumption screen, an empty pipe code on the alarm screen (but no alarm code is sent to the endpoint) and –... -
Page 7: Pre-Installation
Installation • METERS MUST OPERATE IN A COMPLETELY FILLED LINE AT ALL TIMES. THE DOWNSTREAM PIPING MUST ALWAYS BE ARRANGED TO PROVIDE SUFFICIENT BACK PRESSURE TO MAINTAIN A FULL LINE AT THE METER. BY ELIMINATING AIR IN THE LINE, AS WELL AS SUDDEN FLOW SURGES, INACCURATE REGISTRATION AND DAMAGE TO THE METER CAN BE AVOIDED. - Page 8 Installation For 5/8…1 in. Threaded Ends • Start the coupling nuts at the threaded meter ends Verify that the nuts are properly aligned to avoid cross-threading or damage to the meter ends • An effective method for starting a coupling nut is: Position the nut squarely against the meter's spud end Turn the nut counterclockwise (in reverse) while holding the nut against the meter spud end When the first threads on both the nut and the spud end coincide, you will hear a slight click and feel the nut move into the...
-
Page 9: Operations
Operations OPERATIONS Display E-Series Ultrasonic meters use a 9-digit Liquid Crystal Display (LCD) that toggles to show consumption, rate of flow, temperature,* pressure,* alarm and operating mode, and firmware version Indicator and alarm icons appear in the display as symbols that illuminate when the condition is active See "Meter Alarms"... -
Page 10: Display Screens
Operations Display Screens Total Consumption Screen Gallons The total consumption screen shows all nine digits, including leading zeroes and a decimal point The displayed value is the sum of the forward flow minus the reverse flow The display also includes indicator lines above and below the digits to represent the typical utility Meter reading to the nearest? 100th gallon =... - Page 11 Operations Temperature Screen* Displays current water and ambient temperature If the meter is in active Water Temp Ambient Temp mode and detects an empty pipe, water temperature displays ErrF (or ErrC) If the meter is in storage mode and detects an empty pipe, water temperature displays –...
-
Page 12: Outputs
Outputs Pulse Weight Scaled (units/pulse) Unscaled (units/pulse) Meter Size 0 01 0 02 0 002 0 00005 5/8 x 3/4 in. Figure 15: Default pulse weights Measurement Resolution Scaled (pulse/unit) Unscaled (pulse/unit) Analog Output Meter Size 20 mA Set point (gpm) 5/8 x 3/4 in. - Page 13 Outputs Analog Output • The flow rate measurement is converted to a standard 4-20 mA control signal • This signal is proportional to the flow of fluid passing through the flow meter • The 4-20 mA output is isolated when paired with scaled/unscaled output •...
-
Page 14: Meter Alarms
Meter Alarms METER ALARMS E-Series Ultrasonic meter alarms appear on the display as icons that illuminate when the condition occurs Alarms are displayed for the number of days listed in the table below Alarms also appear as 3-character codes on the alarm and operating mode screen See "Alarm and Operating Mode Screen"... -
Page 15: Alarm Codes
Meter Alarms Alarm Codes Alarm codes are shown on the alarm and operating mode screen See "Alarm and Operating Mode Screen" on page 11 OTE: For alarms reported within BEACON, refer to BEACON Help at beaconama.net Empty pipe, Temperature, Empty pipe Reverse flow Measurement error Empty pipe, No usage,... -
Page 16: Specifications
SMART WATER IS B ADGER ME T ER BEACON, E-Series, E-Series G2 and ORION are registered trademarks of Badger Meter, Inc Other trademarks appearing in this document are the property of their respective entities Due to continuous research, product improvements and enhancements, Badger Meter reserves the right to change product or system specifications without notice, except to the extent an outstanding contractual obligation exists ©...
