Dunster House SHEDRICK SHED H4-1218SSH Installation Manual

1.2m x 1.8m (4ft x 6ft)
Hide thumbs

Advertisement

Quick Links

Download this manual
All dimensions are approximate and subject to the limitations of the materials used and the methods of manufacture
Manufacturer:
Dunster House Ltd.
Caxton Road
Bedford
Bedfordshire
England
MK41 0LF

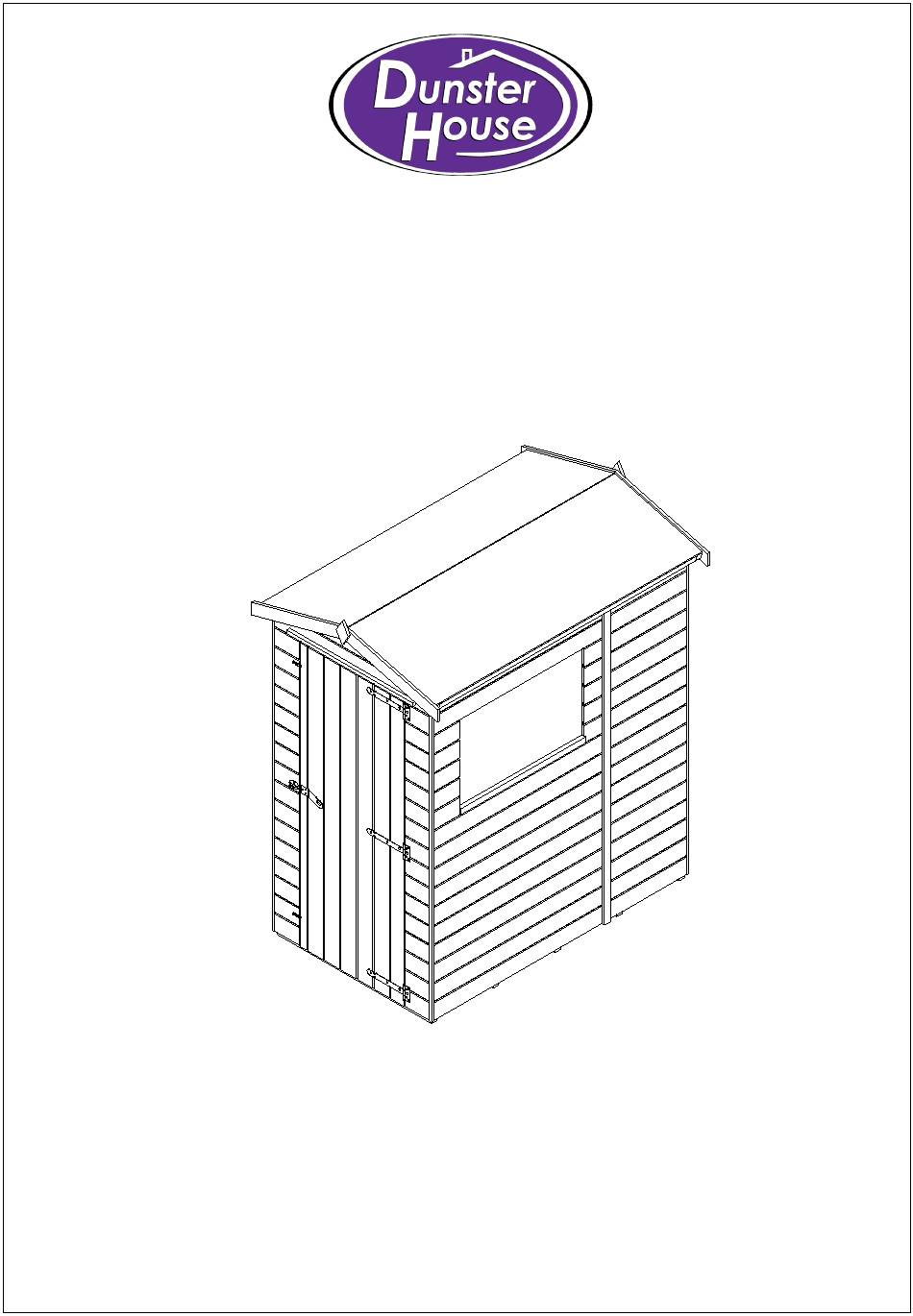

SHEDRICK SHED - 1.2m x 1.8m
(4ft x 6ft)
H4 -1218SSH
Installation Manual
Please read this installation manual carefully
before proceeding with the construction of your shed.
Unique Shed Reference Number
_____________________________
Important!
V1
Customer Service:
cs@dunsterhouse.co.uk
www.dunsterhouse.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the SHEDRICK SHED H4-1218SSH and is the answer not in the manual?

Questions and answers

Related Manuals for Dunster House SHEDRICK SHED H4-1218SSH

Summary of Contents for Dunster House SHEDRICK SHED H4-1218SSH

  • Page 1 Please read this installation manual carefully before proceeding with the construction of your shed. Important! All dimensions are approximate and subject to the limitations of the materials used and the methods of manufacture Manufacturer: Dunster House Ltd. Caxton Road Bedford Unique Shed Reference Number Bedfordshire...
  • Page 2 In the unlikely event that you need to contact us, please do so in writing to: Email: cs@dunsterhouse.co.uk Post: FAO Customer Services, Dunster House Ltd - Factory 1, Caxton Road, Bedford, MK41 0LF Our Customer Services department is open 9:00 - 17:00, Monday to Friday. Please include your Sales Order number starting with SO or your postcode so we can locate your order.
  • Page 3 Should you discover a rip or tear, the best course of action is to replace it immediately. At Dunster House, we sell high-grade mineral felt. More information on replacing the shed's roof material can be found here:...

  • Page 4: Pack Contents

    Pack Contents PANEL DA - 1040x2038 PANEL CA - 1040x2038 PANEL AI - A - 1150x1897 PANEL AI - B - 550x1897 PANEL BG - A - 1150x1897 PANEL BG - B - 550x1897 PANEL FB - 700x1770 - SINGLE DOOR RIGHT MFP - 1700x1040x10 MFP - 1800x610x10 ST-PT2023850 - L = 850mm...
  • Page 5 Pack Contents ST-PT3535560 - L = 560mm ST-PT35701630 - L = 1630mm ST-PT3535600 - L = 600mm ST-PT35351040 - L = 1040mm ST-PT35351730 - L = 1730mm ST-PT19451855 - L = 1855mm ST-PT2535835 - L = 835mm ST-PT1670120 - DIAMOND FINIAL ST-PT1670665.75.75 - L = 665mm Turn Button Hasp &...
  • Page 6 Panels Layout OPTION 1 PANEL CA PANEL AI - B PANEL AI - A PANEL BG - B FRONT PANEL BG - A PANEL DA OPTION 2 PANEL BG - A PANEL CA PANEL BG - B PANEL AI - A PANEL DA FRONT PANEL AI - B...
  • Page 7 Assembly Steps Pre-drill parts before fixing with screws STEP 1: PANELS Items: PANEL AI - A - SIDE PANEL NO WINDOW PANEL AB - B - SIDE PANEL NO WINDOW PANEL BG - A - SIDE PANEL WITH WINDOW 1a) Line up the panels BG so that the top and PANEL BG - B - SIDE PANEL WITH WINDOW bottom of each panel is flush with one another.
  • Page 8 Assembly Steps Pre-drill parts before fixing with screws STEP 2: FLOOR 2a) Ensure the base is level. Space bearers at the Items: specified distance as shown in the diagram below (1.0). ST-PT35351040 (Bearer) 2b) Secure the MFP to the bearers with 35mm screws all MFP - 1040x1700x10 equally spaced.
  • Page 9 Assembly Steps Pre-drill parts before fixing with screws STEP 4: WINDOW SILL Items: 4a) Place the window sill on the bottom of the window on the ST-PT2535835 (Window sill) outside surface of the glass. 50mm SCREW 4b) Use 50mm screws to secure the sill to the frame. Ensure the screws are 50mm from both ends of the window sill and equally spaced.
  • Page 10 Assembly Steps Pre-drill parts before fixing with screws STEP 6: PURLINS 6a) Position the middle purlin as shown in the diagram and secure it by using 4x 70mm Items: screws (2x 70mm screws on each end of the purlin). ST-PT35701630 (Purlin) 70mm SCREW Flush ST-PT35701630...
  • Page 11 Assembly Steps Pre-drill parts before fixing with screws STEP 8: HINGES Items: 8a) Position the door in the frame ensuring there is a 5mm gap on each side of the door. The bottom edge of the door should be flush with the bottom shiplap. See the image below PANEL - FB for reference (1.0).
  • Page 12 Assembly Steps Pre-drill parts before fixing with screws STEP 10: CORNER TRIM 10a) Position the timber trims in each corner of the shed, as shown in the diagram Items: below. Make sure that the end of the trim is flush with the bottom wall shiplap. ST-PT15151860 (Corner trim) 40x 30mm NAIL 10b) Fix each corner trim into both panels.
  • Page 13 Assembly Steps Pre-drill parts before fixing with screws STEP 12: WIND BRACE 12a) Position the wind braces as shown in the diagram below. Make sure that they Items: are flush with the edge of the roof board. ST-PT3535600 (Front+Rear) ST-PT35351730 (Side) 12b) Fix each wind brace by using 35mm screws.
  • Page 14 Assembly Steps Pre-drill parts before fixing with screws STEP 14: FASCIA BOARD AND DIAMOND FINIAL 14a) Position the fascia boards to the correct position as shown in the Items: diagram below. Fascia boards should overhang the roof boards by 10mm. ST-PT1670665.75.75 (Fascia board) Fix each fascia board to the wind brace by using 4x 35mm screws.
  • Page 15 Assembly Steps CONGRATULATIONS YOUR SHED IS NOW COMPLETE Page 15...
