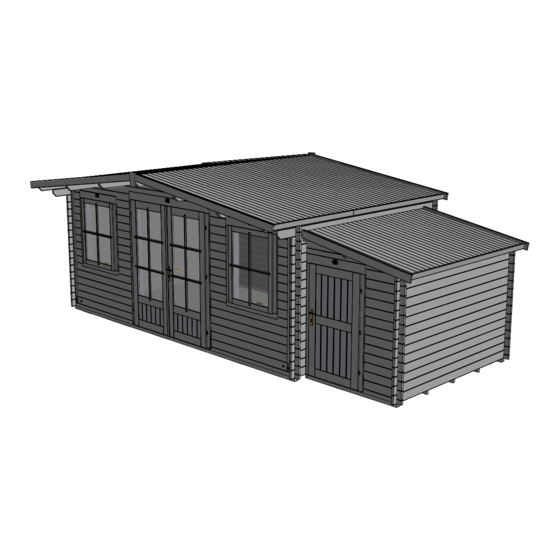

INSTALLATION MANUAL
Side Store
Width 1.5m x Length 2.5m
Thickness of logs 28mm
E3-2515SS (28)
Unique Side store Reference Number.
______________________________
www.dunsterhouse.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the E3-2515SS and is the answer not in the manual?

Questions and answers

Summary of Contents for Dunster House E3-2515SS

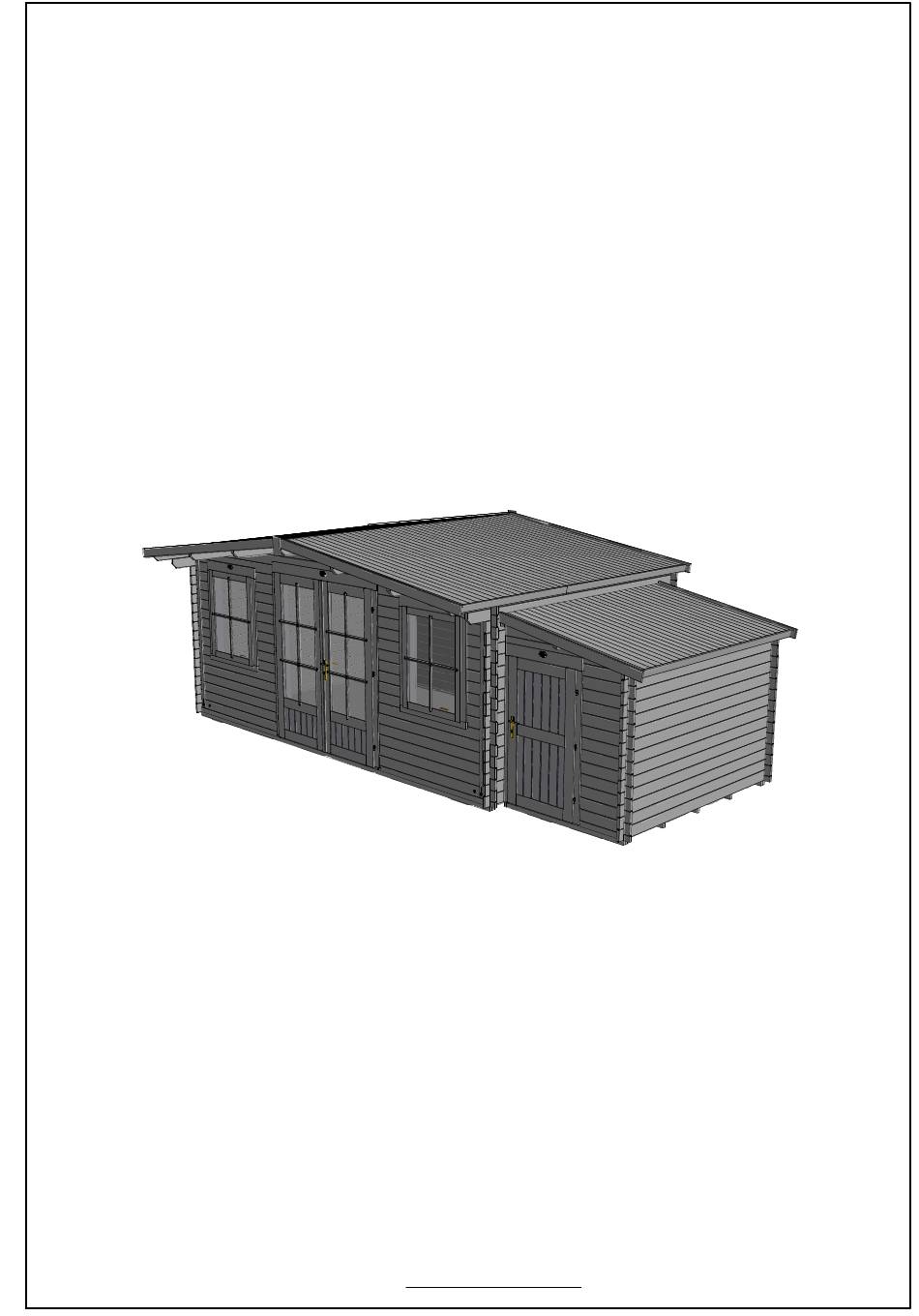

  • Page 1 INSTALLATION MANUAL Side Store Width 1.5m x Length 2.5m Thickness of logs 28mm E3-2515SS (28) Unique Side store Reference Number. ______________________________ www.dunsterhouse.co.uk...
  • Page 2 1.5 x 2.5 (28mm) Side Store Please read these assembly instructions carefully before proceeding with the construction of your log side store. The log side store you have bought needs to be used together with a log cabin. This product can be attached to any side of the log cabin which is both, long enough, and does not have any windows or doors in the way.
  • Page 3 1.5 x 2.5 (28mm) Side Store Components B28.585.70.0.0 1 of required Bottom wall log 1500 B28.1500.70.0.0 1 of required Bottom wall log A28.585.70.0.0 13 of required Wall log 1500 A28.1500.70.0.0 13 of required Wall log A28.2500.70.70.0 2500 14 of required (including 1 spare part) Wall log 2500...
  • Page 4 1.5 x 2.5 (28mm) Side Store Components F.1600 1600 29 of required (inc. 1 spare) Roof board F.2300 2300 17 of required (inc. 1 spare) Floor board I.1700.A 1700 3 of required Brace Requires cutting on site ZN.1670.B 1670 2 of required Fascia board N.1960 1960...
  • Page 5 1.5 x 2.5m (28mm) Side Store Bearers Layout 1.5m x 2.5m Side Store - Base + Bearers OVERALL MINIMUM BASE DIMENSIONS - 1640 x 2560mm 1435 EN.1403 EN.1403 EN.1403 EN.1403 EN.1403 EN.1403 EN.1403 EN.2360 Leave a minimum distance from the front of log cabin bearer to the side store front bearer.
  • Page 6 1.5 x 2.5m (28mm) Side Store Front Wall AP.28.SIDE.STORE A28.585.70.0.0 I.1700.A B28.585.70.0.0 (cut to 1500mm) 1455 Screw this trim through slots using 60mm hexscrews 1500 and washer/s Back Wall AP.28.SIDE.STORE A28.1500.70.0.0 B28.1500.70.0.0 1500 All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture Page 5...
  • Page 7 1.5 x 2.5m (28mm) Side Store Side Wall XN28.2500.70.70.0 A28.2500.70.70.0 2500 I.1700.A I.1700.A I.1700.A I.1700.A I.1700.A - cut to 1500mm I.1700.A All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture Page 6...
  • Page 8 1.5 x 2.5m (28mm) Side Store Securing side store walls to existing cabin screw purlin to the apex using 70 mm long screws I.1700.A - off cut - screw to apex and log cabin wall Use one 60mm hexscrew with washer/s per slot and screw as close as possible to the top side of the slots.
  • Page 9 1.5 x 2.5m (28mm) Side Store HN.3000 F.1600 J.3000 All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture Page 8...
  • Page 10 1.5 x 2.5m (28mm) Side Store Shingles 1. If you have bought roof membrane first fully cover the roof boards using this roof membrane. We suggest to fix it using a stapler. 2. If your shingles have a peelable plastic backing remove this before installing them to the roof. 3.
  • Page 11 1.5 x 2.5m (28mm) Side Store Shingles Installation Step B Second layer of shingles Roof membrane with the slots/hexagons facing downwards Nails Shingles Installation Step C Third layer of shingles Roof membrane with the slots/hexagons facing downwards All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture Page 10...
  • Page 12 1.5 x 2.5m (28mm) Side Store Shingles Installation Fourth layer of shingles with the Step D slots/hexagons facing downwards and the shinlges have been offset by half a segment Roof membrane Nails Continue this process untill you have reached the top of the roof boards Shingles Installation Step E All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture...
  • Page 13 1.5 x 2.5m (28mm) Side Store Place one more row and Shingles Installation secure the half that falls Step F on top of the roof boards. Roof membrane Bend up against cabin side wall Shingles Installation Step G N.1960 - Requires to be cut 35mm Screws ZN.1670.B N.1960 - Requires to be cut...
  • Page 14 1.5 x 2.5m (28mm) Side Store Shingles Installation Step H The diagram shown is for illustration purposes and may not look exact to your build. Bend the shingles upwards so it meets the side wall of the cabin. Ensure that it is pushed up against the side wall before securing into place. Evenly space out the nail so no openings form in the shingles betwen each nail.
