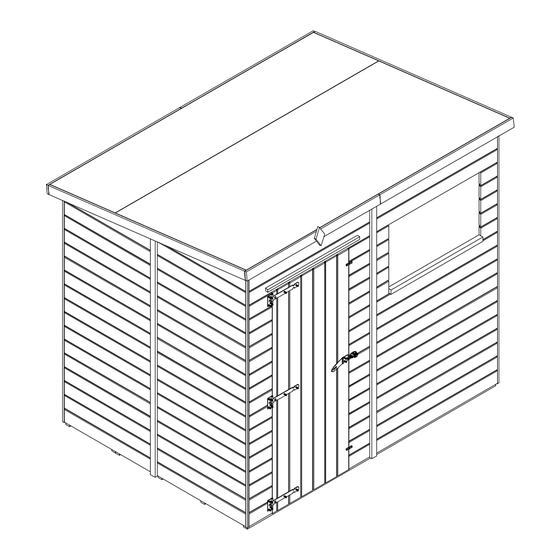

DAD'S SHED I - 2.4m x 1.8m
(8ft x 6ft)
H4-2418DSHV2
Installation Manual
Please read this installation manual carefully
before proceeding with the construction of your shed.
Unique Shed Reference Number
_____________________________
Important!
V1
Customer Service:
cs@dunsterhouse.co.uk
www.dunsterhouse.co.uk
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dunster House H4-2418DSHV2
Summary of Contents for Dunster House H4-2418DSHV2
- Page 1 Please read this installation manual carefully before proceeding with the construction of your shed. Important! All dimensions are approximate and subject to the limitations of the materials used and the methods of manufacture Manufacturer: Dunster House Ltd. Caxton Road Bedford Unique Shed Reference Number Bedfordshire...
- Page 2 In the unlikely event that you need to contact us, please do so in writing to: Email: cs@dunsterhouse.co.uk Post: FAO Customer Services, Dunster House Ltd - Factory 1, Caxton Road, Bedford, MK41 0LF Our Customer Services department is open 9:00 - 17:00, Monday to Friday. Please include your Sales Order number starting with SO or your postcode so we can locate your order.
- Page 3 Should you discover a rip or tear, the best course of action is to replace it immediately. At Dunster House, we sell high-grade mineral felt. More information on replacing the shed's roof material can be found here:...
-
Page 4: Pack Contents
Pack Contents PANEL DG - B - 1140x2097 PANEL DG - A - 1160x2097 PANEL AH - 1150x1897 PANEL CG - A - 840x2002 PANEL CG - B - 840x2102 PANEL CF - A - 840x2002 PANEL CF - B - 840x2102 PANEL FA - 700x1770 - SINGLE DOOR MFP - 2440x1220x10 ST-PT3535540 - L = 540mm... - Page 5 Pack Contents ST-PT16701235 - L = 1235mm ST-PT16701830 - L = 1830mm ST-PT2535840 - L = 840mm ST-PT3570100 - L = 100mm ST-PT35351630.83.83 ST-PT3570530 - L = 530mm ST-PT1680140 ST-PT2023850 - L =850mm ST-PT15151860 - L = 1860mm ST-PT19451855 - L = 1855mm ST-PT15152100 - L = 2100mm ST-PT19451955 - L = 1955mm ST-PT19452055 - L = 2055mm...
- Page 6 Pack Contents FIXINGS COMPONENT 70mm SCREW 50mm SCREW 35mm SCREW 30mm PIN NAIL 10mm CLOUT NAIL COACH BOLT M6x60 M6 WASHER M6 NUT FELT Please note: You many have some extra fixings left over as we provide extra. Page 6...
- Page 7 Panels Layout H4 - PANEL CF - A - 840x2002 H4 - PANEL AH - 1150x1897 H4 - PANEL CF - B - 840x2102 H4 - PANEL AH - 1150x1897 H4 - PANEL DG - A - 1160x2097 FRONT H4 - PANEL CG - A - 840x2002 H4 - PANEL CG - B - 840x2102 H4 - PANEL DG - B - 1140x2097 Page 7...
- Page 8 Assembly Steps Pre-drill parts before fixing with screws STEP 1: PANELS Items: PANEL AH - 1150x1897 Principle of connecting panels PANEL DG - A - 1160x2097 PANEL DG - B - 1140x2097 1a) Line up the panels so that the top and bottom of each panel is PANEL CG - A - 840x2002 flush with one another.
- Page 9 Assembly Steps Pre-drill parts before fixing with screws STEP 2: FLOOR Joining double bearer (1.1) 2a) Ensure the base is level. Space bearers at the Use 50mm screws. Items: specified distance as shown in the the diagram below (1.0). If the bearer layout consists of double bearers, use 50mm SCREW ST-PT35352300 (Bearer) 50mm screws to secure them as shown in the image to...
- Page 10 Assembly Steps Pre-drill parts before fixing with screws STEP 4: WINDOW SILL Items: 4a) Place the window sill on the bottom of window on outside ST-PT2535840 (Window sill) surface of glass. 50mm SCREW 4b) Use 50mm screws to secure the sill to the frame. Ensure the screws are 50mm from both ends of the window sill and equally spaced.
- Page 11 Assembly Steps Pre-drill parts before fixing with screws STEP 6: PURLINS 6a) Position the purlins as shown in the image below. Ensure the purlins are equally Items: spaced, approximately 531mm (Use diagram 1.0 for reference). ST-PT35701630 (Purlin) 6b) Use 4x 70mm screws per each purlin, 2x for the front and 2x for the rear. Secure 12x 70mm SCREW them through the side and bottom.
- Page 12 Assembly Steps Pre-drill parts before fixing with screws STEP 8: HINGES Items: 8a) Position the door in the frame ensuring there is a 5mm gap on each side of the door. The bottom edge of the door should be flush with the bottom shiplap. See image below for PANEL - FA reference (1.0).
- Page 13 Assembly Steps Pre-drill parts before fixing with screws STEP 10: CORNER TRIM 10a) Position the timber trims in each corner of the shed, as shown in the Items: diagram below. Make sure that the end of trim is flush with the bottom wall ST-PT15152100 (Front corner trim) shiplap.
- Page 14 Assembly Steps Pre-drill parts before fixing with screws STEP 12: WIND BRACE 12a) Position the wind braces as shown in the diagram below. Make sure that they Items: are flush with edge of the roof board. ST-PT35351830 ST-PT3535450 12b) Fix each wind brace by using 35mm screws. Use 6 screws for the front and rear 22x 35mm SCREW wind brace.
- Page 15 Assembly Steps Pre-drill parts before fixing with screws STEP 14: FASCIA BOARD AND DIAMOND FINIAL 14a) Position the fascia boards to the correct position as shown in the Items: diagram below. Fascia boards should be flush with the roof boards. Fix side ST-PT16701235 (Fascia board) fascia boards to the wind brace by using 4x 35mm screws and use 3x ST-PT16701830 (Fascia board)
- Page 16 Assembly Steps CONGRATULATIONS YOUR SHED IS NOW COMPLETE Page 16...
