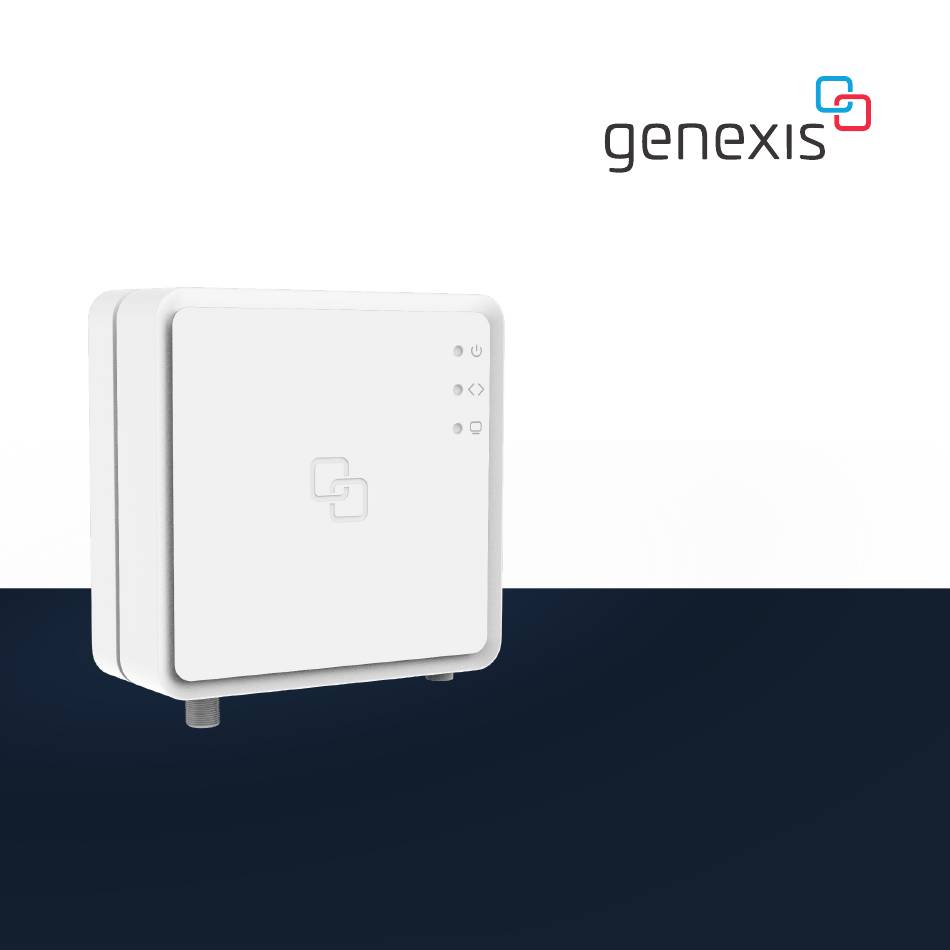

- Page 1 FiberTwist XGS2120 Installation Guide...
-
Page 2: Button Overview
Button overview Unlock button Remove FiberTwist or Blind Cover – press and hold while twisting counterclockwise Reset button (recessed) Reset - press and release Factory reset - press and hold the button until System and Uplink LED start to blink LED dim button Dim LEDs –... -
Page 3: Port Overview
Port overview LED overview Power port System Green – system ok ON/OFF TV port LAN port Green (blinking) – booting button Red - system or boot failure Red (blinking) - insufficient PON signal Off – power off Uplink Green – link ok Green (blinking) –... - Page 4 Installation guide Box contents Remove Blind Cover (if present) • Genexis FiberTwist (active device) Important: Instructions 1. Press and hold the unlock button (see button overview). • Power adapter need to be followed 2. Rotate the Blind Cover counterclockwise till it blocks.
- Page 5 Remove dust cap Twist! 1. Take the FiberTwist out of the box. 1. Place the FiberTwist on the FTU as shown in the picture below, 2. The dust cap is connected to the red string in a 30–degree angle. located on the rear of the FiberTwist. 2.
-
Page 6: Safety Guidelines
To the extent permissible by applicable law, failure to follow these cable or better is recommended. guidelines could result in damage to your product, which might not be covered by Genexis warranty. 3. Connect the supplied power adapter to the FiberTwist and plug the adapter into a power socket. - Page 7 To reduce potential damage to the equipment, observe the following recommendations: • When connecting an electronic device to the product, make sure to use the recommended • This product is designed for indoor use only in a temperature controlled (32-104°F) and network cable and connect the device to the right port of the product.
-
Page 8: Supplier's Declaration Of Conformity
Supplier’s Declaration of Conformity 47 CF $ 2.1077 Compliance Information Responsible Party – U.S. Contact Information Testing Partners LLC, 18200 SR 306, Chagrin Falls, OH 44023 info@testingpartners.com FCC Compliance Statement The FiberTwist-XGS2120-US-1 has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 9 Revision 1.0- November 2023 - Copyright © 2023 Genexis Netherlands B.V. All rights reserved. Multiple languages of this document and additional product information are available on https://genexis.eu/product/fibertwist/downloads Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
