Summary of Contents for Genexis XG Series

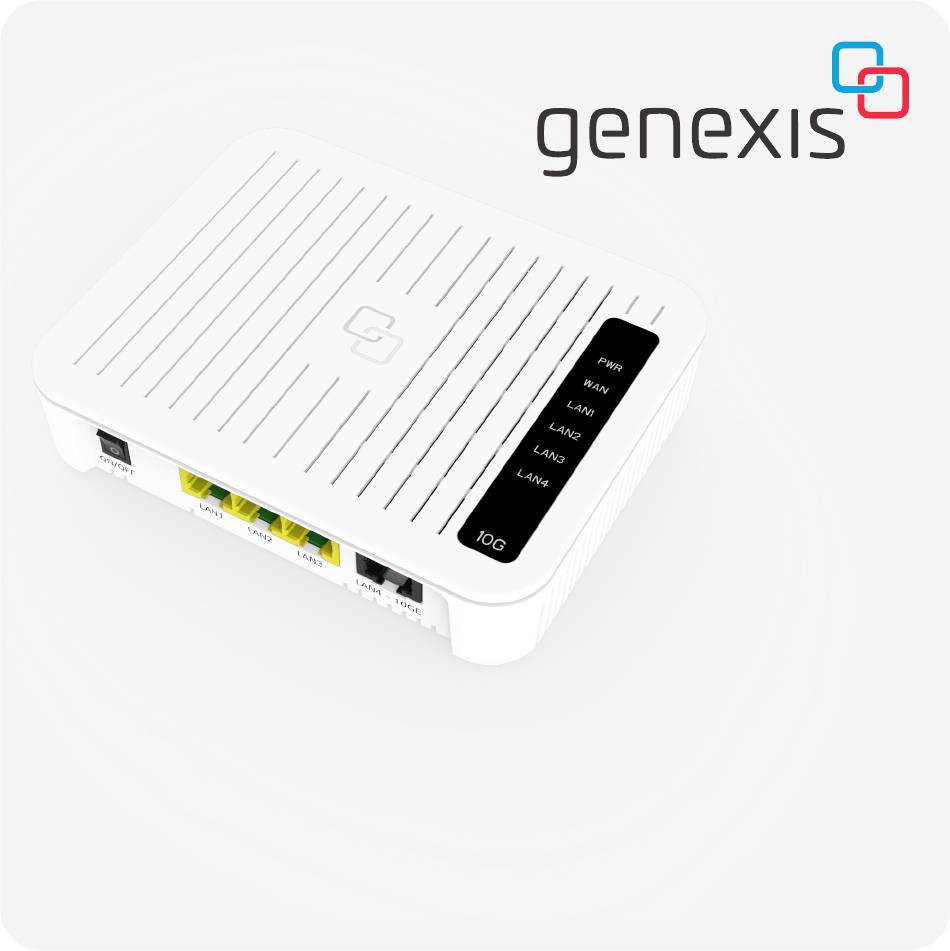

- Page 1 XG–Series Installation Guide...
- Page 2 Button overview Port overview ON/OFF LAN ports switch WAN/SFP port Reset button Power port CATV Reset button (recessed) ON/OFF switch Reset – press 5 seconds and release Power ON or OFF – switch device ON or OFF...
- Page 3 LED overview Power (PWR) Green – system ok – boot failed – power off Green –1Gb link established Green (blinking) – indicate traffic Yellow – 100Mb link established Yellow (blinking) – indicate traffic – no WAN connected Green – 1/10Gb link established Green (blinking) –...
- Page 4 Installation guide Different language versions of this document and additional product information are available on https://genexis.eu/download-portal/#XG Box contents Preparation • XGX (active device) Ensure there is a power socket • Power adapter within reach of where the device • RJ45 Network cable (2x) is being installed and that the product •...
- Page 5 Troubleshooting Setting up the XG Is the Power (PWR) indicator LED off? 1. Connect the RJ45 network cable to • Check if the device is properly connected to the power adapter. the internet LAN port. • Check if the power adapter is connected to an electrical outlet. 2.
- Page 6 EU Declaration of Conformity Hereby, Genexis B. V . declares that the product XG6846B is in compliance with Directives 2014/30/EU, 2014/35/EU, 2011/65/EU, Delegated Directive 2015/863 and Ecodesign Directive 2009/125/EC. The full text of the EU declaration of conformity is available at the following internet address: https://genexis.eu/red/XGX...
- Page 7 Revision 1.0 - June 2020 - Copyright © 2020 Genexis B. V . All rights reserved. Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
