- Page 1 QUICK SET UP MANUAL...
-
Page 2: Precautions For Use
Strictly refrain from disassembly and repair of parts which are not indicated in this manual, as well as settings and remodeling. Coastal Amusements Inc. | PLINKO Quick Setup Manual... -
Page 3: Specification

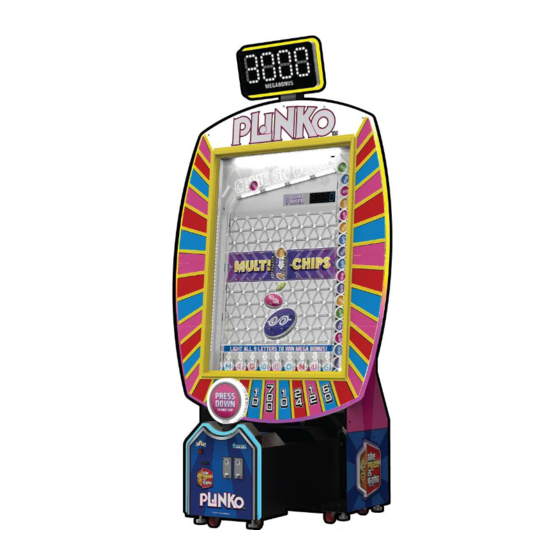

Specification MODEL NAME PLINKO MODEL NO. KM-PLK-G01 NOMINATED VOLTAGE RANGE AC 110V / 220V NOMINATED FREQUENCY RANGE 50Hz / 60Hz AVERAGE POWER CONSUMPTION 200W MAXIMUM POWER CONSUMPTION 250W WEIGHT 280Kg Coastal Amusements Inc. | PLINKO Quick Setup Manual... -
Page 4: Installation
A. Fix the brackets as shown in the picture on the bottom case and main case. B. Put Main and Bottom case end to end and secure both cases as shown below. Coastal Amusements Inc. | PLINKO Quick Setup Manual... - Page 5 Installation C. Assemble the brackets as shown in the picture. D. Put the Front Case and Main Case together and secure them. Coastal Amusements Inc. | PLINKO Quick Setup Manual...
- Page 6 Installation E. Assemble the Wing Assy brackets and attached the Wing Assy. F. Attach the Score Panel to the main case and secure it. Coastal Amusements Inc. | PLINKO Quick Setup Manual...
- Page 7 Installation G. Fix the brackets as shown in the picture and mount the billboard. H. Fix the brackets as shown in the picture and mount the Mega Bonus FND. Coastal Amusements Inc. | PLINKO Quick Setup Manual...
