5.3.4.1 Serial Port 1 Configuration

Use the Serial Port 1 Configuration menu (BIOS Menu 14) to configure the serial port.

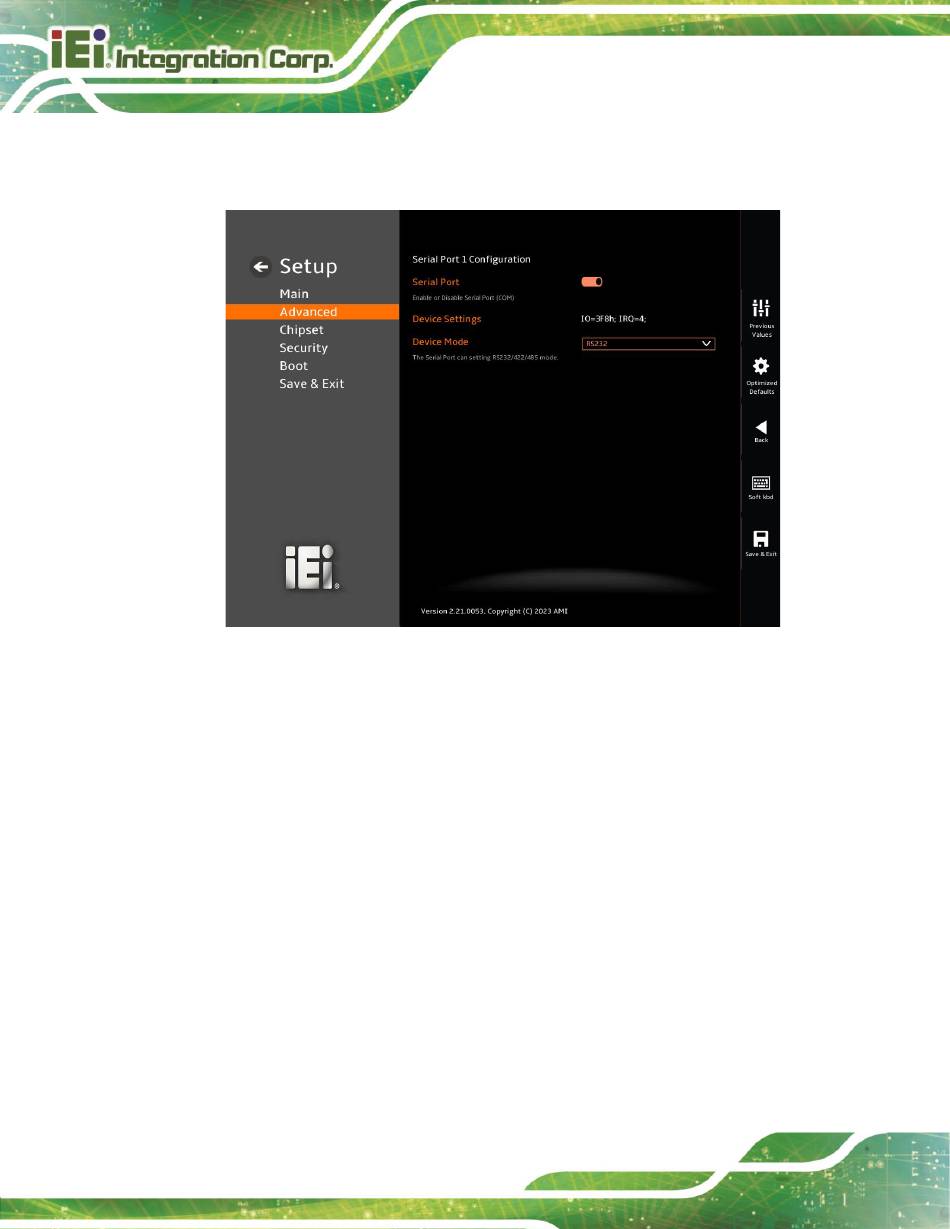

BIOS Menu 14: Serial Port 1 Configuration Menu

➔ Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
➔
Disabled
➔
Enabled
➔ Device Settings
The Device Settings option shows the serial port IO port address and interrupt address.
➔
IO=3F8h;
IRQ=4
➔ Device Mode [RS232]
Use the Device Mode option to change the serial port mode.
Page 104
Disable the serial port
D Enable the serial port
EFAULT
Serial Port I/O port address is 3F8h and the interrupt
address is IRQ4
IMB-ADL-Q670
