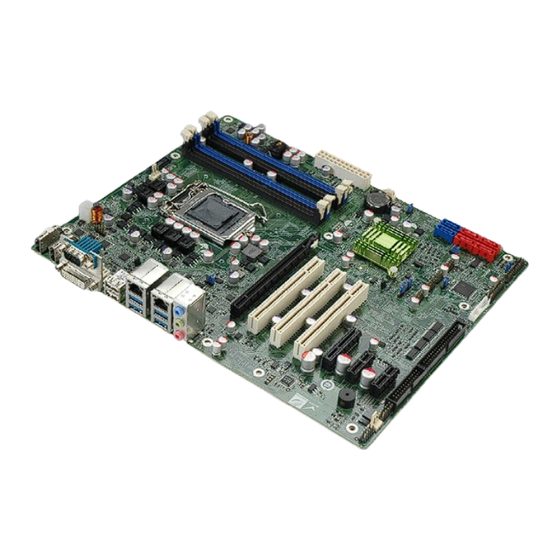

IEI Technology IMBA-Q770 User Manual

Atx motherboard for 22nm lg a 1155 intel core i7/i5/i3 cpu, intel q77 chipset, ddr3, dual hdmi/dvi-i, dual intel pcie gbe, usb 3.0, sata 6gb/s, hd audio and rohs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

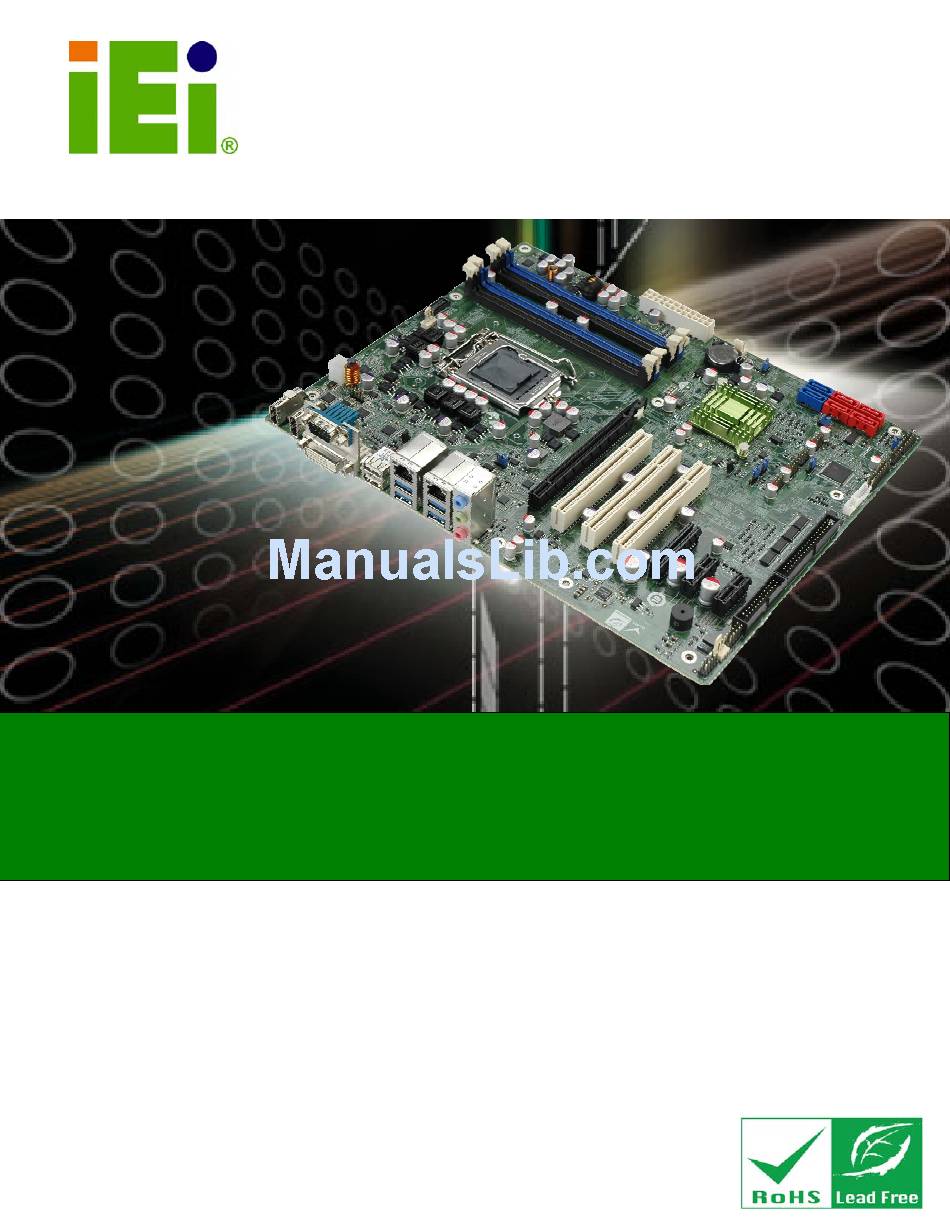

IMBA-Q770 ATX Motherboard
IEI Technology Corp.
MODEL:
IMBA-Q770
ATX Motherboard for 22nm LGA 1155 Intel® Core™ i7/i5/i3
CPU, Intel® Q77 Chipset, DDR3, Dual HDMI/DVI-I, Dual Intel®
PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
Rev. 1.01 – 4 February, 2013

User Manual

Page i

Advertisement

Table of Contents
loading

Related Manuals for IEI Technology IMBA-Q770

Summary of Contents for IEI Technology IMBA-Q770

  • Page 1: User Manual

    IMBA-Q770 ATX Motherboard IEI Technology Corp. MODEL: IMBA-Q770 ATX Motherboard for 22nm LGA 1155 Intel® Core™ i7/i5/i3 CPU, Intel® Q77 Chipset, DDR3, Dual HDMI/DVI-I, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS User Manual Page i...
  • Page 2 IMBA-Q770 ATX Motherboard Revision Date Version Changes 1.01 Added RAID support description 4 February, 2013 1.00 Initial release 13 August, 2012 Page ii...
  • Page 3 IMBA-Q770 ATX Motherboard Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    PTIONAL TEMS 3 CONNECTORS ......................14 3.1 P ..............15 ERIPHERAL NTERFACE ONNECTORS 3.1.1 IMBA-Q770 Layout..................15 3.1.2 Peripheral Interface Connectors ..............16 3.1.3 External Interface Panel Connectors............... 17 3.2 I ..............17 NTERNAL ERIPHERAL ONNECTORS 3.2.1 +12V Power Connector ................... 17 3.2.2 ATX Power Connector ..................
  • Page 5 IMBA-Q770 ATX Motherboard 3.2.12 Parallel Port Connector ................28 3.2.13 PCI Slots ......................29 3.2.14 PCIe x1 Slots....................30 3.2.15 PCI Express x4 Slot..................31 3.2.16 PCI Express x16 Slot..................31 3.2.17 SATA 3Gb/s Drive Connectors............... 32 3.2.18 SATA 6Gb/s Drive Connectors............... 33 3.2.19 Serial Port Connector, RS-422/485..............
  • Page 6 IMBA-Q770 ATX Motherboard 4.5 E ........... 62 XTERNAL ERIPHERAL NTERFACE ONNECTION 4.5.1 Audio Connector ....................62 4.5.2 DVI-I Display Device Connection ..............63 4.5.3 HDMI Display Device Connection ..............64 4.5.4 LAN Connection....................65 4.5.5 Serial Device Connection ................66 4.5.6 USB Connection (Dual Connector) ..............
  • Page 7 IMBA-Q770 ATX Motherboard 5.4.1 PCH-IO Configuration .................. 100 5.4.1.1 PCH Azalia Configuration ..............101 5.4.2 System Agent (SA) Configuration ..............102 5.4.2.1 Graphics Configuration................102 5.4.2.2 Memory Configuration ................105 5.5 B ........................105 5.6 S ....................... 107 ECURITY 5.7 S &...
  • Page 8 IMBA-Q770 ATX Motherboard B.5.2 Backup System ....................165 B.5.3 Restore Your Last Backup................166 B.5.4 Manual......................167 B.6 R LAN ........168 ESTORE YSTEMS FROM A INUX ERVER THROUGH B.6.1 Configure DHCP Server Settings ..............169 B.6.2 Configure TFTP Settings ................170 B.6.3 Configure One Key Recovery Server Settings ..........
  • Page 9 IMBA-Q770 ATX Motherboard List of Figures Figure 1-1: IMBA-Q770 ........................2 Figure 1-2: Connectors ........................3 Figure 1-3: IMBA-Q770 Dimensions (mm)..................4 Figure 1-4: Data Flow Diagram......................5 Figure 3-1: Connectors and Jumpers..................15 Figure 3-2: +12V Power Connector Location................18 Figure 3-3: ATX Power Connector Pinout Location..............19 Figure 3-4: Battery Connector Locations...................20...
  • Page 10 IMBA-Q770 ATX Motherboard Figure 3-27: Audio Connector .....................41 Figure 3-28: Ethernet Connector....................41 Figure 3-29: HDMI Connector ......................43 Figure 3-30: Serial Port Connector Pinouts................44 Figure 3-31: DVI-I Connector .......................44 Figure 4-1: Disengage the CPU Socket Load Lever..............49 Figure 4-2: Remove Protective Cover..................50 Figure 4-3: Insert the Socket LGA1155 CPU................51...
  • Page 11 IMBA-Q770 ATX Motherboard Figure 6-10: Graphics Driver Setup Operations ..............118 Figure 6-11: Graphics Driver Installation Finish Screen ............118 Figure 6-12: Windows Control Panel ..................119 Figure 6-13: System Control Panel ..................119 Figure 6-14: Device Manager List .................... 120 Figure 6-15: Update Driver Software Window ................
  • Page 12 IMBA-Q770 ATX Motherboard Figure B-10: Press F3 to Boot into Recovery Mode............... 149 Figure B-11: Recovery Tool Menu ................... 149 Figure B-12: About Symantec Ghost Window ................ 150 Figure B-13: Symantec Ghost Path ..................150 Figure B-14: Select a Local Source Drive ................151 Figure B-15: Select a Source Partition from Basic Drive ............
  • Page 13 IMBA-Q770 ATX Motherboard List of Tables Table 1-1: IMBA-Q770 Specifications ...................8 Table 2-1: Packing List.........................12 Table 2-2: Optional Items......................13 Table 3-1: Peripheral Interface Connectors ................17 Table 3-2: Rear Panel Connectors ....................17 Table 3-3: +12V Power Connector Pinouts ................18 Table 3-4: ATX Power Connector Pinouts .................19 Table 3-5: Battery Connector (BT2) Pinouts................21...
  • Page 14 IMBA-Q770 ATX Motherboard Table 3-28: USB 2.0 Port Pinouts....................45 Table 4-1: Jumpers ........................55 Table 4-2: AT/ATX Power Mode Jumper Settings ..............56 Table 4-3: Clear BIOS Jumper Settings..................57 Table 4-4: DVI-I/VGA Select Jumper Settings................57 Table 4-5: Flash Descriptor Security Override Jumper Settings..........58 Table 4-6: USB Power Select Jumper Settings .................59...
  • Page 15 IMBA-Q770 ATX Motherboard BIOS Menus BIOS Menu 1: Main ........................73 BIOS Menu 2: Advanced ......................75 BIOS Menu 3: ACPI Settings .......................75 BIOS Menu 4: RTC Wake Settings ....................76 BIOS Menu 5: Trusted Computing ....................78 BIOS Menu 6: CPU Configuration ....................79 BIOS Menu 7: SATA Configuration .....................80...

  • Page 16: Introduction

    IMBA-Q770 ATX Motherboard Chapter Introduction Page 1...

  • Page 17: Introduction

    240-pin 1600/1333 MHz DDR3 DIMM modules up to 32 GB. The IMBA-Q770 includes dual HDMI and DVI-I ports. Expansion and I/O include three PCI slots, one PCIe x16 slot, one PCIe x4 slot, two PCIe x1 slots, four USB 3.0 by rear panel, two USB 2.0 by rear panel, eight USB 2.0 by pin headers, two SATA 6Gb/s...

  • Page 18: Connectors

    One external RS-232 serial port Four internal RS-232 serial port connectors One internal RS-422/485 serial port connector High Definition Audio RoHS compliant 1.3 Connectors The connectors on the IMBA-Q770 are shown in the figure below. Figure 1-2: Connectors Page 3...

  • Page 19: Dimensions

    IMBA-Q770 ATX Motherboard 1.4 Dimensions The main dimensions of the IMBA-Q770 are shown in the diagram below. Figure 1-3: IMBA-Q770 Dimensions (mm) Page 4...

  • Page 20: Data Flow

    IMBA-Q770 ATX Motherboard 1.5 Data Flow F igure 1-4 shows the data flow between the system chipset, the CPU and other components installed on the motherboard. Figure 1-4: Data Flow Diagram Page 5...

  • Page 21: Technical Specifications

    IMBA-Q770 ATX Motherboard 1.6 Technical Specifications The IMBA-Q770 technical specifications are listed below. Specification/Model IMBA-Q770 Form Factor LGA1155 Intel® Core™ i7/i5/i3 quad/dual core CPU CPU Supported Intel® Q77 Chipset Memory Four 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 SDRAM DIMMs support (system max. 32 GB) Graphics Engine Intel®...
  • Page 22 IMBA-Q770 ATX Motherboard Specification/Model IMBA-Q770 Two RJ-45 GbE ports (LAN2 with Intel® AMT 8.0 support) Ethernet Fan Connectors One 4-pin CPU fan connector Two 3-pin system fan connectors Front Panel One 14-pin header (power LED, HDD LED, speaker, power button,...

  • Page 23: Table 1-1: Imba-Q770 Specifications

    IMBA-Q770 ATX Motherboard Specification/Model IMBA-Q770 1200 g / 700 g Weight GW/NW Table 1-1: IMBA-Q770 Specifications Page 8...

  • Page 24: Packing List

    IMBA-Q770 ATX Motherboard Chapter Packing List Page 9...

  • Page 25: Anti-Static Precautions

    Only handle the edges of the PCB: Don't touch the surface of the motherboard. Hold the motherboard by the edges when handling. 2.2 Unpacking Precautions When the IMBA-Q770 is unpacked, please do the following: Follow the antistatic guidelines above. Make sure the packing box is facing upwards when opening.

  • Page 26: Packing List

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the IMBA-Q770 was purchased from or contact an IEI sales representative directly by sending an email to ales@iei.com.tw.

  • Page 27: Optional Items

    IMBA-Q770 ATX Motherboard Quantity Item and Part Number Image Utility CD Quick Installation Guide Table 2-1: Packing List 2.4 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image Dual-port USB cable with bracket...

  • Page 28: Table 2-2: Optional Items

    IMBA-Q770 ATX Motherboard Item and Part Number Image LGA1155/LGA1156 cooler kit (1U chassis compatible, 45W) (P/N: CF-1156C-RS) LGA1155/LGA1156 cooler kit (1U chassis compatible, 65W) (P/N: CF-1156D-RS) RS-422/485 cable (200 mm) (P/N: 32205-003800-100-RS) Parallel port cable (P/N: 19800-000049-RS) Dual RS-232 cable (230 mm)

  • Page 29: Connectors

    IMBA-Q770 ATX Motherboard Chapter Connectors Page 14...

  • Page 30: Peripheral Interface Connectors

    IMBA-Q770 ATX Motherboard 3.1 Peripheral Interface Connectors This chapter details all the jumpers and connectors. 3.1.1 IMBA-Q770 Layout The figures below show all the connectors and jumpers. Figure 3-1: Connectors and Jumpers Page 15...

  • Page 31: Peripheral Interface Connectors

    IMBA-Q770 ATX Motherboard 3.1.2 Peripheral Interface Connectors The table below lists all the connectors on the board. Connector Type Label +12V ATX power supply connector 4-pin Molex CPU12V1 ATX Power connector 24-pin ATX ATX1 Battery connector 2-pin wafer Battery holder...

  • Page 32: External Interface Panel Connectors

    DB-9, DVI-I VIDEO1 USB 2.0 connectors USB 2.0 CNUSB1 Table 3-2: Rear Panel Connectors 3.2 Internal Peripheral Connectors The section describes all of the connectors on the IMBA-Q770. 3.2.1 +12V Power Connector CN Label: CPU12V1 CN Type: 4-pin Molex CN Location:...

  • Page 33: Atx Power Connector

    IMBA-Q770 ATX Motherboard The connector supports the +12V power supply. Figure 3-2: +12V Power Connector Location Description VREG_12V VREG_12V Table 3-3: +12V Power Connector Pinouts 3.2.2 ATX Power Connector CN Label: ATX1 CN Type: 24-pin ATX CN Location: See Figure 3-3...

  • Page 34: Figure 3-3: Atx Power Connector Pinout Location

    IMBA-Q770 ATX Motherboard Figure 3-3: ATX Power Connector Pinout Location Description Description +3.3V +3.3V +3.3V -12V -IO_PSON PWRGD_PS V_5P0_A +12V +12V +3.3V Table 3-4: ATX Power Connector Pinouts Page 19...

  • Page 35: Battery Connectors

    IMBA-Q770 ATX Motherboard 3.2.3 Battery Connectors CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations. CN Label: BAT1, BT2...

  • Page 36: Ddr3 Dimm Slots

    IMBA-Q770 ATX Motherboard Description VBATT Table 3-5: Battery Connector (BT2) Pinouts 3.2.4 DDR3 DIMM Slots CN Label: CHA_DIMM1, CHA_DIMM2, CHB_DIMM1, CHB_DIMM2 CN Type: DDR3 DIMM slot CN Location: F igure 3-5 The DIMM slots are for DDR3 DIMM memory modules.

  • Page 37: Fan Connector (Cpu)

    IMBA-Q770 ATX Motherboard CN Location: See Figure 3-6 CN Pinouts: See Table 3-6 The digital I/O connector provides programmable input and output for external devices. The digital I/O provides 4-bit output and 4-bit input. Figure 3-6: Digital I/O Connector Location...

  • Page 38: Fan Connectors (System)

    IMBA-Q770 ATX Motherboard Figure 3-7: CPU Fan Connector Location Description +12 V FANIO1 Table 3-7: CPU Fan Connector Pinouts 3.2.7 Fan Connectors (System) CN Label: CPU_FAN2, SYS_FAN2 3-pin wafer CN Type: CN Location: See Figure 3-8 CN Pinouts: See Table 3-8 Each fan connector attaches to a cooling fan.

  • Page 39: Front Panel Audio Connector

    IMBA-Q770 ATX Motherboard Figure 3-8: System Fan Connector Locations Description FANIO +12 V (PWM) Table 3-8: System Fan Connector Pinouts 3.2.8 Front Panel Audio Connector CN Label: FP_AUDIO1 CN Type: 10-pin header CN Location: See Figure 3-9 CN Pinouts: See Table 3-9 This connector connects to speakers, a microphone and an audio input.

  • Page 40: Front Panel Connector

    IMBA-Q770 ATX Motherboard Figure 3-9: Front Panel Audio Connector Location Description Description LMIC2_L AUD GND LMIC2_R PRESENCE# LLINE2-R MIC2-JD F_SENSE LLINE2-L LINE2-JD Table 3-9: Front Panel Audio Connector Pinouts 3.2.9 Front Panel Connector CN Label: F_PANEL1 14-pin header CN Type:...

  • Page 41: I2C Connector

    IMBA-Q770 ATX Motherboard Figure 3-10: Front Panel Connector Location Function Description Function Description Power LED ACPILED Speaker Beep Power Power Button PWRBT_SW#_C PC Beep Reset HDD LED HDDLED EXTRST- HDDLED- Table 3-10: Front Panel Connector Pinouts 3.2.10 I2C Connector CN Label:...

  • Page 42: Keyboard/Mouse Connector

    IMBA-Q770 ATX Motherboard Figure 3-11: I2C Connector Location Description +5V_DUAL PCH_GP38_PU PCH_GP39_PU Table 3-11: I2C Connector Pinouts 3.2.11 Keyboard/Mouse Connector CN Label: KB_MS1 CN Type: 6-pin wafer CN Location: See Figure 3-12 CN Pinouts: See Table 3-12 The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a PS/2 keyboard and mouse.

  • Page 43: Parallel Port Connector

    IMBA-Q770 ATX Motherboard Figure 3-12: Keyboard/Mouse Connector Location Description VCC5_KBMS MSDATA MSCLK KBDATA KBCLK KBGND Table 3-12: Keyboard/Mouse Connector Pinouts 3.2.12 Parallel Port Connector CN Label: LPT1 CN Type: 26-pin box header CN Location: See Figure 3-13 CN Pinouts: See Table 3-13 The parallel port connector connects to a parallel port connector interface or some other parallel port device such as a printer.

  • Page 44: Pci Slots

    IMBA-Q770 ATX Motherboard Figure 3-13: Parallel Port Connector Location Description Description STROBE# RPD0 DATA1 RPD2 DATA3 RPD4 DATA5 RPD6 DATA7 SIO_ACK# SIO_BUSY SIO_PE SIO_SLCT SIO_AFD# SIO_ERR# SIO_INIT# SIO_SLIN# Table 3-13: Parallel Port Connector Pinouts 3.2.13 PCI Slots CN Label: PCI1, PCI2, PCI3...

  • Page 45: Pcie X1 Slots

    IMBA-Q770 ATX Motherboard The PCI slot enables a PCI expansion module to be connected to the board. Figure 3-14: PCI Slot Locations 3.2.14 PCIe x1 Slots CN Label: PCIEX1_1, PCIEX1_2 CN Type: PCIe x1 slot CN Location: See Figure 3-15 The PCIe x1 slots are for PCIe x1 expansion cards.

  • Page 46: Pci Express X4 Slot

    IMBA-Q770 ATX Motherboard 3.2.15 PCI Express x4 Slot CN Label: PCIEX4_2 PCIe x4 slot CN Type: CN Location: See Figure 3-16 The PCIe x4 expansion card slot is for PCIe x4 expansion card. Figure 3-16: PCIe x4 Slot Location 3.2.16 PCI Express x16 Slot...

  • Page 47: Sata 3Gb/S Drive Connectors

    IMBA-Q770 ATX Motherboard Figure 3-17: PCIe x16 Slot Location 3.2.17 SATA 3Gb/s Drive Connectors CN Label: SATA3, SATA4, SATA5, SATA6 CN Type: 7-pin SATA connector CN Location: See Figure 3-18 CN Pinouts: See Table 3-14 The SATA drive connectors can be connected to SATA drives and support up to 3Gb/s data transfer rate.

  • Page 48: Sata 6Gb/S Drive Connectors

    IMBA-Q770 ATX Motherboard Figure 3-18: SATA 3Gb/s Drive Connector Locations Description Description Table 3-14: SATA 3Gb/s Drive Connector Pinouts 3.2.18 SATA 6Gb/s Drive Connectors CN Label: SATA1, SATA2 7-pin SATA connector CN Type: CN Location: See Figure 3-19 CN Pinouts:...

  • Page 49: Serial Port Connector, Rs-422/485

    IMBA-Q770 ATX Motherboard Figure 3-19: SATA 6Gb/s Drive Connector Locations Description Description Table 3-15: SATA 6Gb/s Drive Connector Pinouts 3.2.19 Serial Port Connector, RS-422/485 CN Label: COM4 4-pin wafer CN Type: CN Location: See Figure 3-20 CN Pinouts: See Table 3-16 This connector provides RS-422 or RS-485 communications.

  • Page 50: Serial Port Connectors, Rs-232

    IMBA-Q770 ATX Motherboard Figure 3-20: RS-422/485 Connector Location Description Description RXD422- TXD422+/TXD485+ RXD422+ TXD422-/TXD485- Table 3-16: RS-422/485 Connector Pinouts 3.2.20 Serial Port Connectors, RS-232 CN Label: COM2_3_5_6 CN Type: 40-pin box header CN Location: See Figure 3-21 CN Pinouts: See Table 3-17 Each of these connectors provides RS-232 connections.

  • Page 51: Smbus Connector

    IMBA-Q770 ATX Motherboard Description Description -NDCD1 -NCTS1 -NDSR1 -NDTR1 NSIN1 -XRI1 -NRTS1 NSOUT1 Table 3-17: RS-232 Serial Port Connector Pinouts 3.2.21 SMBus Connector CN Label: SMBUS_1 4-pin wafer CN Type: CN Location: See Figure 3-22 CN Pinouts: See Table 3-18 The SMBus (System Management Bus) connector provides low-speed system management communications.

  • Page 52: Spi Rom Connector

    IMBA-Q770 ATX Motherboard Description +5V_DUAL SMBCLK SMBDATA Table 3-18: SMBus Connector Pinouts 3.2.22 SPI ROM Connector CN Label: JSPI1 CN Type: 8-pin header CN Location: See Figure 3-23 CN Pinouts: See Table 3-19 The SPI connector is used to flash the BIOS.

  • Page 53: Tpm Connector

    IMBA-Q770 ATX Motherboard Description Description Table 3-19: SPI Connector Pinouts 3.2.23 TPM Connector CN Label: TPM1 20-pin header CN Type: CN Location: See Figure 3-24 CN Pinouts: See Table 3-20 The TPM connector connects to a TPM module. Figure 3-24: TPM Connector Location...

  • Page 54: Usb Connectors

    IMBA-Q770 ATX Motherboard Description Description SB3V SERIRQ GND1 GLKRUN# LPCPD# LDRQ# Table 3-20: TPM Connector Pinouts 3.2.24 USB Connectors CN Label: USB2, USB3, USB4, USB5 8-pin header CN Type: CN Location: See Figure 3-25 CN Pinouts: See Table 3-21 The USB connectors connect to USB devices. Each pin header provides two USB ports.

  • Page 55: External Peripheral Interface Connector Panel

    IMBA-Q770 ATX Motherboard Description Description DATA+ DATA- Table 3-21: USB Port Connector Pinouts 3.3 External Peripheral Interface Connector Panel The figure below shows the external peripheral interface connector (EPIC) panel. The EPIC panel consists of the following: Figure 3-26: External Peripheral Interface Connector 3.3.1 Audio Connector...

  • Page 56: Ethernet And Usb 3.0 Connectors

    IMBA-Q770 ATX Motherboard Figure 3-27: Audio Connector 3.3.2 Ethernet and USB 3.0 Connectors CN Label: LAN1_USB01, LAN2_USB23 CN Type: RJ-45 and USB 3.0 ports CN Location: See Figure 3-26 CN Pinouts: See Table 3-22 and Table 3-24 Each LAN connector connects to a local network.

  • Page 57: Hdmi Connectors

    10 Mb/s blinking: data is being sent/received green: 100 Mb/s orange: 1000 Mb/s Table 3-23: Connector LEDs The IMBA-Q770 has four external USB 3.0 ports. Each USB 3.0 port can be connected to a USB device. Description Description VBUS...

  • Page 58: Serial Port And Dvi-I Connector

    IMBA-Q770 ATX Motherboard Description Description HDMI_GND HDMI_DATA0# HDMI_GND HDMI_CLK HDMI_GND HDMI_GND HDMI_CLK# Table 3-25: HDMI Connector Pinouts Figure 3-29: HDMI Connector 3.3.4 Serial Port and DVI-I Connector CN Label: VIDEO1 CN Type: DB-9 and DVI-I connectors CN Location: See Figure 3-26...

  • Page 59: Figure 3-30: Serial Port Connector Pinouts

    IMBA-Q770 ATX Motherboard Figure 3-30: Serial Port Connector Pinouts The 24-pin Digital Visual Interface (DVI) connector connects to high-speed, high-resolution digital displays. The DVI-I connector supports both digital and analog signals. Description Description Description DVI_DATA2# DVI_DATA1# DVI_DATA0# DVI_DATA2 DVI_DATA1 DVI_DATA0...

  • Page 60: Usb 2.0 Connector

    CN Type: CN Location: See Figure 3-26 CN Pinouts: See Table 3-22 The IMBA-Q770 has two external USB 2.0 ports. The ports connect to both USB 2.0 and USB 1.1 devices. Description DATA - DATA + Table 3-28: USB 2.0 Port Pinouts...

  • Page 61: Installation

    IMBA-Q770 ATX Motherboard Chapter Installation Page 46...

  • Page 62: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the IMBA-Q770. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the IMBA-Q770 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
  • Page 63 This helps to prevent potential ESD damage. Turn all power to the IMBA-Q770 off: When working with the IMBA-Q770, make sure that it is disconnected from all power supplies and that no electricity is being fed into the system.

  • Page 64: Socket Lga1155 Cpu Installation

    IMBA-Q770 ATX Motherboard 4.2.1 Socket LGA1155 CPU Installation WARNING: CPUs are expensive and sensitive components. When installing the CPU please be careful not to damage it in anyway. Make sure the CPU is installed properly and ensure the correct cooling kit is properly installed.

  • Page 65: Figure 4-2: Remove Protective Cover

    IMBA-Q770 ATX Motherboard Figure 4-2: Remove Protective Cover Step 3: Inspect the CPU socket. Make sure there are no bent pins and make sure the socket contacts are free of foreign material. If any debris is found, remove it with compressed air.

  • Page 66: Figure 4-3: Insert The Socket Lga1155 Cpu

    IMBA-Q770 ATX Motherboard Figure 4-3: Insert the Socket LGA1155 CPU Step 8: Close the CPU socket. Close the load plate and pull the load lever back a little to have the load plate be able to secure to the knob. Engage the load lever by pushing it back to its original position (Figure 4-4).

  • Page 67: Socket Lga1155 Cooling Kit Installation

    IMBA-Q770 ATX Motherboard 4.2.2 Socket LGA1155 Cooling Kit Installation WARNING: DO NOT attempt to install a push-pin cooling fan. The pre-installed support bracket prevents the board from bending and is ONLY compatible with captive screw type cooling fans. Figure 4-5: Cooling Kits The cooling kit can be bought from IEI.

  • Page 68: Figure 4-6: Cooling Kit Support Bracket

    Secure the cooling kit by fastening the four retention screws of the cooling kit. Step 5: Connect the fan cable. Connect the cooling kit fan cable to the fan connector on the IMBA-Q770. Carefully route the cable and avoid heat generating chips and fan blades.Step 0:...

  • Page 69: Dimm Installation

    IMBA-Q770 ATX Motherboard 4.2.3 DIMM Installation To install a DIMM, please follow the steps below and refer to Figure 4-7. Figure 4-7: DIMM Installation Step 1: Open the DIMM socket handles. Open the two handles outwards as far as they can. See Figure 4-7.

  • Page 70: Jumper Settings

    IMBA-Q770 ATX Motherboard 4.3 Jumper Settings NOTE: A jumper is a metal bridge used to close an electrical circuit. It consists of two or three metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To...

  • Page 71: At/Atx Power Select Jumper

    IMBA-Q770 ATX Motherboard 4.3.1 AT/ATX Power Select Jumper Jumper Label: JATX_AT1 2-pin header Jumper Type: Jumper Settings: See Table 4-2 Jumper Location: See Figure 4-8 The AT/ATX Power Select jumper specifies the systems power mode as AT or ATX. Setting...

  • Page 72: Dvi-I/Vga Select Jumper

    IMBA-Q770 ATX Motherboard Setting Description Short 1-2 Normal (Default) Short 2-3 Clear BIOS Table 4-3: Clear BIOS Jumper Settings Figure 4-9: Clear BIOS Jumper Location 4.3.3 DVI-I/VGA Select Jumper Jumper Label: Jumper Type: 3-pin header Jumper Settings: See Table 4-4...

  • Page 73: Flash Descriptor Security Override

    IMBA-Q770 ATX Motherboard Figure 4-10: DVI-I/VGA Select Jumper Location 4.3.4 Flash Descriptor Security Override Jumper Label: J_FLASH1 3-pin header Jumper Type: Jumper Settings: See Table 4-5 Jumper Location: See Figure 4-11 The Flash Descriptor Security Override jumper specifies whether to override the flash descriptor.

  • Page 74: Usb Power Select Jumpers

    IMBA-Q770 ATX Motherboard 4.3.5 USB Power Select Jumpers Jumper Label: USB_PWR2, USB_PWR3, USB_PWR4, USB_PWR5, CNUSB1_PWR1 3-pin header Jumper Type: Jumper Settings: See Table 4-6 Jumper Location: See Figure 4-12 The USB Power Select jumper specifies the USB power. Setting Description...

  • Page 75: Wake-On Lan Jumper

    IMBA-Q770 ATX Motherboard 4.3.6 Wake-on LAN Jumper CN Label: WOL_SEL1 3-pin header CN Type: CN Location: See Figure 4-13 CN Pinouts: See Table 4-7 The Wake-on LAN connector allows the user to enable or disable the Wake-on LAN (WOL) function.

  • Page 76: Internal Peripheral Device Connections

    This section outlines the installation of peripheral devices to the onboard connectors. 4.4.1 SATA Drive Connection The IMBA-Q770 is shipped with four SATA drive cables. To connect the SATA drives to the connectors, please follow the steps below. Step 1: Locate the connectors.

  • Page 77: External Peripheral Interface Connection

    This section describes connecting devices to the external connectors on the IMBA-Q770. 4.5.1 Audio Connector The audio jacks on the external audio connector enable the IMBA-Q770 to be connected to a stereo sound setup. Each jack supports both input and output. When connecting a device, the High Definition Audio utility will automatically detect input or output.

  • Page 78: Dvi-I Display Device Connection

    4.5.2 DVI-I Display Device Connection The IMBA-Q770 has a single female DVI-I connector on the external peripheral interface panel. The DVI-I connector is connected to a digital display device. To connect a digital display device to the IMBA-Q770, please follow the instructions below.

  • Page 79: Hdmi Display Device Connection

    Step 0: 4.5.3 HDMI Display Device Connection The HDMI connector transmits a digital signal to compatible HDMI display devices such as a TV or computer screen. To connect the HDMI cable to the IMBA-Q770, follow the steps below. Step 1: Locate the HDMI connectors.

  • Page 80: Lan Connection

    Locate the RJ-45 connectors. The locations of the USB connectors are shown in Chapter 3. Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of the RJ-45 connectors on the IMBA-Q770. See Figure 4-19. Page 65...

  • Page 81: Serial Device Connection

    RJ-45 connector into the on-board RJ-45 connector. Step 0: 4.5.5 Serial Device Connection The IMBA-Q770 has one male DB-9 connector on the external peripheral interface panel for serial device connection. Follow the steps below to connect a serial device to the IMBA-Q770.

  • Page 82: Usb Connection (Dual Connector)

    4.5.6 USB Connection (Dual Connector) The external USB Series "A" receptacle connectors provide easier and quicker access to external USB devices. Follow the steps below to connect USB devices to the IMBA-Q770. Step 1: Locate the USB Series "A" receptacle connectors. The location of the USB Series "A"...

  • Page 83: Intel ® Amt Setup Procedure

    ® 4.6 Intel AMT Setup Procedure The IMBA-Q770 is featured with the Intel® Active Management Technology (AMT). To enable the Intel® AMT function, follow the steps below. Step 1: Make sure the DIMM socket is installed with one DDR3 memory.
  • Page 84 IMBA-Q770 ATX Motherboard NOTE: To change the password, enter a new password following the strong password rule (containing at least one upper case letter, one lower case letter, one digit and one special character, and be at least eight characters).

  • Page 85: Bios

    IMBA-Q770 ATX Motherboard Chapter BIOS Page 70...

  • Page 86: Introduction

    IMBA-Q770 ATX Motherboard 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. 5.1.1 Starting Setup The UEFI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.

  • Page 87: Getting Help

    IMBA-Q770 ATX Motherboard Function Esc key Main Menu – Quit and not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu General help, only for Status Page Setup Menu and Option...

  • Page 88: Main

    IMBA-Q770 ATX Motherboard 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.

  • Page 89: Advanced

    IMBA-Q770 ATX Motherboard The Main menu lists the following system details: BIOS Information Processor Information Memory Information PCH Information SPI Clock Frequency The Main menu has two user configurable fields: System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year.

  • Page 90: Acpi Settings

    IMBA-Q770 ATX Motherboard Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit > ACPI Settings System ACPI Parameters > RTC Wake Settings > Trusted Computing > CPU Configuration > SATA Configuration ---------------------- >...

  • Page 91: Rtc Wake Settings

    IMBA-Q770 ATX Motherboard ACPI Sleep State [S1 only (CPU Stop Clock)] Use the ACPI Sleep State option to specify the sleep state the system enters when it is not being used. S1 only (CPU Stop The system enters S1(POS) sleep state. The...

  • Page 92: Trusted Computing

    IMBA-Q770 ATX Motherboard Wake System with Fixed Time [Disabled] Use the Wake System with Fixed Time option to specify the time the system should be roused from a suspended state. Disabled The real time clock (RTC) cannot generate a wake...

  • Page 93: Cpu Configuration

    IMBA-Q770 ATX Motherboard Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Configuration Enables or Disables BIOS Security Device Support [Disable] support for security device. O.S. will not Current Status Information show Security Device. NO Security Device Found...

  • Page 94: Bios Menu 6: Cpu Configuration

    IMBA-Q770 ATX Motherboard Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced CPU Configuration When enabled, a VMM can utilize the additional Intel(R) Celeron(R) CPU G530T @ 2.00GHz hardware capabilities CPU Signature 206a7 provided by Vanderpool Microcode Patch...

  • Page 95: Sata Configuration

    IMBA-Q770 ATX Motherboard L1 Code Cache: Lists the amount of code storage space on the L1 cache. L2 Cache: Lists the amount of storage space on the L2 cache. L3 Cache: Lists the amount of storage space on the L3 cache.

  • Page 96: Intel(R) Rapid Start Technology

    IMBA-Q770 ATX Motherboard Enabled Enables the on-board SATA controller. EFAULT Disables the on-board SATA controller. Disabled SATA Mode Selection [IDE] Use the SATA Mode Selection option to configure SATA devices as normal IDE devices. Configures SATA devices as normal IDE device.

  • Page 97: Intel Txt(Lt) Configuration

    IMBA-Q770 ATX Motherboard 5.3.7 Intel TXT(LT) Configuration Use the Intel TXT(LT) Configuration (BIOS Menu 9) menu to configure Intel Trusted Execution Technology support. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Intel Trusted Execution Technology Configuration Intel TXT support only can be enabled/disabled if SMX is enabled.

  • Page 98: Bios Menu 10: Amt Configuration

    IMBA-Q770 ATX Motherboard Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Intel AMT [Enabled] Enable/Disable Intel (R) Un-Configure ME [Disabled] Active Management Technology BIOS Extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution.

  • Page 99: Usb Configuration

    IMBA-Q770 ATX Motherboard 5.3.9 USB Configuration Use the USB Configuration menu (BIOS Menu 11) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.

  • Page 100: F81866 Super Io Configuration

    IMBA-Q770 ATX Motherboard 5.3.10 F81866 Super IO Configuration Use the F81866 Super IO Configuration menu (BIOS Menu 12) to set or change the configurations for the parallel port and serial ports. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
  • Page 101 IMBA-Q770 ATX Motherboard 5.3.10.1.1 Serial Port 1 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disabled Disable the serial port Enabled Enable the serial port EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.
  • Page 102 IMBA-Q770 ATX Motherboard Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address. Auto The serial port IO port address and interrupt address EFAULT are automatically detected. Serial Port I/O port address is 2F8h and the interrupt IO=2F8h;...
  • Page 103 IMBA-Q770 ATX Motherboard IO=3E8h; Serial Port I/O port address is 3E8h and the interrupt IRQ=10 address is IRQ10 Serial Port I/O port address is 3E8h and the interrupt IO=3E8h; address is IRQ10, 11 IRQ=10, 11 IO=2E8h; Serial Port I/O port address is 2E8h and the interrupt...
  • Page 104 IMBA-Q770 ATX Motherboard IO=2D0h; Serial Port I/O port address is 2D0h and the interrupt IRQ=10, 11 address is IRQ10, 11 Serial Port I/O port address is 2D8h and the interrupt IO=2D8h; address is IRQ10, 11 IRQ=10, 11 5.3.10.1.5 Serial Port 5 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.
  • Page 105 IMBA-Q770 ATX Motherboard 5.3.10.1.6 Serial Port 6 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disabled Disable the serial port Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.

  • Page 106: Parallel Port Configuration

    IMBA-Q770 ATX Motherboard 5.3.10.2 Parallel Port Configuration Use the Parallel Port Configuration menu (BIOS Menu 14) to configure the parallel port. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Parallel Port Configuration Enable or Disable Parallel Port (LPT/LPTE)

  • Page 107: F81866 H/W Monitor

    IMBA-Q770 ATX Motherboard IO=278h; Parallel Port I/O port address is 278h and the IRQ=5, 7 interrupt address is IRQ5, 7 Parallel Port I/O port address is 3BCh and the IO=3BCh; interrupt address is IRQ5, 7 IRQ=5, 7 Device Mode [STD Printer Mode] Use the Device Mode option to select the mode the parallel port operates in.

  • Page 108: Bios Menu 15: H/W Monitor

    IMBA-Q770 ATX Motherboard Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced PC Health Status Smart Fan Mode Select > Smart Fan Mode Configuration CPU temperature :+39 C Accuracy: 1. -5~ +10 degree around 100 degree. 2. -10~ +15 degree around 50 degree.

  • Page 109: Smart Fan Mode Configuration

    IMBA-Q770 ATX Motherboard 5.3.11.1 Smart Fan Mode Configuration Use the Smart Fan Mode Configuration submenu (BIOS Menu 16) to configure fan temperature and speed settings. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Smart Fan Mode Configuration...

  • Page 110: Serial Port Console Redirection

    IMBA-Q770 ATX Motherboard SYS_FAN1 Smart Fan Control [Auto Duty-Cycle Mode] Use the SYS_FAN1 Smart Fan Control option to configure the System Smart Fan (SYS_FAN1). Manual Duty The fan spins at the speed set in Manual by Duty Mode Cycle settings...

  • Page 111: Bios Menu 17: Serial Port Console Redirection

    IMBA-Q770 ATX Motherboard Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced COM1 Console Redirection Console Redirection [Disabled] Enable or Disable > Console Redirection Settings COM2 Console Redirection [Disabled] > Console Redirection Settings COM3 Console Redirection [Disabled] > Console Redirection Settings...
  • Page 112 IMBA-Q770 ATX Motherboard VT100+ The target terminal type is VT100+ The target terminal type is VT-UTF8 VT-UTF8 ANSI The target terminal type is ANSI EFAULT Bits per second [115200] Use the Bits per second option to specify the serial port transmission speed. The speed must match the other side.

  • Page 113: Iei Feature

    IMBA-Q770 ATX Motherboard Mark The parity bit is always 1. This option does not provide error detection. The parity bit is always 0. This option does not Space provide error detection. Stop Bits [1] Use the Stop Bits option to specify the number of stop bits used to indicate the end of a serial data packet.

  • Page 114: Chipset

    IMBA-Q770 ATX Motherboard Auto Recovery Function [Disabled] Use the Auto Recovery Function BIOS option to enable or disable the auto recovery function of the IEI One Key Recovery. Disabled Auto recovery function disabled EFAULT Auto recovery function enabled Enabled 5.4 Chipset Use the Chipset menu (BIOS Menu 19) to access the Hostbridge and Southbridge configuration menus.

  • Page 115: Pch-Io Configuration

    IMBA-Q770 ATX Motherboard 5.4.1 PCH-IO Configuration Use the PCH-IO Configuration menu (BIOS Menu 20) to configure the PCH parameters. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Chipset Auto Power Button Status [Disabled] Select AC power state when power is re-applied...

  • Page 116: Pch Azalia Configuration

    IMBA-Q770 ATX Motherboard Disabled Power saving function is disabled. EFAULT Power saving function is enabled. It will reduce power Enabled consumption when the system is off. 5.4.1.1 PCH Azalia Configuration Use the PCH Azalia Configuration menu (BIOS Menu 21) to configure the PCH Azalia settings.

  • Page 117: System Agent (Sa) Configuration

    IMBA-Q770 ATX Motherboard Azalia Internal HDMI Codec [Enabled] Use the Azalia Internal HDMI Codec option to enable or disable the internal HDMI codec for High Definition Audio. Disabled Disable internal HDMI codec for High Definition Audio Enable internal HDMI codec for High Definition Audio...

  • Page 118: Bios Menu 23: Graphics Configuration

    IMBA-Q770 ATX Motherboard Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Chipset Graphics Configuration Select which of IGFX/PEG/PCI Graphics Primary Display [Auto] device should be Primary DVMT Pre-Allocated [128M] Display Or select SG for DVMT Total Gfx Mem [MAX] Switchable Gfx.

  • Page 119: Bios Menu 24: Lcd Control

    IMBA-Q770 ATX Motherboard DVMT Total Gfx Mem [MAX] Use the DVMT Total Gfx Mem option to select DVMT5.0 total graphic memory size used by the internal graphic device. The following options are available: 128M 256M Default 5.4.2.1.1 LCD Control Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.

  • Page 120: Memory Configuration

    IMBA-Q770 ATX Motherboard 5.4.2.2 Memory Configuration Use the Memory Configuration submenu (BIOS Menu 25) to view memory information. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Chipset Memory Information Total Memory 2048 MB (DDR3) CHA_DIMM1 2048 MB (DDR3)
  • Page 121 IMBA-Q770 ATX Motherboard Bootup NumLock State [On] Use the Bootup NumLock State BIOS option to specify if the number lock setting must be modified during boot up. Allows the Number Lock on the keyboard to be EFAULT enabled automatically when the computer system boots up.

  • Page 122: Security

    IMBA-Q770 ATX Motherboard Launch PXE OpROM [Disabled] Use the Launch PXE OpROM option to enable or disable boot option for legacy network devices. Disabled Ignore all PXE Option ROMs EFAULT Load PXE Option ROMs. Enabled UEFI Boot [Disabled] Use the UEFI Boot option to enable or disable to boot from the UEFI devices.

  • Page 123: Save & Exit

    IMBA-Q770 ATX Motherboard User Password Use the User Password to set or change a user password. 5.7 Save & Exit Use the Save & Exit menu (BIOS Menu 28) to load default BIOS values, optimal failsafe values and to save configuration changes.
  • Page 124 IMBA-Q770 ATX Motherboard Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults. Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options.

  • Page 125: Software Drivers

    IMBA-Q770 ATX Motherboard Chapter Software Drivers Page 110...

  • Page 126: Available Software Drivers

    Intel® AMT Installation instructions are given below. 6.2 Software Installation All the drivers for the IMBA-Q770 are on the CD that came with the system. To install the drivers, please follow the steps below. Step 1: Insert the CD into a CD drive connected to the system.

  • Page 127: Figure 6-1: Introduction Screen

    IMBA-Q770 ATX Motherboard Figure 6-1: Introduction Screen Step 3: Click IMBA-Q770. Step 4: A new screen with a list of available drivers appears (Figure 6-2). Figure 6-2: Available Drivers Step 5: Install all of the necessary drivers in this menu.

  • Page 128: Chipset Driver Installation

    IMBA-Q770 ATX Motherboard 6.3 Chipset Driver Installation To install the chipset driver, please do the following. Step 1: Access the driver list. (See Section 6.2) Step 2: Click “Chipset”. Step 3: Locate the setup file and double click on it.

  • Page 129: Figure 6-4: Chipset Driver License Agreement

    IMBA-Q770 ATX Motherboard Figure 6-4: Chipset Driver License Agreement Step 9: The Read Me file in Figure 6-5 appears. Step 10: Click Next to continue. Figure 6-5: Chipset Driver Read Me File Page 114...

  • Page 130: Figure 6-6: Chipset Driver Setup Operations

    IMBA-Q770 ATX Motherboard Step 11: Setup Operations are performed as shown in Figure 6-6. Step 12: Once the Setup Operations are complete, click Next to continue. Figure 6-6: Chipset Driver Setup Operations Step 13: The Finish screen in Figure 6-7 appears.

  • Page 131: Graphics Driver Installation

    IMBA-Q770 ATX Motherboard Figure 6-7: Chipset Driver Installation Finish Screen 6.4 Graphics Driver Installation To install the Graphics driver, please do the following. Step 1: Access the driver list. (See Section 6.2) Step 2: Click “Graphics” and select the folder which corresponds to the operating system.

  • Page 132: Figure 6-8: Graphics Driver Welcome Screen

    IMBA-Q770 ATX Motherboard Figure 6-8: Graphics Driver Welcome Screen Step 6: The License Agreement in Figure 6-9 appears. Step 7: Click Yes to accept the agreement and continue. Figure 6-9: Graphics Driver License Agreement Step 8: Setup Operations are performed as shown in Figure 6-10.

  • Page 133: Figure 6-10: Graphics Driver Setup Operations

    IMBA-Q770 ATX Motherboard Step 9: Once the Setup Operations are complete, click Next to continue. Figure 6-10: Graphics Driver Setup Operations Step 10: The Finish screen in Figure 6-11 appears. Step 11: Select “Yes, I want to restart this computer now” and click Finish.Step 0:...

  • Page 134: Lan Driver Installation

    IMBA-Q770 ATX Motherboard 6.5 LAN Driver Installation Step 1: Right-click the Computer button from the start menu and select Properties. (Figure 6-12). Figure 6-12: Windows Control Panel Step 2: The system control panel window in Figure 6-13 appears. Step 3: Click the Device Manager link (Figure 6-13).

  • Page 135: Figure 6-14: Device Manager List

    IMBA-Q770 ATX Motherboard Step 4: A list of system hardware devices appears (Figure 6-14). Step 5: Right-click the Ethernet Controller that has question marks next to it (this means Windows does not recognize the device). Step 6: Select Update Driver Software.

  • Page 136: Figure 6-15: Update Driver Software Window

    IMBA-Q770 ATX Motherboard Figure 6-15: Update Driver Software Window Step 8: Select “Browse my computer for driver software” and click N to continue. Step 9: Click Browse to select “X:\3-LAN” directory in the Locate File window, where “X:\” is the system CD drive. (Figure 6-16).

  • Page 137: Figure 6-17: Lan Driver Installation

    IMBA-Q770 ATX Motherboard Figure 6-17: LAN Driver Installation Step 12: The Finish screen in Figure 6-18 appears. Click Close to exit. Step 0: Figure 6-18: LAN Driver Installation Complete Page 122...

  • Page 138: Audio Driver Installation

    IMBA-Q770 ATX Motherboard 6.6 Audio Driver Installation To install the audio driver, please do the following. Step 1: Access the driver list. (See Section 6.2) Step 2: Click “Audio” and select the folder which corresponds to the operating system. Step 3: Double click the setup file.

  • Page 139: Figure 6-20: Audio Driver Software Configuration

    IMBA-Q770 ATX Motherboard Figure 6-20: Audio Driver Software Configuration Step 8: After the driver installation process is complete, a confirmation screen appears (Figure 6-21). Figure 6-21: Restart the Computer Page 124...

  • Page 140: Intel® Rapid Storage Technology Driver Installation

    IMBA-Q770 ATX Motherboard Step 9: The confirmation screen offers the option of restarting the computer now or later. For the settings to take effect, the computer must be restarted. Click F INISH restart the computer. Step 0: 6.7 Intel® Rapid Storage Technology Driver Installation To install the Intel®...

  • Page 141: Figure 6-23: Sata Raid Driver License Agreement

    IMBA-Q770 ATX Motherboard Figure 6-23: SATA RAID Driver License Agreement Step 9: The Read Me file in Figure 6-24 appears. Step 10: Click Next to continue. Figure 6-24: SATA RAID Driver Read Me File Step 11: Setup Operations are performed as shown in Figure 6-25.

  • Page 142: Figure 6-25: Sata Raid Driver Setup Operations

    IMBA-Q770 ATX Motherboard Figure 6-25: SATA RAID Driver Setup Operations Step 13: The Finish screen in Figure 6-26 appears. Step 14: Select “Yes, I want to restart this computer now” and click Finish.Step 0: Figure 6-26: SATA RAID Driver Installation Finish Screen...

  • Page 143: Usb 3.0 Driver Installation

    IMBA-Q770 ATX Motherboard 6.8 USB 3.0 Driver Installation WARNING: Do not run this driver’s installer (Setup.exe) from a USB storage device (ie. external USB hard drive or USB thumb drive). For proper installation, please copy driver files to a local hard drive folder and run from there.

  • Page 144: Figure 6-28: Usb 3.0 Driver License Agreement

    IMBA-Q770 ATX Motherboard Step 8: Click Yes to continue. Figure 6-28: USB 3.0 Driver License Agreement Step 9: The Read Me file in Figure 6-29 appears. Step 10: Click Next to continue. Figure 6-29: USB 3.0 Driver Read Me File Step 11: Setup Operations are performed as shown in Figure 6-30.

  • Page 145: Figure 6-30: Usb 3.0 Driver Setup Operations

    IMBA-Q770 ATX Motherboard Figure 6-30: USB 3.0 Driver Setup Operations Step 13: The Finish screen in Figure 6-31 appears. Step 14: Select “Yes, I want to restart this computer now” and click Finish.Step 0: Figure 6-31: USB 3.0 Driver Installation Finish Screen...

  • Page 146: Intel® Amt Driver Installation

    IMBA-Q770 ATX Motherboard 6.9 Intel® AMT Driver Installation The package of the Intel® AMT components includes Intel® Management Engine Interface (Intel® ME Interface) Intel® Dynamic Application Loader Intel® Identity Protection Technology (Intel® IPT) Serial Over LAN (SOL) Intel® Manageability Engine Firmware Recovery Agent Intel®...

  • Page 147: Figure 6-32: Intel® Me Driver Welcome Screen

    IMBA-Q770 ATX Motherboard Figure 6-32: Intel® ME Driver Welcome Screen Step 6: The license agreement in Figure 6-33 appears. Step 7: Read the License Agreement. Step 8: Click Yes to continue. Figure 6-33: Intel® ME Driver License Agreement Step 9: Setup Operations are performed as shown in Figure 6-34.

  • Page 148: Figure 6-34: Intel® Me Driver Setup Operations

    IMBA-Q770 ATX Motherboard Figure 6-34: Intel® ME Driver Setup Operations Step 11: The Finish screen in Figure 6-35 appears. Step 12: Select “Yes, I want to restart this computer now” and click Finish.Step 0: Figure 6-35: Intel® ME Driver Installation Finish Screen...

  • Page 149: Abios Options

    IMBA-Q770 ATX Motherboard Appendix BIOS Options Page 134...
  • Page 150 IMBA-Q770 ATX Motherboard Below is a list of BIOS configuration options in the BIOS chapter. 　 System Date [xx/xx/xx] ......................74 　 System Time [xx:xx:xx] .......................74 　 ACPI Sleep State [S1 only (CPU Stop Clock)]..............76 　 Wake System with Fixed Time [Disabled] .................77 　...
  • Page 151 IMBA-Q770 ATX Motherboard 　 Terminal Type [ANSI]......................96 　 Bits per second [115200].....................97 　 Data Bits [8] ..........................97 　 Parity [None].........................97 　 Stop Bits [1] ..........................98 　 Auto Recovery Function [Disabled]...................99 　 Restore on AC Power Loss [Last State] ................. 100 　...

  • Page 152: B One Key Recovery

    IMBA-Q770 ATX Motherboard Appendix One Key Recovery Page 137...

  • Page 153: One Key Recovery Introduction

    IMBA-Q770 ATX Motherboard B.1 One Key Recovery Introduction The IEI one key recovery is an easy-to-use front end for the Norton Ghost system backup and recovery tool. This tool provides quick and easy shortcuts for creating a backup and reverting to that backup or reverting to the factory default settings.

  • Page 154: System Requirement

    IMBA-Q770 ATX Motherboard After completing the five initial setup procedures as described above, users can access the recovery tool by pressing <F3> while booting up the system. The detailed information of each function is described in Section B.5. NOTE: The initial setup procedures for Linux system are described in Section B.3.

  • Page 155: Supported Operating System

    IMBA-Q770 ATX Motherboard partitions. Please take the following table as a reference when calculating the size of the partition. OS Image after Ghost Compression Ratio Windows® 7 7 GB 5 GB Windows® XPE 776 MB 560 MB Windows® CE 6.0...

  • Page 156: Setup Procedure For Windows

    IMBA-Q770 ATX Motherboard Linux Fedora Core 12 (Constantine) Fedora Core 11 (Leonidas) Fedora Core 10 (Cambridge) Fedora Core 8 (Werewolf) Fedora Core 7 (Moonshine) RedHat RHEL-5.4 RedHat 9 (Ghirke) Ubuntu 8.10 (Intrepid) Ubuntu 7.10 (Gutsy) Ubuntu 6.10 (Edgy) Debian 5.0 (Lenny) Debian 4.0 (Etch)

  • Page 157: Hardware And Bios Setup

    IMBA-Q770 ATX Motherboard The detailed descriptions are described in the following sections. NOTE: The setup procedures described below are for Microsoft Windows operating system users. For Linux, most of the setup procedures are the same except for several steps described in Section B.3.

  • Page 158: Figure B-2: Launching The Recovery Tool

    IMBA-Q770 ATX Motherboard Step 2: Boot the system from recovery CD. When prompted, press any key to boot from the recovery CD. It will take a while to launch the recovery tool. Please be patient! Figure B-2: Launching the Recovery Tool Step 3: The recovery tool setup menu is shown as below.

  • Page 159: Figure B-4: Command Prompt

    IMBA-Q770 ATX Motherboard Figure B-4: Command Prompt Step 5: The command prompt window appears. Type the following commands (marked in red) to create two partitions. One is for the OS installation; the other is for saving recovery files and images which will be an invisible partition.

  • Page 160: Figure B-5: Partition Creation Commands

    IMBA-Q770 ATX Motherboard Figure B-5: Partition Creation Commands Page 145...

  • Page 161: Install Operating System, Drivers And Applications

    IMBA-Q770 ATX Motherboard NOTE: Use the following commands to check if the partitions were created successfully. Step 6: Press any key to exit the recovery tool and automatically reboot the system. Please continue to the following procedure: Build the Recovery Partition.S t e p 0 :...

  • Page 162: Build-Up Recovery Partition

    IMBA-Q770 ATX Motherboard B.2.4 Build-up Recovery Partition Step 1: Put the recover CD in the optical drive. Step 2: Start the system. Step 3: Boot the system from the recovery CD. When prompted, press any key to boot from the recovery CD. It will take a while to launch the recovery tool. Please...

  • Page 163: Figure B-8: Building The Recovery Partition

    IMBA-Q770 ATX Motherboard Step 5: The Symantec Ghost window appears and starts configuring the system to build a recovery partition. In this process the partition created for recovery files in Section B .2.2 is hidden and the recovery tool is saved in this partition.

  • Page 164: Create Factory Default Image

    IMBA-Q770 ATX Motherboard B.2.5 Create Factory Default Image NOTE: Before creating the factory default image, please configure the system to a factory default environment, including driver and application installations. To create a factory default image, please follow the steps below.

  • Page 165: Figure B-12: About Symantec Ghost Window

    IMBA-Q770 ATX Motherboard Figure B-12: About Symantec Ghost Window Step 4: Use mouse to navigate to the option shown below ( F igure B-13). Figure B-13: Symantec Ghost Path Step 5: Select the local source drive (Drive 1) as shown in F igure B-14.

  • Page 166: Figure B-14: Select A Local Source Drive

    IMBA-Q770 ATX Motherboard Figure B-14: Select a Local Source Drive Step 6: Select a source partition (Part 1) from basic drive as shown in F igure B-15. Then click OK. Figure B-15: Select a Source Partition from Basic Drive Step 7: Select 1.2: [Recovery] NTFS drive and enter a file name called...

  • Page 167: Figure B-16: File Name To Copy Image To

    IMBA-Q770 ATX Motherboard Figure B-16: File Name to Copy Image to Step 8: When the Compress Image screen in F igure B-17 prompts, click High to make the image file smaller. Figure B-17: Compress Image Page 152...

  • Page 168: Figure B-18: Image Creation Confirmation

    IMBA-Q770 ATX Motherboard Step 9: The Proceed with partition image creation window appears, click Yes to continue. Figure B-18: Image Creation Confirmation Step 10: The Symantec Ghost starts to create the factory default image ( F igure B-19). Figure B-19: Image Creation Complete...

  • Page 169: Auto Recovery Setup Procedure

    IMBA-Q770 ATX Motherboard Step 12: The recovery tool main menu window is shown as below. Press any key to reboot the system. S t e p 0 : Figure B-21: Press Any Key to Continue B.3 Auto Recovery Setup Procedure...

  • Page 170: Figure B-22: Auto Recovery Utility

    IMBA-Q770 ATX Motherboard Step 1: Follow the steps described in Section B.2.1 ~ Section B.2.3 to setup BIOS, create partitions and install operating system. Step 2: Install the auto recovery utility into the system by double clicking the Utility/AUTORECOVERY-SETUP.exe in the One Key Recovery CD. This utility MUST be installed in the system, otherwise, the system will automatically restore from the factory default image every ten (10) minutes.

  • Page 171: Figure B-24: Launching The Recovery Tool

    IMBA-Q770 ATX Motherboard Step 4: Reboot the system from the recovery CD. When prompted, press any key to boot from the recovery CD. It will take a while to launch the recovery tool. Please be patient! Figure B-24: Launching the Recovery Tool Step 5: When the recovery tool setup menu appears, press <4>...

  • Page 172: Figure B-26: Building The Auto Recovery Partition

    IMBA-Q770 ATX Motherboard Figure B-26: Building the Auto Recovery Partition Step 7: After completing the system configuration, the following message prompts to confirm whether to create a factory default image. Type Y to have the system create a factory default image automatically. Type N within 6 seconds to skip this process (The default option is YES).

  • Page 173: Figure B-28: Image Creation Complete

    IMBA-Q770 ATX Motherboard Step 8: The Symantec Ghost starts to create the factory default image (Figure B-28). Figure B-28: Image Creation Complete Step 9: After completing the system configuration, press any key in the following window to restart the system.

  • Page 174: Setup Procedure For Linux

    IMBA-Q770 ATX Motherboard BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit iEi Feature ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Auto Recovery Function [Enabled] Recover from PXE [Disabled] Select Screen ↑ ↓ Select Item Enter Go to SubScreen General Help Save and Exit Exit v02.61 ©Copyright 1985-2006, American Megatrends, Inc.

  • Page 175: Figure B-31: Partitions For Linux

    IMBA-Q770 ATX Motherboard Partition 1: / Partition 2: SWAP NOTE: Please reserve enough space for partition 3 for saving recovery images. Figure B-31: Partitions for Linux Step 3: Create a recovery partition. Insert the recovery CD into the optical disk drive.

  • Page 176: Figure B-32: System Configuration For Linux

    IMBA-Q770 ATX Motherboard recovery partition. After completing the system configuration, press any key to reboot the system. Eject the recovery CD. Figure B-32: System Configuration for Linux Step 5: Access the recovery tool main menu by modifying the “menu.lst”. To first access the recovery tool main menu, the menu.lst must be modified.

  • Page 177: Recovery Tool Functions

    IMBA-Q770 ATX Motherboard Step 7: The recovery tool menu appears. ( F igure B-34) Figure B-34: Recovery Tool Menu Step 8: Create a factory default image. Follow Step 2 Step 12 described in Section B .2.5 to create a factory default image.

  • Page 178: Figure B-35: Recovery Tool Main Menu

    IMBA-Q770 ATX Motherboard Figure B-35: Recovery Tool Main Menu The recovery tool has several functions including: 1. Factory Restore: Restore the factory default image (iei.GHO) created in Section B .2.5. 2. Backup system: Create a system backup image (iei_user.GHO) which will be saved in the hidden partition.

  • Page 179: Factory Restore

    IMBA-Q770 ATX Motherboard B.5.1 Factory Restore To restore the factory default image, please follow the steps below. Step 1: Type <1> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears and starts to restore the factory default. A factory default image called iei.GHO is created in the hidden Recovery partition.

  • Page 180: Backup System

    IMBA-Q770 ATX Motherboard B.5.2 Backup System To backup the system, please follow the steps below. Step 1: Type <2> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears and starts to backup the system. A backup image called iei_user.GHO is created in the hidden Recovery partition.

  • Page 181: Restore Your Last Backup

    IMBA-Q770 ATX Motherboard B.5.3 Restore Your Last Backup To restore the last system backup, please follow the steps below. Step 1: Type <3> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears and starts to restore the last backup image (iei_user.GHO).

  • Page 182: Manual

    IMBA-Q770 ATX Motherboard B.5.4 Manual To restore the last system backup, please follow the steps below. Step 1: Type <4> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears. Use the Ghost program to backup or recover the system manually.

  • Page 183: Restore Systems From A Linux Server Through Lan

    IMBA-Q770 ATX Motherboard B.6 Restore Systems from a Linux Server through LAN The One Key Recovery allows a client system to automatically restore to a factory default image saved in a Linux system (the server) through LAN connectivity after encountering a Blue Screen of Death (BSoD) or a hang for around 10 minutes.

  • Page 184: Configure Dhcp Server Settings

    IMBA-Q770 ATX Motherboard B.6.1 Configure DHCP Server Settings Step 1: Install the DHCP #yum install dhcp (CentOS, commands marked in red) #apt-get install dhcp3-server (Debian, commands marked in blue) Step 2: Confirm the operating system default settings: dhcpd.conf. CentOS Use the following command to show the DHCP server sample location: #vi /etc/dhcpd.conf...

  • Page 185: Configure Tftp Settings

    IMBA-Q770 ATX Motherboard filename “pxelinux.0”; B.6.2 Configure TFTP Settings Step 1: Install the tftp, httpd and syslinux. #yum install tftp-server httpd syslinux (CentOS) #apt-get install tftpd-hpa xinetd syslinux (Debian) Step 2: Enable the TFTP server by editing the “/etc/xinetd.d/tftp” file and make it use the remap file.

  • Page 186: Configure One Key Recovery Server Settings

    IMBA-Q770 ATX Motherboard Debian Replace the TFTP settings from “inetd” to “xinetd” and annotate the “inetd” by adding “#”. #vi /etc/inetd.conf Modify: #tftp dgram udp wait root /usr/sbin..(as shown below) #vi /etc/xinetd.d/tftp B.6.3 Configure One Key Recovery Server Settings Step 1: Copy the Utility/RECOVERYR10.TAR.BZ2 package from the One Key...

  • Page 187: Start The Dhcp, Tftp And Http

    IMBA-Q770 ATX Motherboard B.6.4 Start the DHCP, TFTP and HTTP Start the DHCP, TFTP and HTTP. For example: CentOS #service xinetd restart #service httpd restart #service dhcpd restart Debian #/etc/init.d/xinetd reload #/etc/init.d/xinetd restart #/etc/init.d/dhcp3-server restart B.6.5 Create Shared Directory Step 1: Install the samba.

  • Page 188: Setup A Client System For Auto Recovery

    IMBA-Q770 ATX Motherboard Modify: [image] comment = One Key Recovery path = /share/image browseable = yes writable = yes public = yes create mask = 0644 directory mask = 0755 Step 4: Edit “/etc/samba/smb.conf” for your environment. For example: Step 5:...

  • Page 189: Figure B-43: Disable Automatically Restart

    IMBA-Q770 ATX Motherboard Figure B-43: Disable Automatically Restart Step 2: Configure the following BIOS options of the client system. Advanced → iEi Feature → Auto Recovery Function → Enabled Advanced → iEi Feature → Recover from PXE → Enabled Boot → Launch PXE OpROM → Enabled...
  • Page 190 IMBA-Q770 ATX Motherboard MUST be installed in the system, otherwise, the system will automatically restore from the factory default image every ten (10) minutes. Step 6: Restart the client system from LAN. If the system encounters a Blue Screen of Death (BSoD) or a hang for around 10 minutes, it will automatically restore from the factory default image.

  • Page 191: Other Information

    IMBA-Q770 ATX Motherboard NOTE: A firewall or a SELinux is not in use in the whole setup process described above. If there is a firewall or a SELinux protecting the system, modify the configuration information to accommodate them. B.7 Other Information B.7.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller...
  • Page 192 IMBA-Q770 ATX Motherboard Step 5: When the following window appears, press <S> to select “Specify Additional Device”. Page 177...

  • Page 193: System Memory Requirement

    IMBA-Q770 ATX Motherboard Step 6: In the following window, select a SATA controller mode used in the system. Then press <Enter>. The user can now start using the SATA HDD. Step 7: After pressing <Enter>, the system will get into the recovery tool setup menu.

  • Page 194: C Terminology

    IMBA-Q770 ATX Motherboard Appendix Terminology Page 179...
  • Page 195 IMBA-Q770 ATX Motherboard AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
  • Page 196 IMBA-Q770 ATX Motherboard DIMM Dual Inline Memory Modules are a type of RAM that offer a 64-bit data bus and have separate electrical contacts on each side of the module. The digital inputs and digital outputs are general control signals that control the on/off circuit of external devices or TTL devices.
  • Page 197 IMBA-Q770 ATX Motherboard LVDS Low-voltage differential signaling (LVDS) is a dual-wire, high-speed differential electrical signaling system commonly used to connect LCD displays to a computer. POST The Power-on Self Test (POST) is the pre-boot actions the system performs when the system is turned-on.

  • Page 198: D Digital I/O Interface

    IMBA-Q770 ATX Motherboard Appendix Digital I/O Interface Page 183...

  • Page 199: Introduction

    IMBA-Q770 ATX Motherboard D.1 Introduction The DIO connector on the IMBA-Q770 is interfaced to GPIO ports on the Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.

  • Page 200: Assembly Language Samples

    IMBA-Q770 ATX Motherboard D.3 Assembly Language Samples D.3.1 Enable the DIO Input Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O input functions is listed below. Sets the digital port as input...

  • Page 201: E Watchdog Timer

    IMBA-Q770 ATX Motherboard Appendix Watchdog Timer Page 186...
  • Page 202 IMBA-Q770 ATX Motherboard NOTE: The following discussion applies to DOS environment. Contact IEI support or visit the IEI website for specific drivers for other operating systems. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash. This condition may have occurred by external EMIs or a software bug.
  • Page 203 IMBA-Q770 ATX Motherboard NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. EXAMPLE PROGRAM: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...

  • Page 204: F Intel® Matrix Storage Manager

    IMBA-Q770 ATX Motherboard Appendix Intel® Matrix Storage Manager Page 189...

  • Page 205: Introduction

    IMBA-Q770 ATX Motherboard F.1 Introduction The IMBA-Q770 can provide data protection for serial ATA (SATA) disks via the Intel® Matrix Storage Manager using one of three fault-tolerant RAID levels: RAID 1, 5 or 10. When using two hard drives, matrix RAID allows RAID 0 and RAID 1 functions to be combined, where critical files can be stored on RAID 1, and RAID 0 can be used for non-critical items such as software.

  • Page 206: Features And Benefits

    IMBA-Q770 ATX Motherboard CAUTION! Do not accidentally disconnect the SATA drive cables. Carefully route the cables within the chassis to avoid system down time. F.2 Features and Benefits Supports RAID levels 0, 1, 5 and 10 Supports connectivity to two or more disk drives...

  • Page 207: Installing The Operating System To The Raid Array

    IMBA-Q770 ATX Motherboard appear during the POST. Refer to the applicable BIOS configuration section in this user manual. Step 4: Save and Exit BIOS. After the SATA support option is enabled, save and exit the BIOS. Step 5: Reboot the system. Reboot the system after saving and exiting the BIOS.

  • Page 208: G Hazardous Materials Disclosure

    IMBA-Q770 ATX Motherboard Appendix Hazardous Materials Disclosure Page 193...

  • Page 209: Hazardous Materials Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    IMBA-Q770 ATX Motherboard G.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 210 IMBA-Q770 ATX Motherboard Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Biphenyls Diphenyl (Pb) (Hg) (Cd) Chromium (CR(VI)) (PBB) Ethers (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 211 IMBA-Q770 ATX Motherboard 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...
