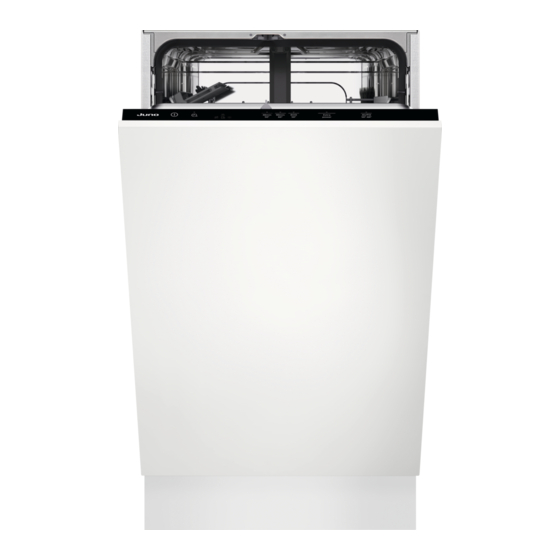

JUNO JGVN456E2 User Manual
Hide thumbs Also See for JGVN456E2:

Advertisement

Available languages

Available languages

Quick Links

Dishwasher
EN
Afwasautomaat
NL
User Manual
Gebruiksaanwijzing
JGVN456E2
2
27

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JGVN456E2 and is the answer not in the manual?

Questions and answers

Summary of Contents for JUNO JGVN456E2

  • Page 1 User Manual Dishwasher Gebruiksaanwijzing Afwasautomaat JGVN456E2...
  • Page 2: Table Of Contents

    VISIT OUR WEBSITE TO: Get usage advice, brochures, trouble shooter, service and repair information: www.juno.de/support CONTENTS 1. SAFETY INFORMATION...................2 2. SAFETY INSTRUCTIONS.................4 3. INSTALLATION....................5 4. PRODUCT DESCRIPTION................6 5. CONTROL PANEL.................... 7 6. PROGRAMME SELECTION................8 7. BASIC SETTINGS ..................10 8.
  • Page 3 Children of less than 3 years of age should be kept away • from the appliance unless continuously supervised. Children should be supervised to ensure that they do not • play with the appliance. Keep detergents away from children. • Keep children and pets away from the appliance when the •...
  • Page 4: Safety Instructions

    The appliance is to be connected to the water mains using • the new supplied hose-sets. Old hose sets must not be reused. 2. SAFETY INSTRUCTIONS 2.1 Installation Make sure that there is access to the mains plug after the installation. •...
  • Page 5: Installation

    • Dishwasher detergents are dangerous. sensors, software and firmware including Follow the safety instructions on the reset software. Please note that some of detergent packaging. these spare parts are only available to • Do not drink and play with the water in the professional repairers, and that not all appliance.
  • Page 6: Product Description

    3.2 Safety caps If the furniture panel is not installed, open the appliance door carefully to avoid the risk of injury. After installation, make sure the plastic covers are locked in position. Damage or removal of the plastic covers on the sides of the door may impact the functionality of the appliance and may cause an injury.
  • Page 7: Control Panel

    Rinse aid dispenser The graphic is a general overview. Detergent dispenser For more details, refer to other chapters Cutlery basket or documents provided with the Lower basket appliance. Upper basket 5. CONTROL PANEL On/Off button/Reset button Extra power button Delay start button AUTO programme button Indicators Programme buttons...
  • Page 8: Programme Selection

    6. PROGRAMME SELECTION 6.1 Programmes consumption for crockery and cutlery with normal soil. This is the standard programme for test institutes. 6.2 AUTO This programme automatically adjusts the dishwashing cycle to the type of load. The appliance senses the degree of soil and the amount of dishes in the baskets.
  • Page 9 Programme Dishwasher Degree of Programme phases Options load soil Crockery, cut‐ Normal, lightly • Prewash • Extra power lery, pots, pans dried-on • Dishwashing 50 °C • Intermediate rinse • Final rinse 55 °C • Drying • AirDry AUTO Crockery, cut‐ •...
  • Page 10: Basic Settings

    7. BASIC SETTINGS You can configure the appliance by changing basic settings according to your needs. Num‐ Settings Values Description 1) Water hardness From level 1 to Adjust the level of the water softener according to level 10 (default: the water hardness in your area. Rinse aid level From level 0 to Adjust the level of the rinse aid according to the...
  • Page 11 Use OK to enter the selected setting and to 4. Press OK to confirm the setting. confirm changing its value. • The new setting is saved. • The appliance returns to the setting How to change a setting selection. 5. Press and hold simultaneously 30min Make sure the appliance is in setting mode.
  • Page 12 Regardless of the type of detergent used, additional 4 litres and the total energy set the proper water hardness level to consumption of a programme by additional 2 keep the salt refill indicator active. Wh. The rinsing of the softener ends with a complete drain.
  • Page 13: Before First Use

    CAUTION! Do not try to close the appliance door within 2 minutes after automatic opening. This can cause damage to the appliance. CAUTION! If children have access to the appliance, we advise to deactivate AirDry. The automatic opening of the door may pose a danger.
  • Page 14: Daily Use

    CAUTION! The compartment (C) is for rinse aid only. Do not fill it with detergent. CAUTION! Only use rinse aid designed specifically for dishwashers. 6. Turn the cap clockwise to close the salt container. 1. Press the release element (A) to open the lid (B).
  • Page 15 The light related to the button is on. CAUTION! Only use detergent designed specifically Extra power is not a permanent for dishwashers. option and must be activated every time before you start a programme. 1. Press the release button (B) to open the lid (C).
  • Page 16: Hints And Tips

    9.8 How to cancel a running 9.10 The Auto Off function programme This function saves energy by switching the appliance off when it is not operating. Press and hold for about 3 seconds. The function comes into operation The appliance returns to the programme automatically: selection.
  • Page 17 10.2 Using salt, rinse aid and 10.4 Before starting a programme detergent Before you start the selected programme, make sure that: • Only use salt, rinse aid and detergent designed for dishwasher. Other products • The filters are clean and correctly can cause damage to the appliance.
  • Page 18: Care And Cleaning

    11. CARE AND CLEANING • Do not use abrasive products, abrasive WARNING! cleaning pads, sharp tools, strong chemicals, scourer or solvents. Before any maintenance other than • Wipe clean the door, including the rubber running the programme Machine Care, gasket, once a week. deactivate the appliance and disconnect •...
  • Page 19 5. Make sure that there are no residues of food or soil in or around the edge of the 1. Turn the filter (B) counterclockwise and sump. remove it. 6. Put back in place the flat filter (A). Make sure that it is correctly positioned under the 2 guides.
  • Page 20 the holes. Clogged holes can cause CAUTION! unsatisfactory washing results. The upper spray arms are placed under the An incorrect position of the filters can upper basket. The spray arms (B) are cause bad washing results and damage installed in the duct (A) with the mounting to the appliance.
  • Page 21: Troubleshooting

    fix it in the duct by turning it counterclockwise. Make sure that the mounting element locks into place. 12. TROUBLESHOOTING Refer to the below table for information on WARNING! possible problems. With some problems, the lights related to the Improper repair of the appliance may programme buttons flash intermittently to pose a danger to the safety of the user.
  • Page 22 Problem and alarm code Possible cause and solution The anti-flood device is on. • Close the water tap. • The lights related to the pro‐ • Make sure that the appliance is correctly installed. gramme buttons flash 3 times • Make sure the baskets are loaded as instructed in the user manual.
  • Page 23 Problem and alarm code Possible cause and solution The programme lasts too long. • If the delay start option is set, cancel the delay setting or wait for the end of the countdown. • Activating Extra power increases the programme duration. Small leak from the appliance •...
  • Page 24 Problem Possible cause and solution Poor drying results. • Tableware was left for too long inside the closed appliance. Acti‐ vate the function AirDry to set the automatic opening of the door and to improve the drying performance. • There is no rinse aid or the dosage of rinse aid is not sufficient. Fill the rinse aid dispenser or set the dosage of rinse aid to a higher level.
  • Page 25: Technical Information

    Problem Possible cause and solution Limescale deposits on the table‐ • The level of salt is low, check the refill indicator. ware, on the tub and on the inside • The cap of the salt container is loose. "The water softener" of the door.
  • Page 26: Environmental Concerns

    For more detailed information about the energy label, visit www.theenergylabel.eu. 14. ENVIRONMENTAL CONCERNS appliances marked with the symbol with Recycle materials with the symbol . Put the the household waste. Return the product to packaging in relevant containers to recycle it. your local recycling facility or contact your Help protect the environment and human municipal office.
  • Page 27: Veiligheidsinformatie

    GA NAAR ONZE WEBSITE VOOR: Advies over gebruik, brochures, het oplossen van problemen, service- en reparatie-informatie: www.juno.de/support INHOUDSOPGAVE 1. VEILIGHEIDSINFORMATIE................27 2. VEILIGHEIDSVOORSCHRIFTEN..............29 3. INSTALLEREN....................31 4. PRODUCTBESCHRIJVING................32 5. BEDIENINGSPANEEL..................32 6. PROGRAMMAKEUZE..................33 7. BASISINSTELLINGEN ................... 35 8. VOORDAT U HET APPARAAT VOOR DE EERSTE KEER GEBRUIKT..39 9.
  • Page 28 Kinderen tussen de 3 en 8 jaar oud en personen met zware • en complexe beperkingen dienen altijd uit de buurt van het apparaat te worden gehouden, tenzij ze voortdurend onder toezicht staan. Kinderen jonger dan 3 jaar dienen, tenzij zij voortdurend •...
  • Page 29: Veiligheidsvoorschriften

    punt naar beneden of horizontaal in de mand geplaatst worden. Schakel het apparaat uit en trek de stekker uit het • stopcontact voordat je onderhoudshandelingen verricht. Gebruik geen waterstralen onder druk en/of stoom om het • apparaat te reinigen. Als het apparaat is voorzien van ventilatieopeningen in de •...
  • Page 30 • Zorg ervoor dat er geen zichtbare apparaat. Gebruik alleen originele waterlekken zijn tijdens en na het eerste reserveonderdelen. gebruik van het apparaat. • Houd er rekening mee dat zelfreparatie of • Als de watertoevoerslang beschadigd is, niet-professionele reparatie gevolgen kan sluit dan onmiddellijk de waterkraan en hebben voor de veiligheid en de garantie haal de stekker uit het stopcontact.
  • Page 31: Installeren

    3. INSTALLEREN Beschadiging of verwijdering van de plastic WAARSCHUWING! afdekkingen aan de zijkanten van de deur kan de werking van het apparaat nadelig Raadpleeg de hoofdstukken “Veiligheid beïnvloeden en letsel veroorzaken. Als het voorafgaand aan de installatie”. plastic deksel beschadigd is, neem dan contact op met de erkende servicedienst om Zie de installatie-instructies die bij het het te vervangen door het nieuwe.
  • Page 32: Productbeschrijving

    4. PRODUCTBESCHRIJVING Bovenste sproeiarmen Bestekmand Onderste sproeiarm Onderste korf Filters Bovenste korf Typeplaatje De afbeelding is een algemeen Zoutreservoir overzicht. Raadpleeg voor meer details Luchtventilatie andere hoofdstukken en/of documenten Glansmiddeldoseerbakje die bij het apparaat zijn meegeleverd. Afwasmiddeldoseerbakje 5. BEDIENINGSPANEEL Aan-/uittoets/Resetknop Extra power toets Toets uitgestelde start AUTO programmatoets...
  • Page 33: Programmakeuze

    5.1 Indicatielampjes Indicatie‐ Beschrijving lampje Controlelampje glansmiddelinstellingen. Het is aan wanneer je de vrijgegeven hoeveelheid "Basisinstellingen" glansspoelmiddel instelt. Zie Indicatielampje zout. Dit is aan als het zoutreservoir bijgevuld dient te worden. Raadpleeg “Voor eerste ingebruikname” Indicatielampje Machine Care. Dit is aan als het apparaat interne reiniging nodig heeft met “Onderhoud en reiniging”...
  • Page 34 6.4 Programmaoverzicht Programma Lading vaat‐ Mate van be‐ Programmafasen Opties wasser vuiling 30min Serviesgoed, Vers • Afwassen bij 50 °C • Extra power bestek • Tussentijdse spoeling • Laatste spoeling 45 °C • AirDry Pre Rinse Alles Alles • Voorspoelen niet van toepas‐...
  • Page 35: Basisinstellingen

    Water (l) Energie (kWh) Duur (min) Programma 1)2) Machine Care 0.440 De druk en temperatuur van het water, de variaties in stroomtoevoer, de opties, de hoeveelheid vaat en mate van vervuiling kunnen de verbruikswaarden veranderen. De waarden voor andere programma's dan ECO zijn slechts indicatief. Voeg in je aanvraag de productnummercode Informatie voor testinstituten (PNC) van het typeplaatje toe.
  • Page 36 7.1 Instellingsmodus • Voor de instellingen met twee waarden (aan en uit) is het licht ofwel aan (= de instelling staat aan) of uit (= Instellingenmodus ingaan de instelling staat uit). • Voor de instellingen met meerdere U kunt de instellingenmodus ingaan voordat waarden (niveaus) knippert het licht.
  • Page 37 Waterhardheid Duitse gra‐ Franse gra‐ mmol/l mg/l (ppm) Clarke Niveau water‐ den (°dH) den (°fH) graden ontharder 47 - 50 84 - 90 8.4 - 9.0 835 - 904 58 - 63 43 - 46 76 - 83 7.6 - 8.3 755 - 834 53 - 57 37 - 42...
  • Page 38 7.5 AirDry Vervolgens kan het spoelen van de waterontharder wat 5 minuten duurt, AirDry verbetert de droogresultaten. Tijdens beginnen in dezelfde cyclus of aan het begin de droogfase opent de deur van het apparaat van het volgende programma. Deze activiteit automatisch en blijft deze op een kier staan.
  • Page 39: Voordat U Het Apparaat Voor De Eerste Keer Gebruikt

    8. VOORDAT U HET APPARAAT VOOR DE EERSTE KEER GEBRUIKT 1. Controleer of het ingestelde stand van 4. Schud de trechter voorzichtig bij het de waterontharder juist is voor de handvat om de laatste korrels erin te waterhardheid in uw omgeving. Indien krijgen.
  • Page 40: Dagelijks Gebruik

    3. Verwijder gemorst glansspoelmiddel met LET OP! een absorberend doekje om te voorkomen dat er te veel schuim ontstaat. Gebruik alleen glansspoelmiddel dat 4. Sluit het deksel. Zorg ervoor dat het speciaal is ontworpen voor vaatwassers. deksel op zijn plaats vergrendelt. 1.
  • Page 41 9.4 Activeren Extra power Het apparaat keert terug naar de programmakeuze. 1. Selecteer een programma. 2. Druk op Extra power. Het lampje van de knop gaat aan. Als u de uitgestelde start annuleert, moet u het programma opnieuw instellen. Extra power is geen permanente 9.8 Het annuleren van een actief optie en moet elke keer voordat u een programma...
  • Page 42: Aanwijzingen En Tips

    10. AANWIJZINGEN EN TIPS 10.1 Algemeen 10.2 Gebruik van zout, glansmiddel en vaatwasmiddel Volg de onderstaande tips om te zorgen voor optimale schoonmaak- en droogresultaten en • Gebruik enkel zout, glansmiddel en ook het milieu te helpen beschermen. vaatwasmiddel voor vaatwassers. Overige producten kunnen het apparaat •...
  • Page 43: Onderhoud En Reiniging

    3. Start het 30min-programma. Voeg geen aluminium, delicaat geëmailleerd porselein afwasmiddel toe en plaats vaat in de en onbeschermd koolstofstaal. Hierdoor korven. kunnen ze barsten, kromtrekken, 4. Als het programma is voltooid, wijzigt u verkleuren, kuiltjes krijgen of roesten. de waterontharder in de waterhardheid •...
  • Page 44 Hoe ga ik te werk om het LET OP! programma Machine Care te starten Als u de voorwerpen niet kunt verwijderen, neemt u contact op met een Reinig voordat u het programma erkende servicedienst. Machine Care start, de filters en sproeiarmen.
  • Page 45 8. Plaats de filter (B) terug in de platte filter (A). Rechtsom draaien tot het vastzit. 2. Verwijder de filter (C) uit de filter (B). 3. Verwijder de platte filter (A). LET OP! Een onjuiste plaatsing van de filters kan leiden tot slechte wasresultaten en het 4.
  • Page 46 3. Duw de sproeiarm naar beneden om 3. Reinig de sproeiarm onder stromend deze weer terug te plaatsen. water. Gebruik een smal en puntig gereedschap, bijv. een tandenstoker, om de vuildeeltjes uit de gaten te verwijderen. 11.7 De bovenste sproeiarmen schoonmaken We raden u aan om de bovenste sproeiarmen regelmatig schoon te maken om...
  • Page 47: Probleemoplossing

    12. PROBLEEMOPLOSSING contact op te nemen met een erkend WAARSCHUWING! servicecentrum. Zie de onderstaande tabel voor informatie Onjuiste reparatie van het apparaat kan over mogelijke problemen. een gevaar voor de veiligheid van de gebruiker vormen. Reparaties moeten Bij sommige problemen knipperen de lampjes worden uitgevoerd door gekwalificeerd die in verband staan met de personeel.
  • Page 48 Probleem en alarmcode Mogelijke oorzaak en oplossing Storing van de waterniveaudetec‐ • Controleer of de filters schoon zijn. tiesensor. • Schakel het apparaat uit en aan. • De lampjes die in verband staan met de programmatoet‐ sen knipperen af en toe 4 keer.
  • Page 49 Probleem en alarmcode Mogelijke oorzaak en oplossing Het programma duurt te lang. • Als de optie uitgestelde start is ingesteld, annuleert u de uitgestelde instelling of wacht u tot het aftellen voorbij is. • Het activeren van Extra power verlengt de duur van het programma. Kleine lekkage van de deur van •...
  • Page 50 Probleem Mogelijke oorzaak en oplossing Slechte droogresultaten. • Serviesgoed heeft te lang in het gesloten apparaat gestaan. Acti‐ veer de functie AirDry om het automatisch openen van de deur in te stellen en de droogprestatie te verbeteren. • Het glansspoelmiddel is op of de dosering van het glansspoelmid‐ del is niet voldoende.
  • Page 51: Technische Informatie

    Probleem Mogelijke oorzaak en oplossing Kalkresten op het serviesgoed, op • Het zoutniveau is laag, controleer de bijvulaanduiding. de kuip en aan de binnenkant van • De dop van het zoutreservoir zit los. De wateronthar‐ de deur. • Het kraanwater heeft een hoge hardheid. Zie der instellen •...
  • Page 52: Milieubescherming

    typeplaatje van het apparaat. Zie het Kijk voor meer informatie over het hoofdstuk ‘Productbeschrijving’. energielabel op www.theenergylabel.eu 14. MILIEUBESCHERMING Gooi apparaten gemarkeerd met het symbool Recycleer de materialen met het symbool niet weg met het huishoudelijk afval. Gooi de verpakking in een geschikte Breng het product naar het milieustation bij u afvalcontainer om het te recycleren.
  • Page 56 156806943-A-372023...
