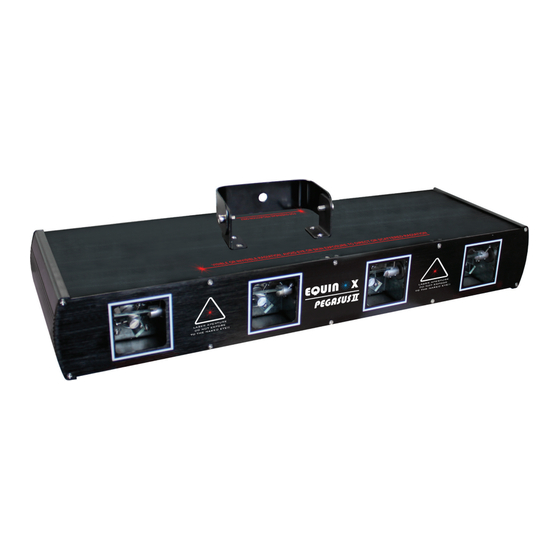

- Page 1 Order code: EQLA01 User manual...
-
Page 2: Safety Instructions
Equinox Pegasus 2 Laser Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual... -
Page 3: Operating Determinations
Equinox Pegasus 2 Laser Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 Equinox Pegasus 2 Laser Technical Specifications You should find inside the Laser carton the following items: 1, Pegasus 2 Laser 2, Power cable 3, Instruction manual Technical Specifications: • DMX Channels: 7 • Sound active, auto and DMX modes • Output power: 1 x 60mW Green 532nM, 1 x 200mW Violet 405nM, 2 x 100mW Red 650nM •...
- Page 5 Equinox Pegasus 2 Laser Operations Operation modes: Sound active mode: To set the unit into sound active, set dip switch 10 to the “ON” position and all others to “OFF”. The unit will now react to the beat of the music. To set the sound sensitivity level, use sensitivity control on the rear of the unit.
- Page 6 Equinox Pegasus 2 Laser DMX control mode DMX Control Mode Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently.
- Page 7 Equinox Pegasus 2 Laser DMX set up DMX-512: • DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...
- Page 8 Equinox Pegasus 2 Laser DMX Set Up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 9 Equinox Pegasus 2 Laser Dip Switch Reference Chart DMX Dip Switch Quick Reference Chart Dip Switch Position Dip Switch position DMX Address...
- Page 10 Equinox Pegasus 2 Laser Safety Class 3B Laser Lighting Effect User Safety Guide ProLight Concepts Limited Important Warnings Class 3B Lasers have the potential to harm eyesight if viewed directly in the face, and in many instances this may be the case, even if viewed over longer distances of several tens of metres.
- Page 11 Equinox Pegasus 2 Laser Safety What is a laser? A laser is device that produces a special kind of light that is different from normal light sources. Laser light sources differ from normal light sources in that they can produce very intense beams of light that can remain parallel over long distances.
- Page 12 Equinox Pegasus 2 Laser Safety What harm can a Class 3B Laser cause? Class 3B laser devices can be harmful to eyesight if viewed directly. i.e. that is, the beam or effect strikes the face of a person. The actual injury that a Class 3B laser can cause depends upon a number of factors, including how long the laser beam enters the eye for, the intensity of light, and what part of the eye it actually gets focused onto.
- Page 13 Equinox Pegasus 2 Laser Safety Class 3B Laser Product Features Class 3B laser products are required to have several specific safety features as part of their design. These features are laid out in the British Standard on Laser Product Safety BS/EN 60825- 1:2007 and are a requirement of the product meeting CE approvals.
- Page 14 Equinox Pegasus 2 Laser Safety Maximum Permissible Exposure (MPE) The amount of laser light that a person can be exposed to without it causing harm to eyesight is known as the Maximum Permissible Exposure (MPE) or Exposure Limit Value (ELV). These levels are defined the in the British Laser Safety Standard BS/EN 60826-1:2007, and more recently in the Laser H&S regulations.
- Page 15 Equinox Pegasus 2 Laser Safety Diagrams showing Separation Distances Note. The 3 metre height specified is not the height of the actual projector, but it refers to the height of the laser effect. Therefore having the laser projector positioned at 3m height and aimed directly down is not what the guidance is saying.
- Page 16 Equinox Pegasus 2 Laser Safety What types of effect are safe to scan directly at audiences? Fast moving laser effects with evenly distributed scan patterns, such as circular tunnels are generally safer than effects such as finger beams, or effects with pronounced bright spots in them. Diffraction grating type effects are typically safer to point towards an audience, as long as the bright central spots are kept above head height.
- Page 17 Equinox Pegasus 2 Laser Safety Further Laser Safety Information and References The Radiation Safety of Lasers used for Display Purposes HS(G)95 HSE’s guidance on the safe use of lasers for light shows – Free download http://www.hse.gov.uk/pubns/books/hsg95.htm Control of Artificial Optical Radiation at Work Regulations 2010 New UK law specific to the use of lasers –...
