EarthWay 2600A-Plus Assembly Instructions Manual

Estate broadcast spreader
Hide thumbs Also See for 2600A-Plus:

Advertisement

Quick Links

Download this manual

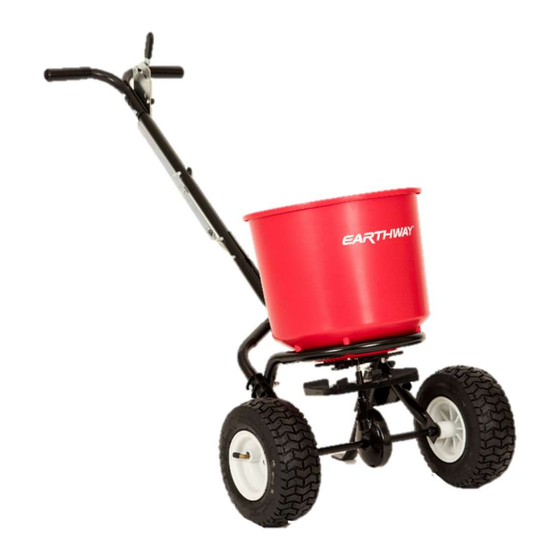

Estate Broadcast
Spreader
MODEL # 2600A-Plus
ASSEMBLY INSTRUCTIONS
2600APlus_REV_Feb2024
PAGE 1

Advertisement

loading

Related Manuals for EarthWay 2600A-Plus

Summary of Contents for EarthWay 2600A-Plus

  • Page 1 Estate Broadcast Spreader MODEL # 2600A-Plus ASSEMBLY INSTRUCTIONS 2600APlus_REV_Feb2024 PAGE 1...

  • Page 2: Helpful Hints

    Assembly and Operation Instructions HELPFUL HINTS Read the directions before assembly.  If your spreader does not spread evenly, be sure “FRONT” on the GEARBOX points to the front of the spreader. The  impeller must turn clockwise when pushing forward. Reversing the GEARBOX during assembly will cause issues. Your spreader is calibrated for three miles per hour, which is a brisk walking speed.
  • Page 3 Assembly and Operation Instructions STEP 6: Install Bearings over the Axle and press into the notches of the Lower Handles, see Image 4. IMAGE 3 IMAGE 4 STEP 7: Install drive wheel to axle using pin hole nearest to lower handles as shown below. Insert 1 ¾” Cotter pin through wheel and through axle.
  • Page 4 Assembly and Operation Instructions STEP 10: Place the Handle Shaft between the two Lower Handles and secure using the bolts and nuts selected in Step Lower Handles Top of Shaft ¼-20 Lock Nuts Handle Shaft ¼-20 X 1 ½” Bolt STEP 11: Take Gauge and Linkage Assembly and line up the holes with the Handle Shaft and Upper Handles.
  • Page 5 Assembly and Operation Instructions STEP 13: Take the bent end of the Control Rod and place it into the keyed shut off plate under the hopper making sure to take out the bow tie clip. The Control Rod will be placed into the first notch closest to the end of the plate. Once the Control Rod has been placed through the notch secure the placement by replacing the bow tie clip.
  • Page 6 Assembly and Operation Instructions OPERATING INSTRUCTIONS Obtain proper setting for material to be used from the enclosed SETTING MATRIX included with this spreader, or  from our web site under the MANUALS SECTION. Set the stop bolt on rate gauge assembly to the proper rate setting. ...

  • Page 7: How To Order Parts

    Assembly and Operation Instructions HOW TO ORDER PARTS Call or Email: TURF DEPOT 800-305-9255 or earthway@turfdepot.com 2600A-Plus_MAR2024 PAGE 7...
  • Page 8 Assembly and Operation Instructions 2600A-Plus Broadcast Spreader Parts List KEY # PART # DESCRIPTION 19115 HANDLE GRIPS UPPER HANDLE 25403 ¼-20 NYLON LOCK NUT 32103 #10-24 X ½” CARRIAGE BOLT SS 36500 AGITATOR PIN 33117 GEAR BOX BUSHING 12220 60089...

  • Page 9: Customer Service

    EarthWay. Due to the corrosive nature of most fertilizers and ice melt products, EarthWay Products, Inc. makes no warranty against and specifically excludes part(s) or product degradation or failure due to corrosion or its effects .
  • Page 10 Assembly and Operation Instructions such event, any claim for breach of implied warranty must be brought before the expiration of this express limited warranty’s one year term. 2600A-Plus_MAR2024 PAGE 10...
