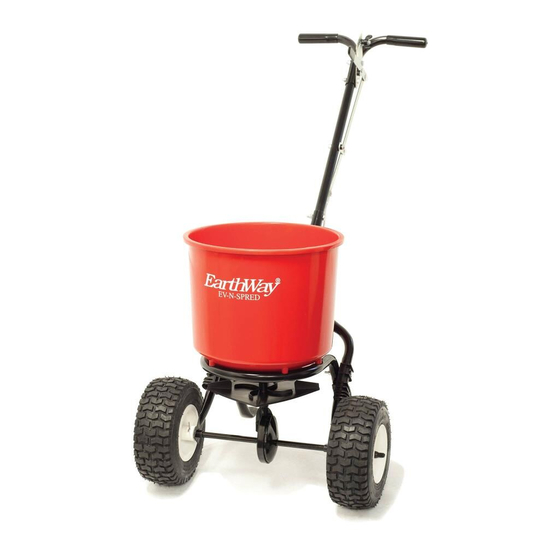

MODEL # 2600A-PLUS
Prior to assembly, you will need:
Needle nose pliers
#2 Phillips screwdriver
Two 7/16" adjustable or box wrenches
2600A-PLUS_M52215_July2021
SIDE SPREAD CONTROL
Visit our
Patent U.S. 10,993,368
Your EarthWay spreader includes a patented
EarthWay
feature to prevent fertilizer from being spread
website to see the
assembly video
on the left side. Unlike competitor designs that waste 7x
the fertilizer, side spread control keeps unneeded
fertilizer off sidewalks, driveways, and parking lots. Read
OPERATING INSTRUCTIONS (Page 5) to activate this
feature.
LOCK NUT
QTY 7
CARRIAGE
BOLT
QTY 1
SPACER
QTY 1
40 LB Broadcast
ASSEMBLY INSTRUCTIONS
ASSEMBLY HARDWARE
HEX NUT
SM WASHER
QTY 1
QTY 1
#10 X 1-1/4"
¼-20" X 1 ½"
QTY 4
QTY 5
¼" X 2 1/4"
QTY 2
GRIP HANDLES
AXLE BEARING
QTY 2
QTY 2
SPREADER COMPONENTS
Spreader
MD WASHER
LG WASHER
QTY 1
QTY 1
LG & SM
COTTER PIN
QTY 1
AGITATOR
PAGE 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2600A-PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for EarthWay 2600A-PLUS

Summary of Contents for EarthWay 2600A-PLUS

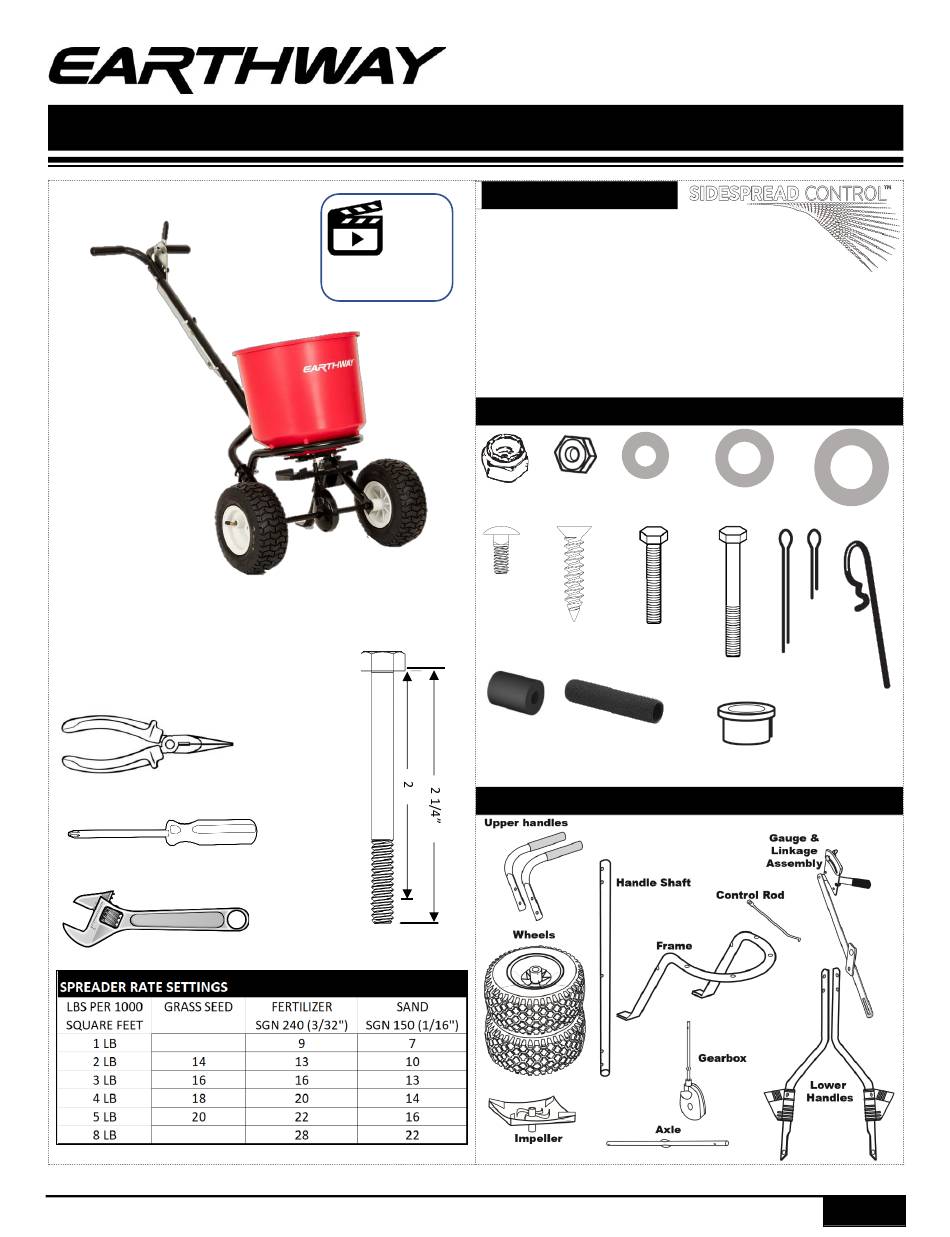

  • Page 1 MODEL # 2600A-PLUS ASSEMBLY INSTRUCTIONS SIDE SPREAD CONTROL Visit our Patent U.S. 10,993,368 Your EarthWay spreader includes a patented EarthWay feature to prevent fertilizer from being spread website to see the assembly video on the left side. Unlike competitor designs that waste 7x the fertilizer, side spread control keeps unneeded fertilizer off sidewalks, driveways, and parking lots.

  • Page 2: Helpful Hints

    Assembly and Operation Instructions HELPFUL HINTS  Read the directions before assembly.  If your spreader does not spread evenly, be sure “FRONT” on the GEARBOX points to the front of the spreader. The impeller must turn clockwise when pushing forward. Reversing the GEARBOX during assembly will cause issues. ...
  • Page 3 Assembly and Operation Instructions Slide the axle (coast wheel side first) through Step 5: the right side lower handle and into the gearbox (with the arrow facing the FRONT). You will need to rotate the axle to engage with the gearbox, then through the left side lower handle.
  • Page 4 Assembly and Operation Instructions Attach the linkage pivot with ¼”-20 x 1 ½” bolt, MD flat washer, black spacer, and lock nut (shown above). Step 10: Turn the end of the control rod into the keyed shut-off plate under the hopper. Step 11: Install the ½”...

  • Page 5: Customer Service

    ONE YEAR WARRANTY EarthWay Products, Inc. warrants this product free of defects in original workmanship and materials for a period of one year to the end user with the original purchase receipt. If a manufacturing non-conformance is found, EarthWay Products, Inc. at its discretion will repair or replace the part(s)/product at no charge provided the failure is not the result of incorrect installation, mishandling, misuse, tampering, or normal wear and tear as determined by EarthWay.
  • Page 6 Assembly and Operation Instructions HOW TO ORDER SPARE PARTS – CALL or EMAIL: TURF DEPOT 800-305-9255 or earthway@turfdepot.com 2600A+ - 40 LB Broadcast Spreader Parts List SERIES PART # DESCRIPTION SERIES PART # DESCRIPTION 12248 IMPELLER DISHED 70149 9 IN PNEUMATIC WHEEL...
