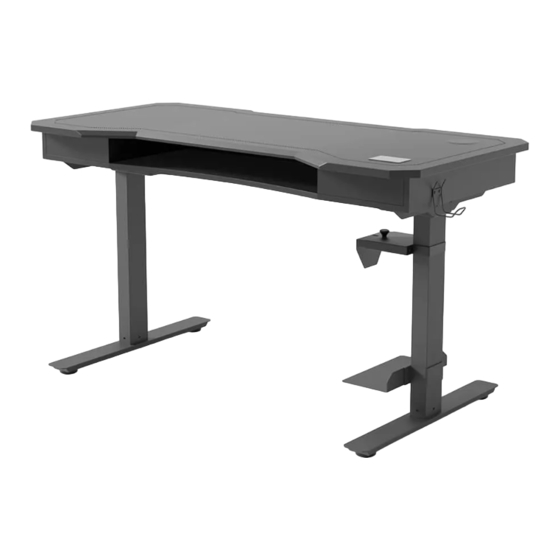

Cyclone Height Adjustable Desk
Thank you for purchasing the Cyclone Height Adjustable Desk. In order to make the best
use of this product and to use it safely, please read the manual carefully before use and
keep it for future reference.
Black Carbon - DOCYCC
Black PU - DOCYCPU
Issue 1 - 21/09/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cyclone DOCYCC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KOBLE Cyclone DOCYCC

Summary of Contents for KOBLE Cyclone DOCYCC

  • Page 1 Cyclone Height Adjustable Desk Thank you for purchasing the Cyclone Height Adjustable Desk. In order to make the best use of this product and to use it safely, please read the manual carefully before use and keep it for future reference. Black Carbon - DOCYCC Black PU - DOCYCPU Issue 1 - 21/09/23...

  • Page 2: Important Safety Instructions

    Important Safety Instructions When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using (this furnishing). DANGER – To reduce the risk of electric shock: 1. Unplug the power plug before cleaning, wipe the dust on surface with damp cloth when cleaning. Be careful not to let water drops into the internal parts, or loose the connector.
  • Page 3 19. For loading always put heavier items at the bottom and not near the top in order to help prevent the possibility of the furnishing tipping over. SAVE THESE INSTRUCTIONS For Household use only SERVICING OF DOUBLE-INSULATED PRODUCTS In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated product, nor is a means for grounding to be added to the product.
  • Page 4 For Household use only 1. The maximum functional load of weight that can be placed on this product is 50kg. 2. This product must not be used as a seat. 3. Always use the original AC power adapter and power cable supplied, otherwise it may cause slow wireless charging.
  • Page 5 Desk Top Leg (Long cable) Leg (Short cable) Feet Top bracket Lower / Shelf Top clamp Lower clamp Accessory hook...
  • Page 6 Desk top Qty 1 Leg (Long cable) Leg (Short cable) Qty 1 Qty 1 Feet Top bracket Lower / Shelf Qty 2 Qty 1 Qty 1 Top clamp Lower clamp Accessory hook Qty 1 Qty 1 Qty 1...
  • Page 7 Fixings, Fittings And Tools Please check you have all the parts listed below The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. M8x38mm Medium M6x12mm Small M6x12mm Small M3x16mm Small Allen Screw Qty 8 Allen Screw Qty 12...
  • Page 8 Step 1 Ensure legs are assembled in the locations shown. Secure using fixings Long cable Back Short cable Front Shown upside down M6x12mm Small Allen Screw Qty 12 Allen Key Qty 1...
  • Page 9 Step 2 Assemble feet using fixings Back Front Shown upside down M8x38mm Medium Allen Screw Qty 8 Allen Key Qty 1...
  • Page 10 Step 3 Control panel connections Motor cable Two cables for leg pre connected Motor cable Power for leg adapter cable Controller cable Control Panel Front Underside Back Shown upside down WARNING! Do Not Connect to power source at this stage. Power cable...
  • Page 11 Step 4 Use cable clips to route cables on the underside of the desk. Front Underside Back Shown upside down Power cable M3x12mm Small Machine Screw Qty 2 Cable Clip Qty 2...
  • Page 12 Step 5 Assemble thumb wheel to top bracket using fixings Assemble top bracket and top clamp around leg using fixings Assemble lower shelf and lower clamp around leg using fixings Note: The shelf and top bracket can be adjusted to securely hold the chosen device.
  • Page 13 Step 6 Assemble accessory hook using fixings Back Front M3x16mm Small Machine Screw Qty 2 Step 7 Stick self adhesive pads lower shelf as shown. Back Front Peel off sticker EVA Pad Qty 2...
  • Page 14 Step 8 Connect to mains power. Front Back Factory reset is recommended before first use. (See Page 14 - Reset operation)

  • Page 15: Operation

    Operation Controls Ⅰ Ⅱ Ⅲ Button Initial Sedentary Factory preset Factory preset Factory preset Raise / Up Lower / Down Value height 800mm height 950mm height 1100mm reminders LED Control Panel Back of Control Panel Wireless Charger(Qi) Motor 1,2 line Controller line sequence sequence...

  • Page 16: Thermal Protection

    Operation Stand Reminder: Press and hold the " " button of the manual controller for more than 3 seconds. The display screen flashes and displays the current default display of 60 minutes. At this time, you can press the" △ "and" ▽ "keys to switch the sitting time (45 minutes, 60 minutes, 90 minutes, 120 minutes).

  • Page 17: Default Parameters

    Operation Code Default Setting Display Code Name Remark Display parameters Select Unit of 0: “cm” Measure “inch” (cm or inch) Numerical value ranges: Bottom-(top -10)cm, one step setting is 1cm, At the same time, Top (minimum Select Lowest the setting value should be at least 10cm Bottom~(Top-10) height) Height Position...

  • Page 18: Trouble Removal

    If you have a wireless charging compatible device, please put the phone on the wireless charging indicator and check if the phone is successfully connected to the charging function. If not , move the mobile phone near the logo until the connection is successfully. Some phone cases may inhibit the wireless charging function or it’s efficiency It may be necessary to remove the phone case if difficulties are experienced.
  • Page 20 After Sales Support / Product Returns...

This manual is also suitable for:

Cyclone docycpu

Table of Contents
