KOBLE Juno DOJUNB4 Assembly Instructions Manual

KOBLE Juno DOJUNB4 Assembly Instructions Manual

4.0 height adjustable desk

Advertisement

Quick Links

Issue 1 - 29/08/23

Advertisement

loading
Need help?

Need help?

Do you have a question about the Juno DOJUNB4 and is the answer not in the manual?

Questions and answers

Summary of Contents for KOBLE Juno DOJUNB4

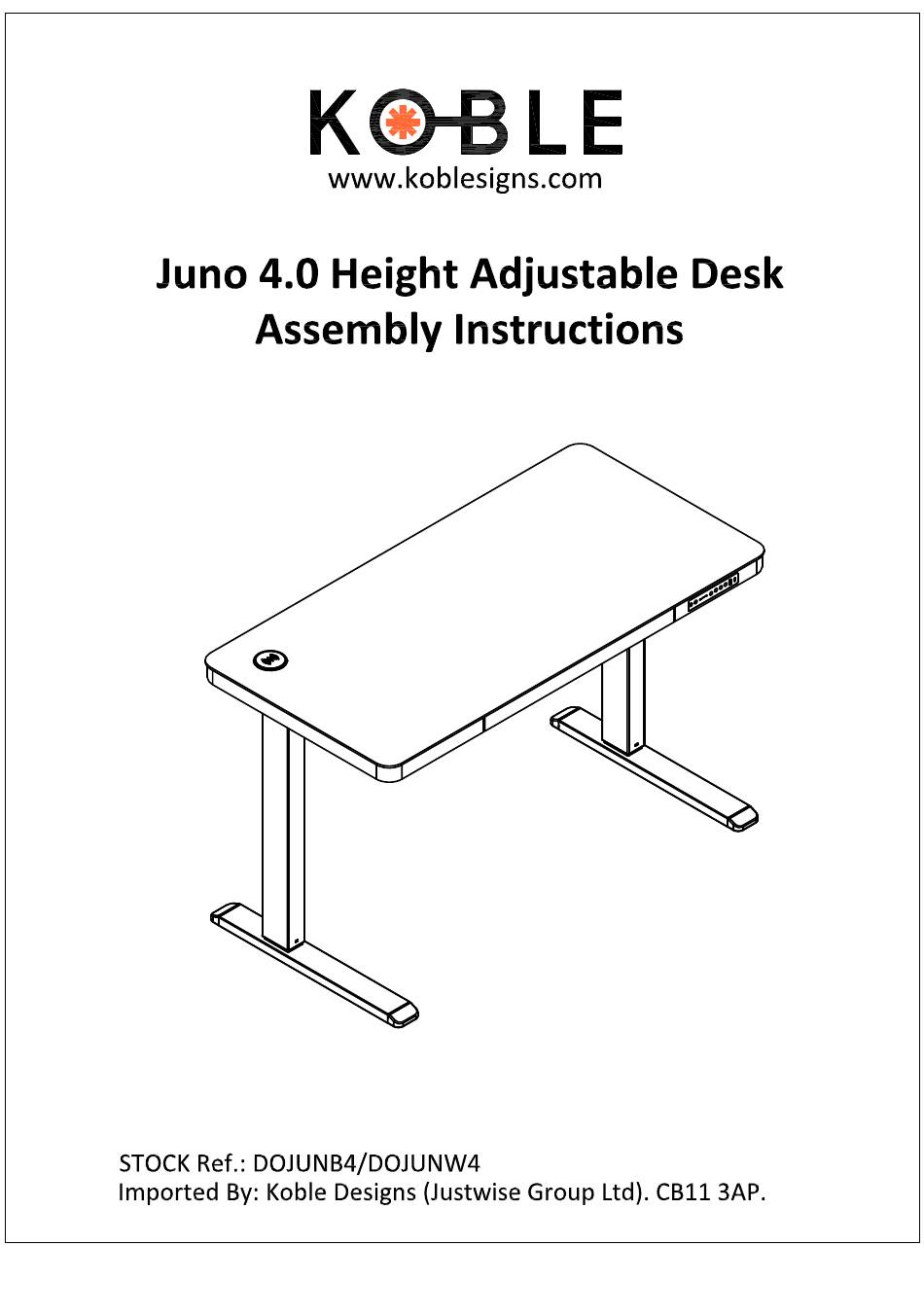

  • Page 1 Issue 1 - 29/08/23...
  • Page 3 Step 1 1. Carefully place table top upside down onto a clean flat surface. 2. Assemble leg (with motor) in the location shown. Secure using fixings 3. Assemble leg using fixings Tip: Do not locking screws ,before ensure locking screws are done! Back Front...
  • Page 4 Step 2 Ensuring the locking screws in transmission rod are undone, slide the hexagonal rod at one end of transmission rod into the hexagonal hole of the leg Ensure it is pushed all the way in up to the metal collar as shown. Important Do not retighten the locking screws.
  • Page 5 Step 3 Ensuring the locking screws at the opposite end of transmission rod are undone, carefully extend transmission rod out and slide the open end over the hexagonal rod on the motor on leg Note: Transmission rod is telescopic. Ensure it remains fully inserted into leg and onto the motor hexagonal rod on leg Tip:...
  • Page 6 Step 4 Ensuring feet are the correct way round as shown, assemble the feet to legs using fixings Back Front Step 5 Connect motor cable into the back of the control panel. Connect power cable into the power unit on the underside of the desk.
  • Page 7 Step 6 With help, carefully turn the desk over. The desk is heavy. Lift with care. Connect to the mains power supply and switch power on. IMPORTANT! Before using the desk for the first time, it must first be reset and initialised!! Simultaneously press keys for 5 seconds to display...
  • Page 8 (magsafe) USB port Type C The control panel has two charging ports (Type-C+USB). Both interfaces can charge electronic devices;...
  • Page 9 iPhone 8 Series iPhone SE2 iPhone X Series Phone SE3 iPhone 11 Series iPhone 14 Series or later iPhone 12 Series iPhone 13 Series Galaxy S6 Series Galaxy S21 Series alaxy Note20 Series Galaxy S7 Series Galaxy S22 Series Galaxy Z Flip Series Galaxy S8 Series Galaxy Note7 Series Galaxy W Flip Series...
  • Page 13 Remove case from device.
  • Page 14: Servicing Of Double-Insulated Products

    SAVE THESE INSTRUCTIONS SERVICING OF DOUBLE-INSULATED PRODUCTS...

This manual is also suitable for:

Juno dojunw4
