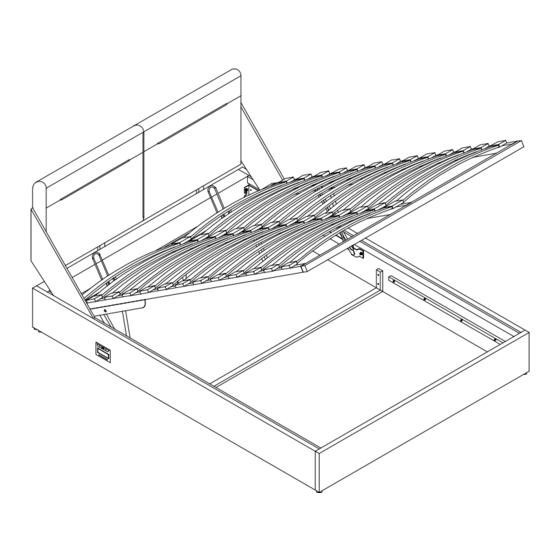

Reclina full/queen/king size end opening ottoman bed

Advertisement

Quick Links

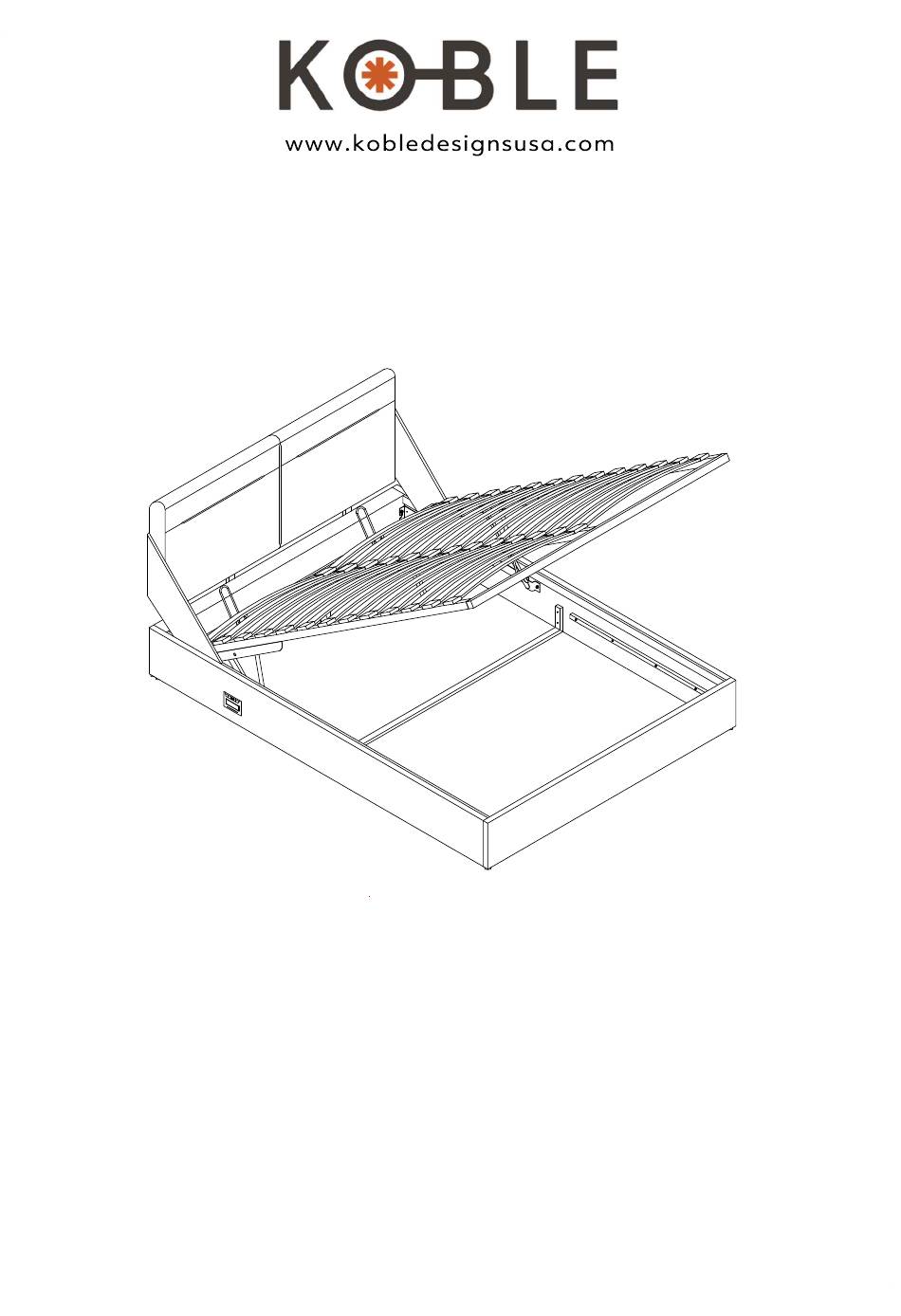

Reclina Full/Queen/King Size
End Opening Ottoman Bed
Care & Instruction Manual
Please read and retain these instructions for future
reference
Product Ref-HM-BD003-012
lmported By: Forward lndustries, 33401. U.S.A
This assembly will/may require 2 people
HM-BD003-022
HM-BD003-032
Issue 1 - 22/07/25

Advertisement

loading
Need help?

Need help?

Do you have a question about the HM-BD003-012 and is the answer not in the manual?

Questions and answers

Summary of Contents for KOBLE HM-BD003-012

  • Page 1 Reclina Full/Queen/King Size End Opening Ottoman Bed Care & Instruction Manual Please read and retain these instructions for future reference Product Ref-HM-BD003-012 HM-BD003-022 HM-BD003-032 lmported By: Forward lndustries, 33401. U.S.A This assembly will/may require 2 people Issue 1 - 22/07/25...
  • Page 2: Main Components

    INSIDE INSIDE Footboard Qty 1 Side rail (Left) Qty 1 INSIDE INSIDE Side rail (Right) Qty 1 Headboard base Qty 1 Hinge mechanism (x 1 pair) Fabric base x Qty 1 NOTE: PISTON ATTACHED Bent wood slats Qty 30 Double slat caps Qty 15 Mattress support bracket x Qty 2 Single slat caps Qty 30 Headboard panel (upholstered) Qty 1...
  • Page 3 Support leg Qty 2 Stretcher Qty 1 Ottoman end frame (Headboard) Qty 1 Ottoman end frame (Footboard) Qty 1 NOTE:EXTRA HOLES Ottoman frame (Sides) Qty 2 Ottoman frame centre support Qty 1 Headboard support Qty 2 Hinge mounting plate Qty 2 lf you have questions regarding the operation of your purchase, or in the unlikely event you need to return the unit because it is faulty or is no longer wanted, please contact our product returns department at customerservice@forwardindustries.com, or 561-465-0030, Option 0.
  • Page 4 Fixings, Fittings And Tools 0.31 x 1.77in Bolt Qty 30 0.66in Flat washer Qty 70 0.31 x 0.98in Bolt Qty 30 0.47in Spring washer Qty 32 Nut Qty 10 Allen key Qty 1 Spanner Qty 1 Box spanner x 1 0.31 x 0.787in Bolt Qty 6 0.31 x 1.968in Threaded stud Power cable 39 in.
  • Page 5: Assembly Steps

    Assembly Steps Pre - Assemble fixings Two people required...
  • Page 6 Assembly Steps Two people required...
  • Page 7 Assembly Steps Screws Fascia Housing Wireless charging (Fitted inside unit main unit)
  • Page 8 Assembly Steps...
  • Page 9 Assembly Steps Electrical Connections Headboard x2 Wireless charging units...
  • Page 10 Assembly Steps Bluetooth Connectivity The Bluetooth audio will automatically start searching for a paired device. Enable pairing on your device and ensure it pairs successfully. Device name "EMOMO". The Bluetooth audio can only pair with one device at a time. If you wish to pair with a different device, you will need to disconnect the first device and re-start pairing for the new device.
  • Page 11 Assembly Steps...
  • Page 12 Assembly Steps Two people required Inside Open the zipper to access holes...
  • Page 13 Assembly Steps...
  • Page 14 Assembly Steps Two people required Two people required Ensure frame is square...
  • Page 15 Assembly Steps Two people required...
  • Page 16 Assembly Steps lf you have questions regarding the operation of your purchase, or in the unlikely event you need to return the unit because it is faulty or is no longer wanted, please contact our product returns department at customerservice@forwardindustries.com, or 561-465-0030, Option 0. Address: Forward Industries,105 South Narcissus Avenue Suite 412, West Palm Beach, FL 33401...
  • Page 17 APPROXIMATE 1 HOUR ASSEMBLY TIME Safety and Care Advice Check you have all the Assemble the item as close We do not recommend the components and tools listed on to its final position (in the same pages 2, 3 and 4. room) as possible.
  • Page 18 Safety and Care Advice Specification (Bluetooth speaker) Output 7*2+10W Rated power Speaker 3"*2+4", 10*2+10W Blutooth Edition Power supply: INPUT: 100-240V~50/60Hz 0.6A OUTPUT: 12V This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 19 Safety and Care Advice Trouble shooting / frequently asked questions wireless charging Appearance Passable Reason How to Solve? No function/ No power Check the connecting Nothing works of the power plug. The phone jacket Take o the jacket is too thick or and try again made by metal Wireless...
