KOBLE Charleston Care & Instruction Manual

KOBLE Charleston Care & Instruction Manual

Corner furniture set

Advertisement

Quick Links

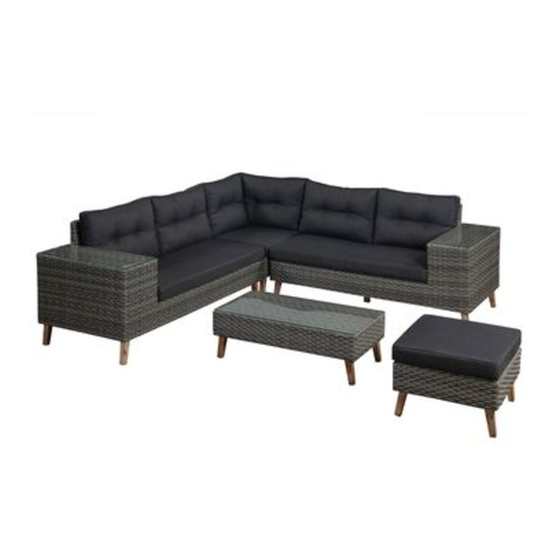

Charleston Corner Furniture Set
Care & Instruction Manual
Please read and retain these instructions for future
reference
STOCK CODES : GFLCHAR
Imported By: Koble Designs (Justwise Group Ltd). CB11 3AP.
Issue 1 - 13/12/2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the Charleston and is the answer not in the manual?

Questions and answers

Summary of Contents for KOBLE Charleston

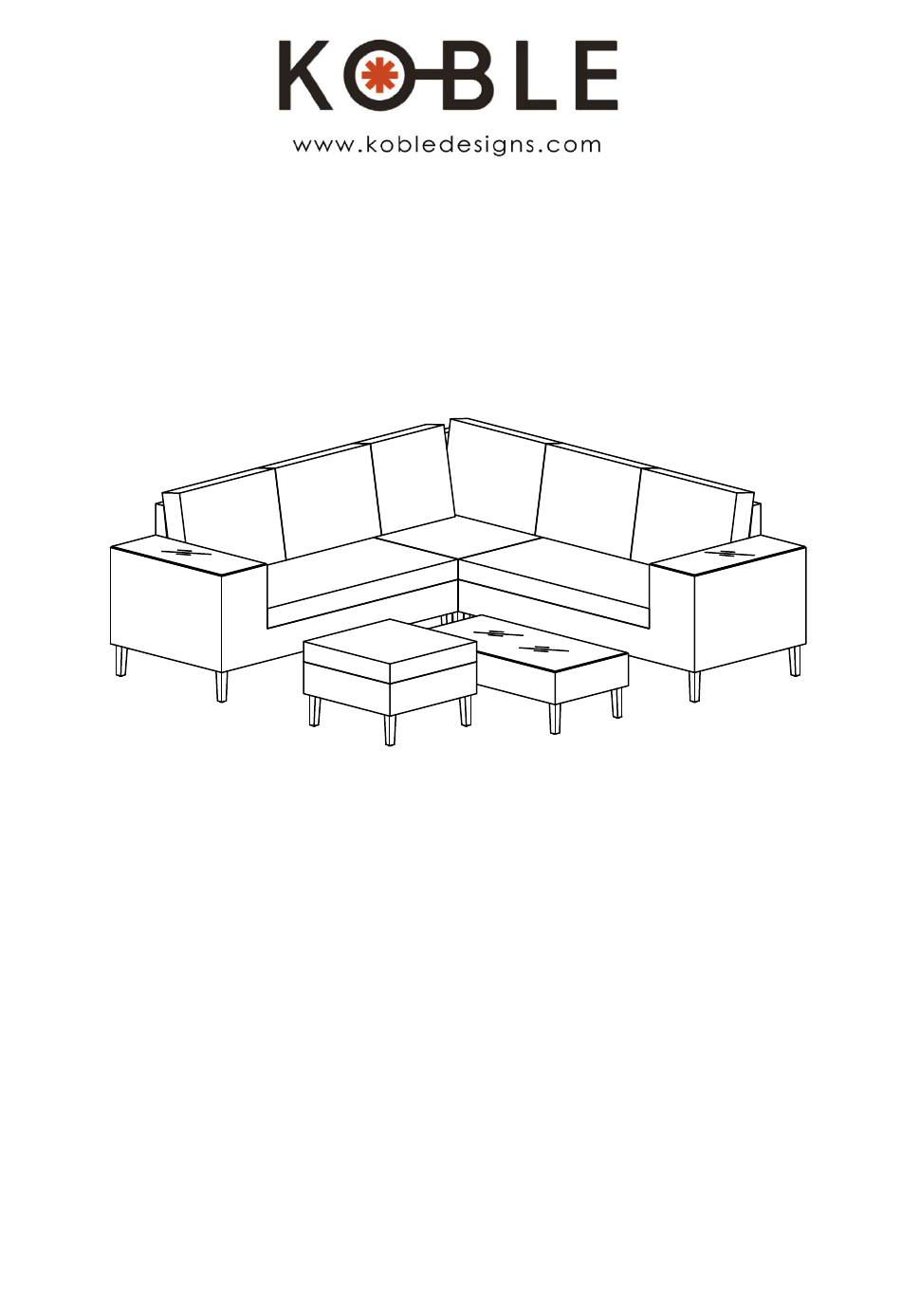

  • Page 1 Charleston Corner Furniture Set Care & Instruction Manual Please read and retain these instructions for future reference STOCK CODES : GFLCHAR Imported By: Koble Designs (Justwise Group Ltd). CB11 3AP. Issue 1 - 13/12/2021...
  • Page 2 Safety and Care Advice Check you have all the Dispose of all packaging carefully Assemble on a soft level components and tools listed on and responsibly. surface to avoid damaging the pages 3 and 4. unit or your floor. Place product on an even surface Remove all fittings from the Assembly requires 2 people.
  • Page 3 Leg 2 Qty 6 (43 x 210mm) Leg 1 Qty 5 (43 x 210mm) Leg 3 Qty 5 (43 x 210mm) Leg 4 Qty 5 (43 x 210mm) 2 Seater Sofa (Left) Qty 1 (1610 x 760 mm) 2 Seater Sofa (Right) Qty 1 (1610 x 760 mm) Corner Sofa, Qty 1 (760 x 760 mm) Foot Stool,Qty 1 (580 x 580mm) Table Top, Qty 1 ( 1000 x500 mm)
  • Page 4 Sofa Arm Glass, Qty 2 (750x310 mm) 2 Seater Sofa Seat Cushion, Qty 2 (1290 x 640 mm) Corner Sofa Seat Cushion, Qty 1 (640 x 640mm) Stool Cushion Qty 1 (580 x 580 mm) 2 Seater Sofa Back Cushion, Qty 4 (650 x 450mm) Corner Sofa Back Cushion, Qty 1 (690 x 450mm) Support Leg Qty 2 (43 x 210mm) Corner Sofa Back Cushion, Qty 1 (560 x 450mm)
  • Page 5 Fixings, Fittings And Tools 20mm M6 Screw Qty 22 16mm M6 Washer Qty 44 20mm M6 Bolt Qty 22 60mm M6 Allen Key Qty 1 Metal hooks Qty 4 For missing or damaged parts, call our Customer Helpline: 01799 513466 or email cs@kobledesigns.com...
  • Page 6: Assembly Steps

    Assembly Steps 2 Seater Sofa (Left and Right) Two people required Assemble the legs and 4 to the under side of 2 Seater Sofa .Using Fixings ,,,,, and Assemble the leg the under side of 2 Seater Sofa .Using Fixings Repeat for 2 Seater Sofa 5 and 6 .
  • Page 7 Assembly Steps Table Assemble the legs 3 and 4 to the under side of Table .Using Fixings Corner Chair Assemble the legs 3 and 4 to the under side of Corner Chair Using Fixings...
  • Page 8 Assembly Steps Two People Required Carefully turn the 2 Seater Sofa and Chair over. Align together and use metal Clips to secure. UNDERSIDE Connect the bottom of Chai rs by Clips if necessary. Carefully locate Glass Tops in the locations shown.
  • Page 9 Assembly Steps Place the seat cushions and back cushions on the Sofas and Foot Stool as shown. Assembly is complete.
  • Page 10 Assemble on a soft level surface to avoid damaging the unit or your floor. Glass  • This product complies wth BS EN 12521: 2015 • Import by: Koble Designs ( Justwise Group Ltd). CB11 3AP. • This product contains 5 mm thick toughened safety glass. Warnings: • If the glass is chipped or broken, stop using the product.
