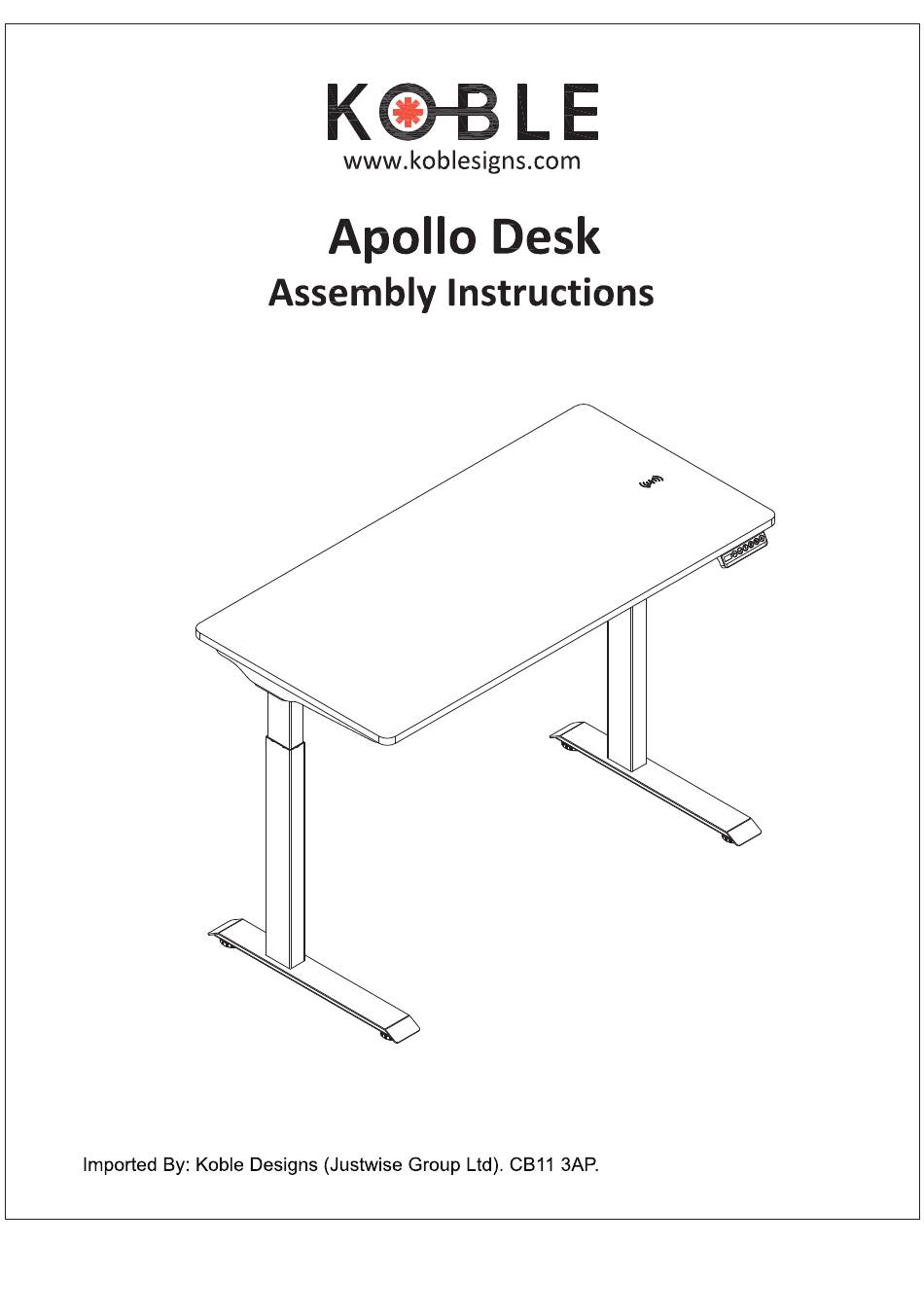

- Page 1 STOCK Ref: DOAPOW/DOAPOD Issue 1 - 19/05/21...
- Page 2 50kg. Power Supply: AC adapter, 100-240V 50/60Hz Service Environment: 0-40°C Wireless Charging: 10W...
- Page 3 Desk Top Qty 1 (120*60*1.8cm) Leg Qty 2 Controller Qty 1 (67*7.5cm) (13*11.8cm) Foot Qty 2 Power Cable Qty 1 (58*7.4cm) (310cm) Power Adaptor Qty 1 (11.7*6cm) (2.5*1.8cm) Flash Cable Qty 1 Cable for Wireless charging device Qty 1 (50cm) (40cm)
- Page 4 ST4.2x19mm Qty 3 M6x12mm Qty 4 M6X16mm Qty 8 4x4 Qty 1 5x5 Qty 1...
- Page 5 STEP 1 Assemble legs to top using fixings Front Back Important Screws Pre-assembled Insert Insert the hexagon Shape rod in the Once inserted, rotate the end of the leg into the hexagon leg to engage the fixing shape hole in the motor housing. screws as shown.
- Page 6 STEP 2 Assemble feet legs using fixings Front Back M6X16mm Qty 8 4x4 Qty 1 STEP 3 Assemble the controller to top using fixings Front Back ST4.2x19mm Qty 3 5x5 Qty 1...
- Page 7 STEP 4 a. Connect flash cable to power adaptor b. Connect flash cable to the DC port on controller c. Connect power cable to power adaptor d. Finally locate the adaptor underside into the bracket on the underside of the top. STEP 5 Connect wireless charging cable...
- Page 8 STEP 7 With help, carefully turn the desk over into connect to a power source.
- Page 9 Height Adjustment / Controls Control Panel LED Screen UP/DOWN Keys Memory Keys when the desktop reaches its highest point. desktop reaches its lowest point. Short press the key or key, to make small adjustments to the height. Programme Preset Height (Standing/Seated) Standing: Press the chosen memory key (1, 2, 3 or 4) and hold for 3 seconds.
-
Page 10: Troubleshooting
Wireless Charging Function Wireless Charging logo Troubleshooting release down keys, the reset is over and the table can be used normally. b.When it doesn't work and the LED shows "E01" or "E02", please retry 18 mins later. the power for at least 10 seconds. Reconnect the power and press keys to start and reset process when it shows the “RST”. - Page 11 Important Information 1. Power supply: AC100V-240V, 50/60Hz 2. Service Environment: 0-40°C 3. Unplug the power plug before cleaning, wipe the dust on surface with damp cloth when cleaning. Be careful not to let water drops into the internal parts, or loose the connector. 4.
