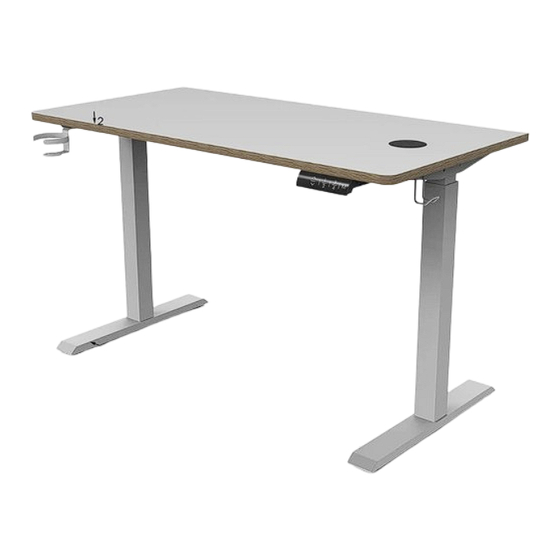

Gino Height Adjustable Desk
Gino Height Adjustable Desk . In order to make the best use
White - DOGINOW
Black - DOGINOB
Ash - DOGINOA
Issue 1 - 08/09/23

Advertisement

loading
Need help?

Need help?

Do you have a question about the Gino DOGINOW and is the answer not in the manual?

Questions and answers

Summary of Contents for KOBLE Gino DOGINOW

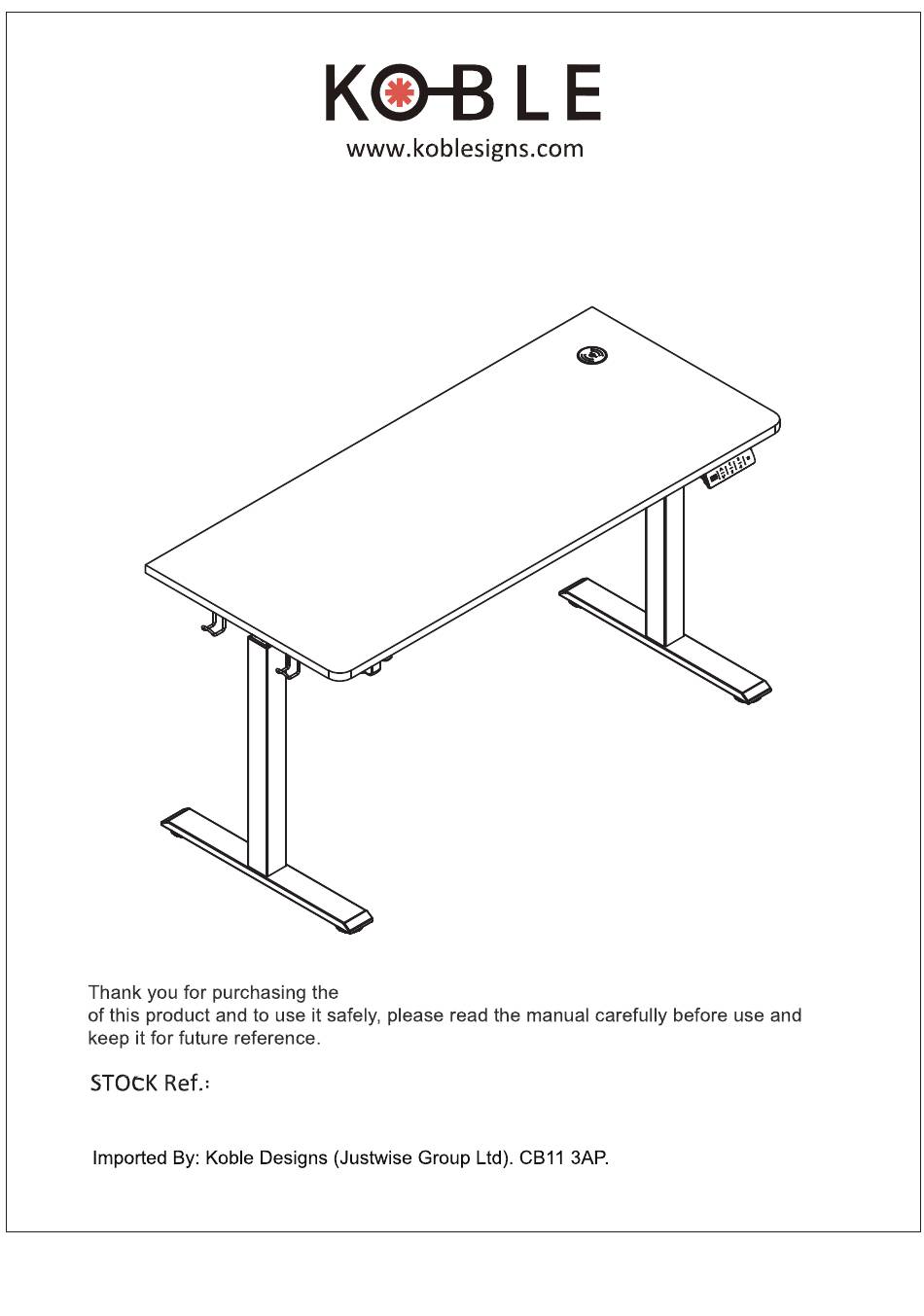

  • Page 1 Gino Height Adjustable Desk Gino Height Adjustable Desk . In order to make the best use White - DOGINOW Black - DOGINOB Ash - DOGINOA Issue 1 - 08/09/23...
  • Page 2: Important Safety Instructions

    Important Safety Instructions When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using (this furnishing). DANGER – To reduce the risk of electric shock: 1. Unplug the power plug before cleaning, wipe the dust on surface with damp cloth when cleaning. Be careful not to let water drops into the internal parts, or loose the connector.
  • Page 3: Servicing Of Double-Insulated Products

    19. For loading always put heavier items at the bottom and not near the top in order to help prevent the possibility of the furnishing tipping over. SAVE THESE INSTRUCTIONS For Household use only SERVICING OF DOUBLE-INSULATED PRODUCTS In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated product, nor is a means for grounding to be added to the product.
  • Page 4 For Household use only 1. The maximum functional load of weight that can be placed on this product is 50kg. 2. This product must not be used as a seat. 3. Always use the original AC power adapter and power cable supplied, otherwise it may cause slow wireless charging.
  • Page 5 Desk Top Leg Frame Leg Bracket Feet Desk top Leg Frame Qty 1 Qty 1 Leg Bracket Foot Qty 2 Qty 2...
  • Page 6 Fixings, Fittings And Tools Please check you have all the parts listed below The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. M6x12mm Allen Screw M6x52mm Allen Screw M8x38mmAllen Screw Qty 8 Qty 16 Qty 2...
  • Page 7 Step 1 Assemble cup holder , control box and power adaptor to the underside of desk top using the fixings shown. Back Front Shown upside down M6x12mm Screw Qty 2 M4x25mm Flat Head M3x16mm Medium Screw Qty 3 Wood Screw Qty 4 Cup Holder Qty 1 Control Box Qty 1 Power Adapter Qty 1...
  • Page 8 Step 2 With help, assemble leg brackets to the top of leg frame M6x12mm Allen Screw Qty 8 Allen Key Qty 1 Step 3 Ensuring the leg motor is on the same side as control panel secure the leg frame to desk top IMPORTANT! Ensure fixings...
  • Page 9 Step 4 Assemble feet to leg frame Back Front Shown upside down M8x38mm Allen Screw Qty 8 Allen Key Qty 1...
  • Page 10 Step 5 Complete cable connections into the back of control panel as shown. Wireless Wireless Charger Power Cord Charging Port Power Motor Interface For Motor Cable WARNING! Do Not Connect to power source at this stage. Back Front Shown upside down Use cable strap to secure loose cables.
  • Page 11 Step 6 Two People Required. With help, turn the desk upright Warning - The desk is heavy. Lift with care. Locate accessory hooks into leg brackets . These can be located on either side. Turn foot adjusters to achieve a level stable position. Back Front Foot Adjustment Leveler...
  • Page 12 Step 7 Plug power cable into power adapter Connect to mains power and switch on. Back Front Connect Power Cable to Power Adapter Power Adapter Qty 1...
  • Page 13: Operation

    Operation Control Panel USB and USB-C R/H side of control panel 2 USB Ports Wireless Charger (1 Type A 5V2.4A,1 Type C 20V1A) While adjusting the height of your desk, the USB ports will pause charging until the height adjustment Wireless Charger process completes.
  • Page 14 If you have a wireless charging compatible device, please put the phone on the wireless charging indicator and check if the phone is successfully connected to the charging function. If not , move the mobile phone near the logo until the connection is successfully. Some phone cases may inhibit the wireless charging function or it’s efficiency It may be necessary to remove the phone case if difficulties are experienced.
  • Page 16 After Sales Support / Product Returns...
