Anders Smart Desk

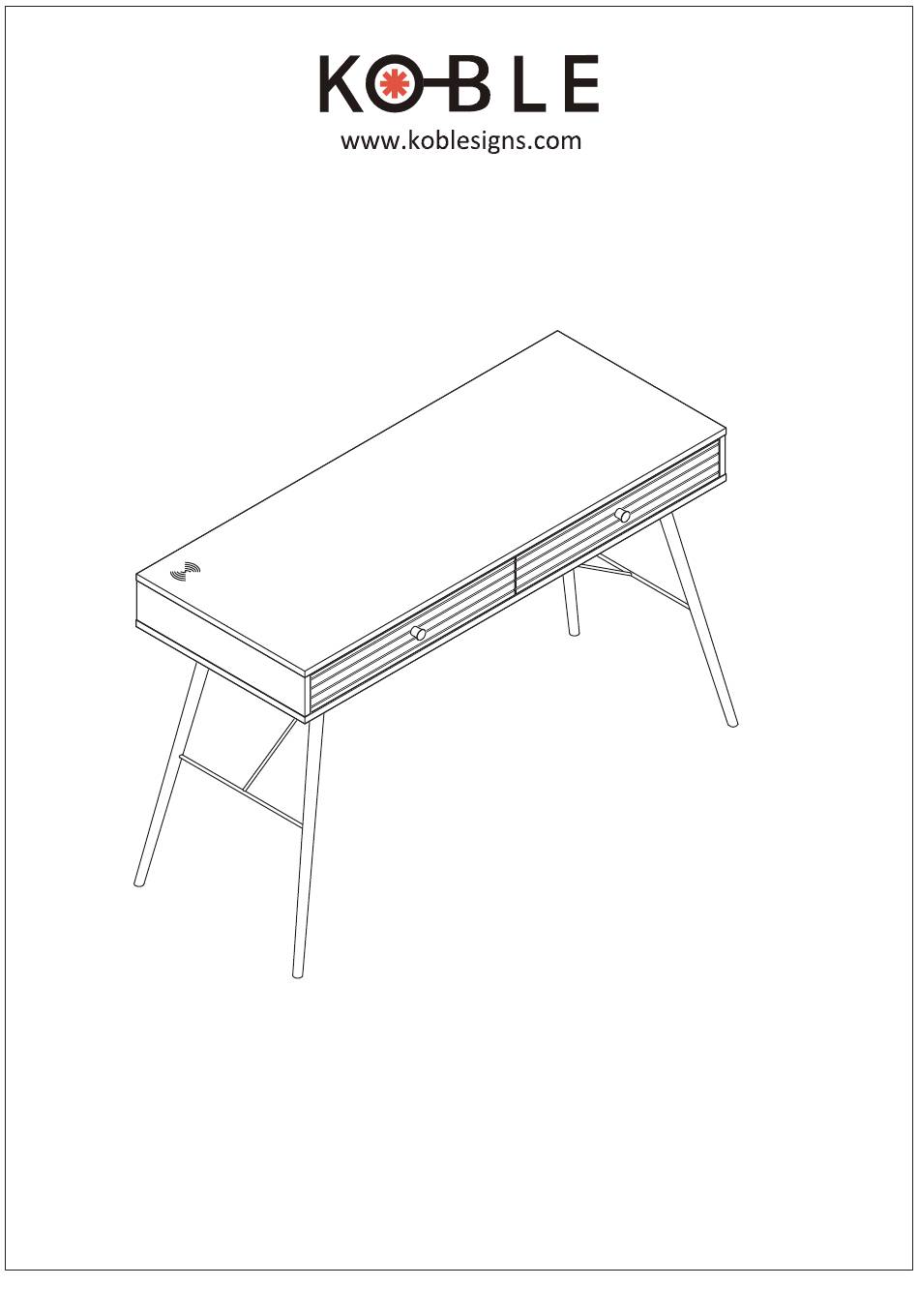

Assembly Instructions
Thank you for purchasing the Anders Desk. In order to make the best use
of this product and to use it safely, please read the manual carefully before use and
Thank you for keep it for future reference.
STOCK REF. : DOAND
Imported By: Koble Designs(Justwise Group Ltd). CB11 3AP.
Issue 1 - 28/12/2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the Anders Smart Desk and is the answer not in the manual?

Questions and answers

Related Manuals for KOBLE Anders Smart Desk

Summary of Contents for KOBLE Anders Smart Desk

  • Page 1 Thank you for keep it for future reference. STOCK REF. : DOAND Imported By: Koble Designs(Justwise Group Ltd). CB11 3AP. Issue 1 - 28/12/2021...
  • Page 2 MAIN COMPONENTS Please check you have all the parts listed below Top Qty 1 Base Panel Qty 1 Side Panel (Left) Qty 1 (1200x480x16mm) (1200x480x16mm) (98x479x16mm) Divider Qty 1 Drawer Front (Right) Qty 1 Side Panel (Right) Qty 1 (441x98x16mm） (579x92x16mm) (98x479x16mm) Back Panel Qty 1...

  • Page 3: Table Of Contents

    Fixings, Fittings And Tools Please check you have all the parts listed below The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. M6*40 Large Cam Dowel Qty 6 Φ8*30 Wooden Dowel Qty 12 Φ15*12 Large Cam nut Qty 6 M6*16 Allen Screw Qty 16...
  • Page 4 Main Component Diagram Right Left For missing or damaged parts, call our Customer Helpline: 01799 513466 or email cs@kobledesigns.com...
  • Page 5 Assembly Steps Step 1 UNDERSIDE Wooden Dowel Qty 12 Cam Dowel Qty 6 Step 2 Push firmly down IMPORTANT Push wireless charging coil firmly down. Maintain pressure and turn central knob to secure Turn knob to secure BACK Groove UNDERSIDE FRONT Shown upside down.

  • Page 6: Screw Qty

    Assembly Steps Step 3 Release plastic lever to separate drawer runners into two sections. Pull apart. Back Front Note hole locations for screws Turn Back Front over Note hole locations for screws Drawer Slider Qty 4 M3.5*12 Screw Qty 8...
  • Page 7 Assembly Steps Hole this end Step 4 LEFT BACK FRONT UNDERSIDE Groove at back RIGHT Shown upside down. Large Cam nut Qty 6 Step 5 BACK UNDERSIDE FRONT Shown upside down. M4 Allen Key Qty 1 Screw Qty 6...

  • Page 8: Self Adhesive Covers Qty 12

    Assembly Steps Step 6 Use self adhesive stickers to cover fixing holes. BACK FRONT Shown upside down. Self adhesive covers Qty 12 Step 7...

  • Page 9: M6 Split Lock Washer Qty 8

    Assembly Steps Step 8 UNDERSIDE Shown upside down. M6*16 Allen Screw Qty 8 M4 Allen Key Qty 1 M6 Split Lock Washer Qty 8 M6 Washer Qty 8 Step 9 BACK M6*16 Allen Screw Qty 8 UNDERSIDE FRONT M6 Split Lock Washer Qty 8 Shown upside down.
  • Page 10 Assembly Steps Step 10 BACK UNDERSIDE FRONT Shown upside down. M6*45 Allen Screw Qty 2 M4 Allen Key Qty 1...
  • Page 11 Assembly Steps Step 11 M6*34 Small Cam Dowel Qty 8 Step 12 Ensure grooves are aligned Φ12*10.5 Small Cam nut Qty 4 Step 13...
  • Page 12 Assembly Steps Step 14 Φ12*10.5 Small Cam nut Qty 4 Handle Qty 2 Step 15 Front Back hole locations for screws Drawer Slider Qty 1 M3.5*12 Screw Qty 4 Self adhesive covers Qty 8...
  • Page 13 Assembly Steps Step 16 Engage drawer runners. Right Left Adjustment alignment as required fully tighten.
  • Page 14 Assembly Steps Step 17 Use Cable Clips to route the power cable as required Route cable Fixed through cable tidy clip Shown from back Cable Clips Qty 3 Corner bracket Qty 6 Power Adapter 150cm Qty 1...
  • Page 15 Wireless charging function If you have a wireless charging compatible phone, please put the phone on the wireless charging indicator and check if the phone is successfully connected to the charging function. If not, move the mobile phone around the logo until the connection is successful. Some phone cases may inhibit the wireless charging function or it's efficiency.
  • Page 16 Safety and Care Advice 1.The maximum weight that can be placed on this product is 30KG 2.This product must not be used as a seat. 3. Always use the original AC power adapter and power cable, otherwise it may cause slow wireless charging,In extreme cases,an incompatible AC power adapter may burn out.
