KOBLE New England Care & Instruction Manual

KOBLE New England Care & Instruction Manual

Corner furniture set

Advertisement

Quick Links

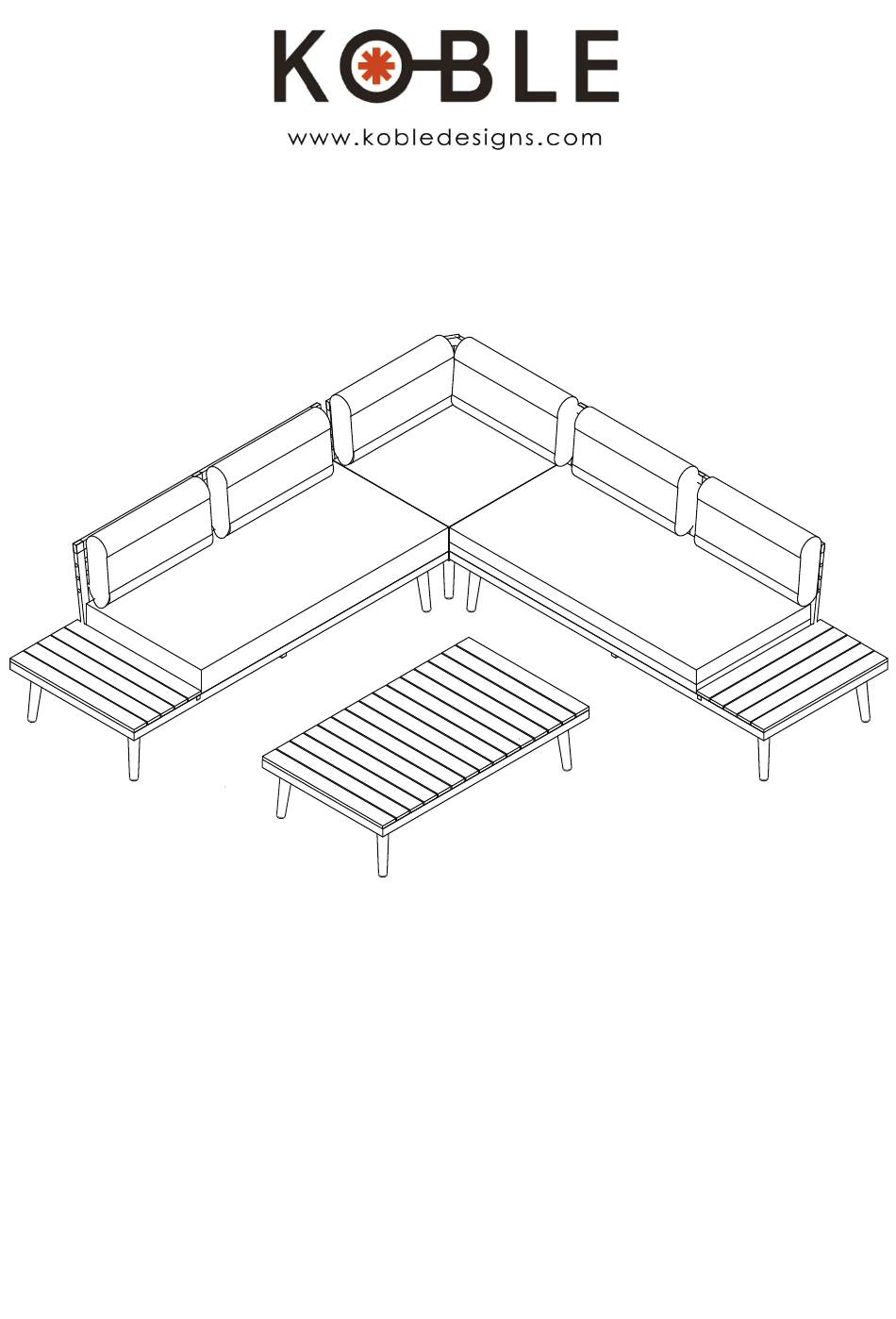

New England Corner Furniture Set
Care & Instruction Manual
Please read and retain these instructions for future
reference
STOCK CODES : GFCENG
Imported By: Koble Designs (Justwise Group Ltd). CB11 3AP.
Issue 1 - 31/01/22

Advertisement

loading
Need help?

Need help?

Do you have a question about the New England and is the answer not in the manual?

Questions and answers

Summary of Contents for KOBLE New England

  • Page 1 New England Corner Furniture Set Care & Instruction Manual Please read and retain these instructions for future reference STOCK CODES : GFCENG Imported By: Koble Designs (Justwise Group Ltd). CB11 3AP. Issue 1 - 31/01/22...
  • Page 2 Safety and Care Advice Check you have all the Dispose of all packaging carefully Assemble on a soft level components and tools listed on and responsibly. surface to avoid damaging the pages 3 and 4. unit or your floor. Place product on an even surface Remove all ttings from the Assembly requires 2 people.
  • Page 3 Legs Qty 16 (70 x 275mm)(90x275mm) Table Top Qty 1 (1200 x 55mm)(700 x 55mm) Corner Chair Frame Qty 1 (465 x 740/740mm) Backrest Qty 2 (1420 x 20mm)(462 x 20mm) Seat Frame (Left) Qty 1 (1830 x 55mm)(720 x 55mm) Seat Frame (Right) Qty 1 (1830 x 55mm)(720 x 55mm) Seat Cushion Qty 2 (1435 x 100mm)(730 x 100mm) Back Cushion Qty 5 (440 x 180mm)(720 x 180mm)
  • Page 4 Fixings, Fittings And Tools 45mm M6 Bolt Qty 6 15mm M6 Bolt Qty 72 20mm M6 Bolt Qty 6 15mm M6 Height Adjustable Foot 15mm M6 Lock Nut Qty 6 16mm M6 Washer Qty 84 Qty 2 Connecting Strap Qty 4 60mm M6 Allen Key Qty 2 For missing or damaged parts, call our Customer Helpline: 01799 513466 or email cs@kobledesigns.com...
  • Page 5: Assembly Steps

    Assembly Steps Bench 2 Seater (Left) Two people required Assemble the legs seat frame (Left) using A ,, F Fixings x 16 x 16 Assemble the support leg to seat frame (left) using Fixings Screw height adjustable in to support leg foot...
  • Page 6 Assembly Steps Assemble backrest to seat frame B C D using fixings Bench 2 Seater (Right) Repeat Steps 1 to 3 to Two people required assemble the right hand 2 seater bench, using seat frame , legs and support leg x 16 x 16...
  • Page 7 Assembly Steps Corner Chair Assemble the legs corner chair frame using Fixings x 16 x 16 Table Assemble the legs using Fixings table top x 16 x 16...
  • Page 8 Assembly Steps Connect all the parts together by the connecting straps around the chair as shown. Step 8 Place the seat cushions 9 and back cuhsions onto the sofa.
  • Page 9 Assembly Steps Step 9 Assembly is complete.
  • Page 10 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY WARNINGS   Dispose of all packing carefully and responsibly.  Place product on an even surface prior to using.  Suitable for Domestic Garden use only.  Children should not be left alone in situ with product, please refrain children climbing onto the product.  Frequently check any damage to the product including the underside and tighten fixings where required. Self Assembly   Check you have all the components and tools listed before assembly.  Remove all fittings from the plastic bags and separate them into their groups.  Keep children and animals away from the work area, small parts could choke if swallowed.  Make sure you have enough space to layout the parts before starting.  Do not stand or put weight on the parts during assembly, this could cause damage.  Assemble on a soft level surface to avoid damaging the unit or your floor. Tables   Do not sit or stand on the table. Chairs   Do not stand on the seating. Sun loungers  ...
  • Page 11 Email - CS@kobledesigns.com Tel:+ 44 (0)1799 513 466 Address: Koble Designs, 6 The Shires, Shirehill industrial Estate, Saffron Walden, Essex, CB11 3AP Purchased from other retailer If you purchased your product from one of our retailer partners, please refer back to the retailer directly, for any customer services related issued , refunds or returns requests.
