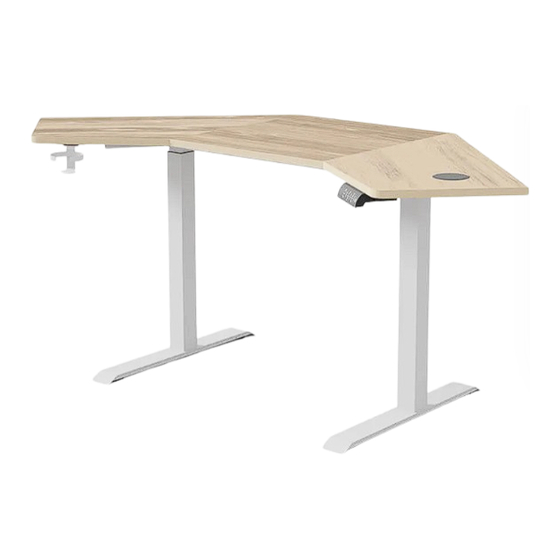

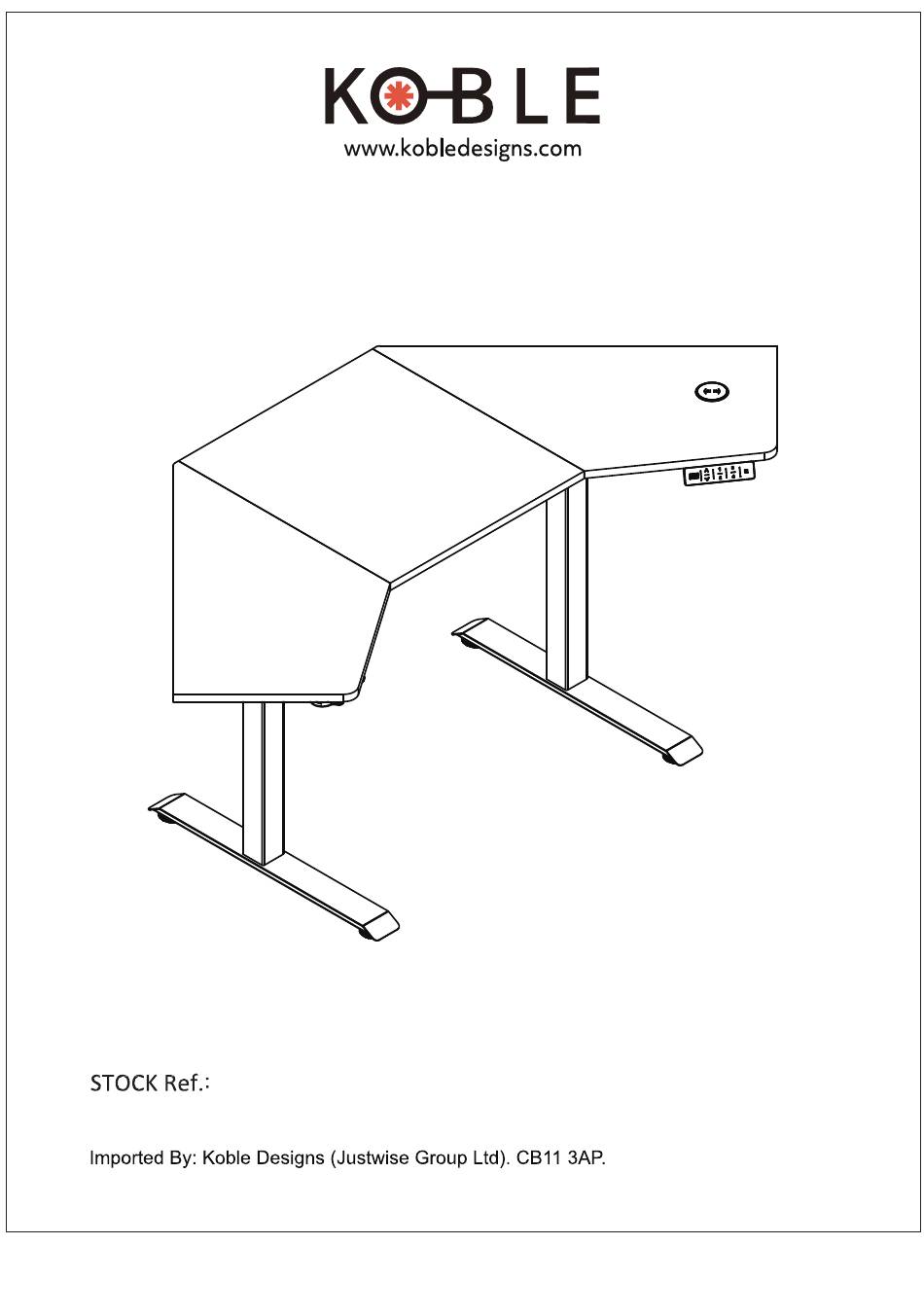

Gino Height Adjustable Corner Desk
Thank you for purchasing the Gino Height Adjustable Corner Desk. In order to make the
best use of this product and to use it safely, please read the manual carefully before use
and keep it for future reference.
White - DOGINCOW
Black - DOGINCOB
Ash - DOGINCOA
Issue 1 - 08/11/23
Advertisement
Related Manuals for KOBLE Gino DOGINCOW
Summary of Contents for KOBLE Gino DOGINCOW
- Page 1 Gino Height Adjustable Corner Desk Thank you for purchasing the Gino Height Adjustable Corner Desk. In order to make the best use of this product and to use it safely, please read the manual carefully before use and keep it for future reference. White - DOGINCOW Black - DOGINCOB Ash - DOGINCOA...
-
Page 2: Important Safety Instructions
Important Safety Instructions When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using (this furnishing). DANGER – To reduce the risk of electric shock: 1. Unplug the power plug before cleaning, wipe the dust on surface with damp cloth when cleaning. Be careful not to let water drops into the internal parts, or loose the connector. - Page 3 19. For loading always put heavier items at the bottom and not near the top in order to help prevent the possibility of the furnishing tipping over. SAVE THESE INSTRUCTIONS For Household use only SERVICING OF DOUBLE-INSULATED PRODUCTS In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated product, nor is a means for grounding to be added to the product.
- Page 4 For Household use only 1. The maximum functional load of weight that can be placed on this product is 50kg. 2. This product must not be used as a seat. 3. Always use the original AC power adapter and power cable supplied, otherwise it may cause slow wireless charging.
- Page 5 Desk Top (Centre) Desk Top (Left) Desk Top (Right) Leg Frame Foot Bracket (Left) Bracket (Right) Stretcher...
- Page 6 Underside Underside Desk top (Centre) Desk top (Left) Qty 1 Qty 1 Underside Desk top (Right) Leg Frame Qty 1 Qty 1 Foot Bracket Bracket Qty 2 (Left) Qty 1 (Right) Qty 1 Stretcher Qty 1...
- Page 7 Fixings, Fittings And Tools Please check you have all the parts listed below The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. M8x38mm Medium M6x12mm Small M3x12mm Flat Head Machine Screw Qty 8 Machine Screw Qty 18 Screw Qty 3...
- Page 8 Step 1 Assemble power adaptor to the underside of desk top (right) using the fixings shown. Shown upside down M3x16mm Medium Wood Screw Qty 4 Power Adapter Qty 1 Step 2 Carefully align desk tops upside down onto a clean flat surface as shown. Connect the desk tops together using metal plates screws Underside...
- Page 9 Step 3 With help, assemble brackets to the top of leg frame Take care to ensure they are correctly located as shown. Right Bracket (right) must be located on the same side as the motor. Motor Left Left M6x12mm Small Machine Screw Qty 4 Allen Key Qty 1 Step 4...
- Page 10 Step 5 Ensuring the leg motor is on the same side as power adaptor , secure the leg frame to the underside of the desk top using fixings Do not fully tighten at this stage. motor Back Front Shown upside down M6x12mm Small Machine Screw Qty 8 Allen Key Qty 1...
- Page 11 Step 6 Ensuring screws are correctly located as shown, further secure the leg frame to the desk top. Before tightening, carefully check fixings are correctly located. Once satisfied, fully tighten all fixings. Back Front Shown upside down M6x32mm Small M6x52mm Small Machine Screw Qty 4 Machine Screw Qty 4...
- Page 12 Step 7 Assemble cup holder and control box to the underside of desk top using the fixings shown. Back Left holder Front Shown upside down Right Control panel M4x25mm Flat Head M6x12mm Large Screw Qty 3 Control Box Qty 1 Head Screw Qty 2 Cup Holder Qty 1...
- Page 13 Step 8 Ensuring the arrow label is facing towards the front as shown, assemble feet to leg frame Front Front Back Front Shown upside down M8x38mm Medium Machine Screw Qty 8 Allen Key Qty 1...
- Page 14 Step 9 Complete cable connections into the back of control panel as shown. Wireless Power Cord Charging Port Wireless Charger Power Motor Motor Cable WARNING! Do Not Connect to power source at this stage. Back Leg motor Power adapter Wireless Front charger Shown upside down...
- Page 15 Step 10 Two People Required. With help, turn the desk upright Warning - The desk is heavy. Lift with care. Locate accessory hooks into leg brackets . These can be located on either side. Turn foot adjusters to achieve a level stable position. Front Back Foot Adjustment Leveler...
- Page 16 Step 11 Plug power cable into power adapter Connect to mains power and switch on. Connect Power Cable to Power Adapter Back Front Factory reset is recommended before first use. (See Page 15 - Factory reset) Power Cable Qty 1...
-
Page 17: Operation
Operation Control Panel USB and USB-C R/H side of control panel 2 USB Ports Wireless Charger (1 Type A 5V2.4A,1 Type C 20V1A) While adjusting the height of your desk, the USB ports will pause charging until the height adjustment Wireless Charger process completes. - Page 18 If you have a wireless charging compatible device, please put the phone on the wireless charging indicator and check if the phone is successfully connected to the charging function. If not , move the mobile phone near the logo until the connection is successfully. Some phone cases may inhibit the wireless charging function or it’s efficiency It may be necessary to remove the phone case if difficulties are experienced.
- Page 20 After Sales Support / Product Returns...
